Eclipse LCD/Touchscreen Head Configuration
The LCD/Touchscreen Interface Board
LCD/Touchscreen Interface Board -003 - Connectors and Jumpers

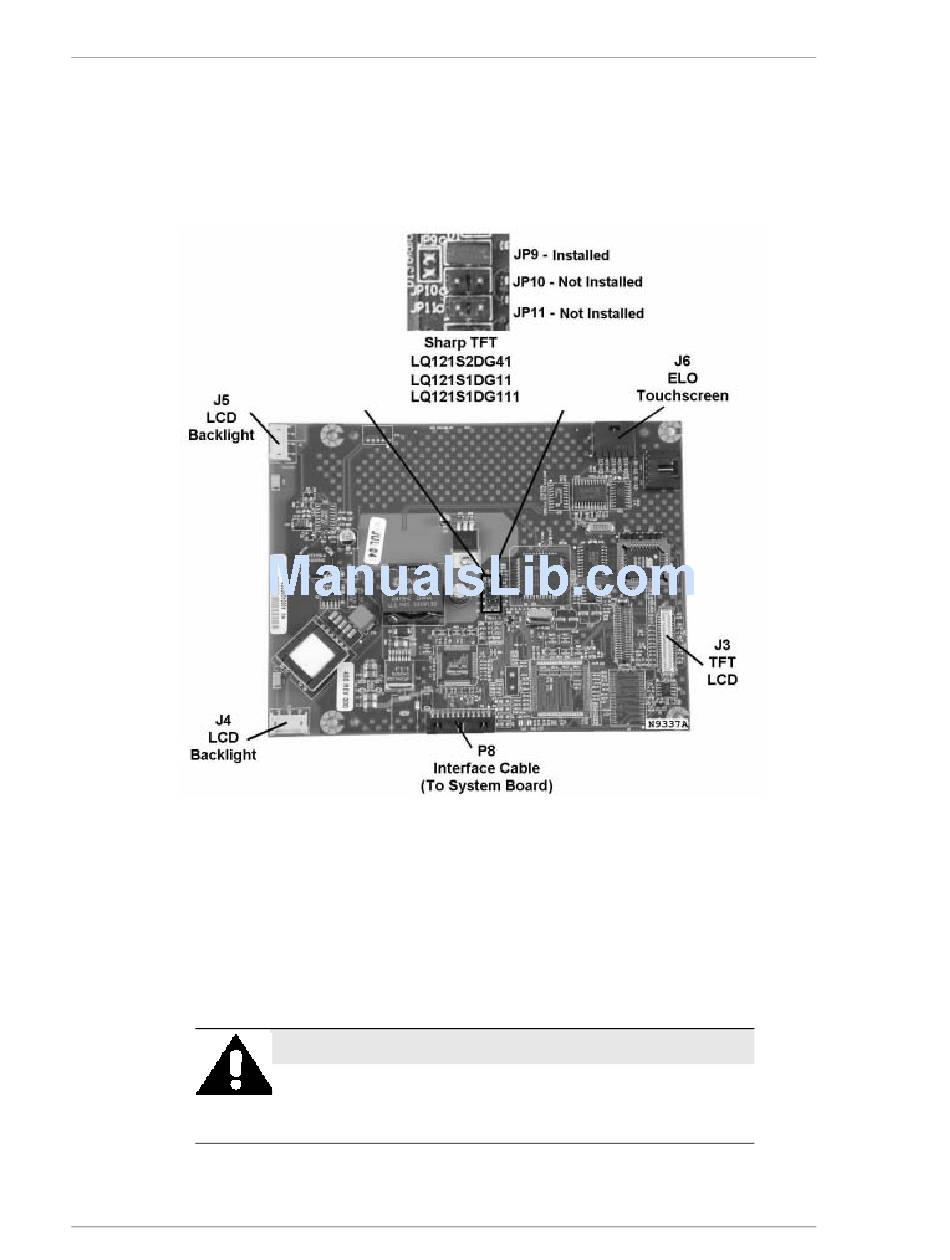

Figure 4-9 shows the connectors on the -003 Board. Note that the TFT LCD
jumper settings are different than the -001 interface board.
Figure 4-9:-003 LCD/Touchscreen Interface Board - Connectors and Jumpers
The -003 interface board is compatible with all Sharp TFT LCD panels shipped to
date as long the jumper setting shown above is used. Many VB12 interface boards
were shipped (as part of an Eclipse assembly or included in LCD/Touchscreen
Head spares P/N 400497-003) with JP11 installed, rather than JP9.
LCD/Touchscreen Heads with the correct jumper settings are labeled with P/N
400497-003A, rather than 400497-003.
4-10
CAUTION
If JP11 is installed, the drive current to the LCD backlights
exceeds the specified maximum. Make sure the jumper is
installed on JP9 on this board.
PCWS Eclipse Setup Guide
