7.
With a nibbling tool or large hobby knife, remove material from the left side of the
system unit cover where a cable must exit the workstation. Note the cover
material is reduced at the points outlined in white.
8.
To close the System Unit Cover, see page 3-36.
PCWS Eclipse Setup Guide

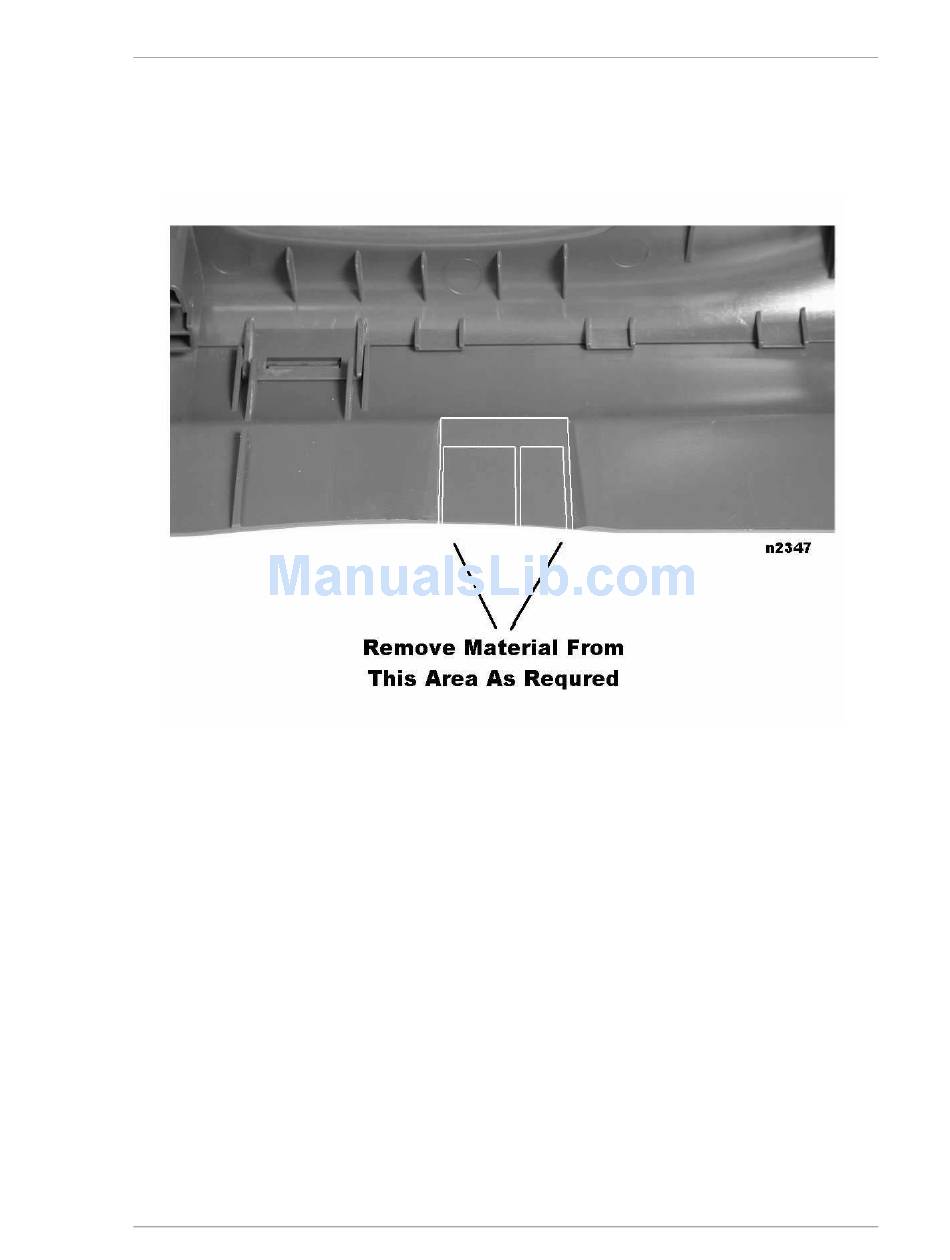

Figure 3-44: Modifying the System Unit Cover
PCWS Eclipse Hardware Configuration
Installing a PCMCIA Card
3-31
