What Is The Eclipse Workstation?
The I/O Panel

Cash Drawers 1 and 2

These connectors support standard and low profile MICROS cash drawers with DIN
style connectors.

Remote Display

This connector supports a pole mount Remote Customer Display. This display
contains a two line display with 20 characters on each line. The display can be
mounted up to 6 feet from the workstation.

+24V Printer Power

This connector provides +24V to power a single printer such as the U220 or TMT-88.
A 24 inch version of this cable is currently available, with extended versions planned
for the near future. Figure 1-7 shows how to install the external cable.
In late 2004, the internal power supply to front panel cable has been modified to
include a 4A, 125V Axial Lead fuse in series with the +24VDC line.

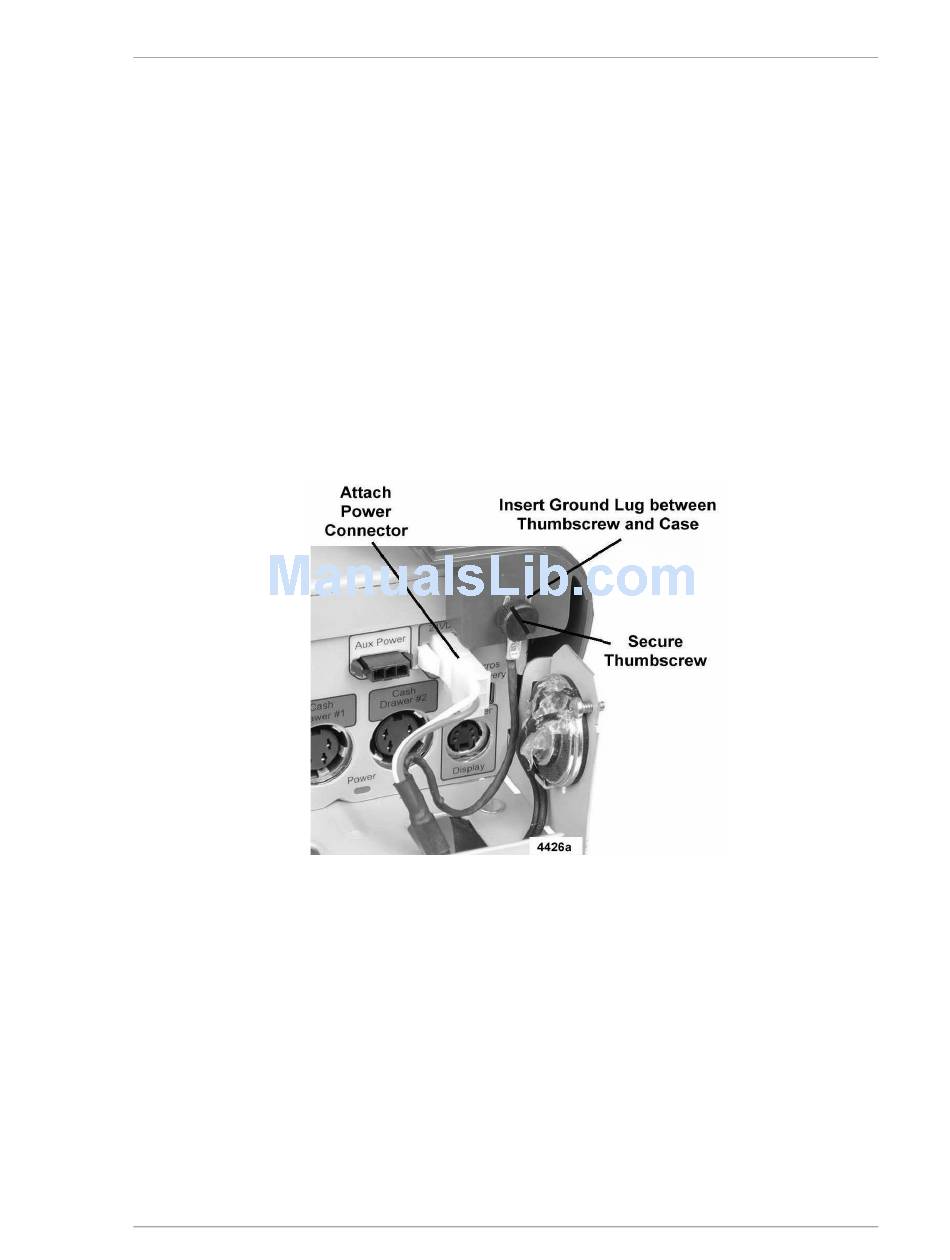

Figure 1-7: Connecting the Printer Power Cable to the Eclipse

Auxiliary Power Connector

This connector appears in units assembled after September 2001. It provides both +5V
and +12V for use by a future product such as a Smart Card Reader or Magnetic Card
Reader/Writer.
A pin diagram of this connector can be found in Appendix.
In late 2004, the system board to front panel cable has been modified to include a pair
of 5A, 125V, Axial Lead picofuses (Littlefuse R251005) in series with the +5VDC
and +12VDC outputs.
PCWS Eclipse Setup Guide 1-17
