5.
Insert the customer display and bracket into the chassis slots as shown in Figure
3-17.

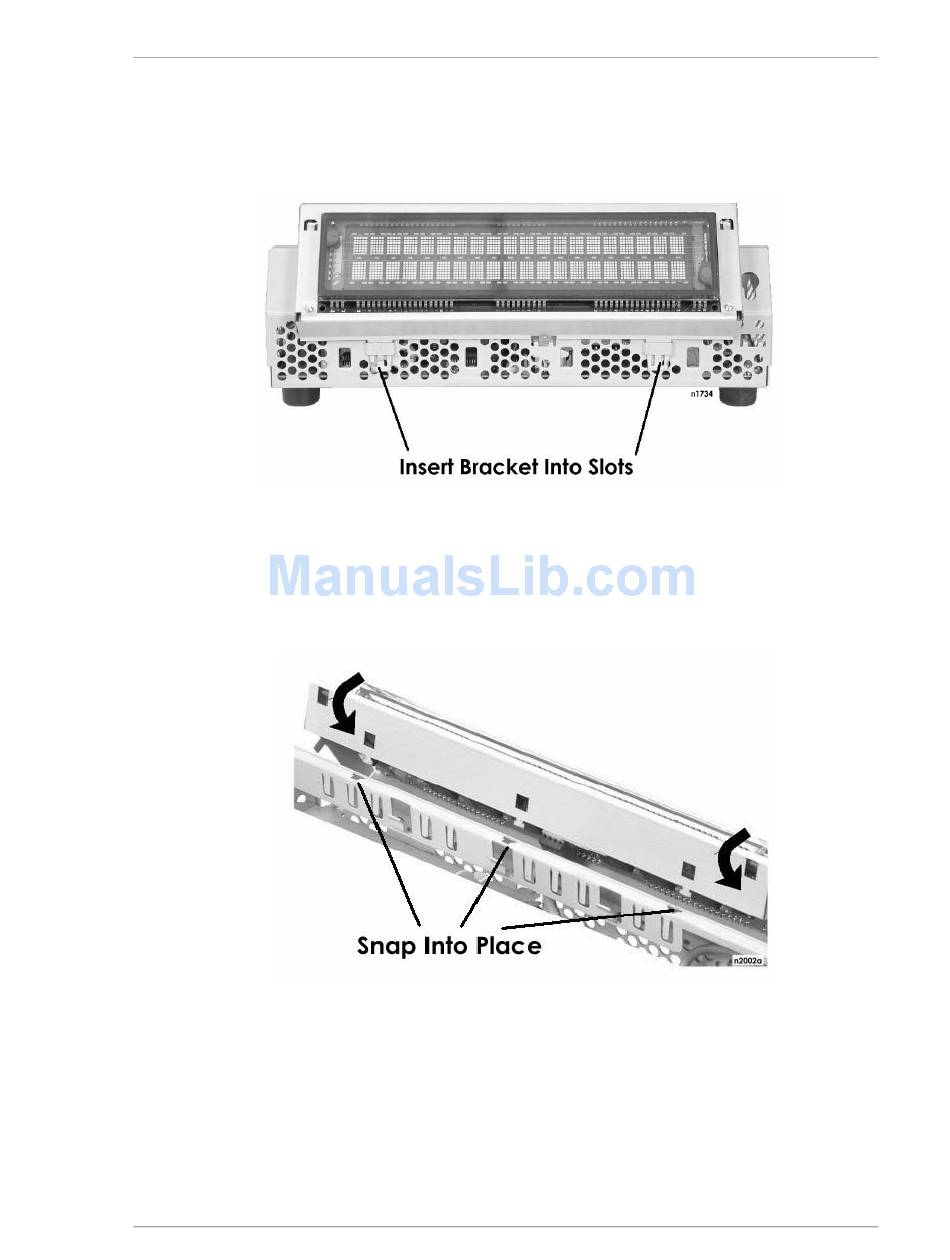

Figure 3-17: Inserting the Customer Display Bracket into the Chassis
6.
Rotate the customer display bracket towards the chassis until it snaps into place.
Figure 3-18. You may have to squeeze the top of the bracket to line it up with the
holes in the top of the chassis.
Figure 3-18: Attaching the Customer Display Bracket to the Chassis
7.
To close the System Unit cover, see page 3-36.
