3.
Make sure each retaining clip is in the open position. Figure 3-31. Note the
location of the notches on the DIMM edge connector, and the corresponding lands
on the connector. Place the DIMM in the socket. Firmly press down on each end
of the DIMM. As you press down, the retaining clips will lock the DIMM in
place.

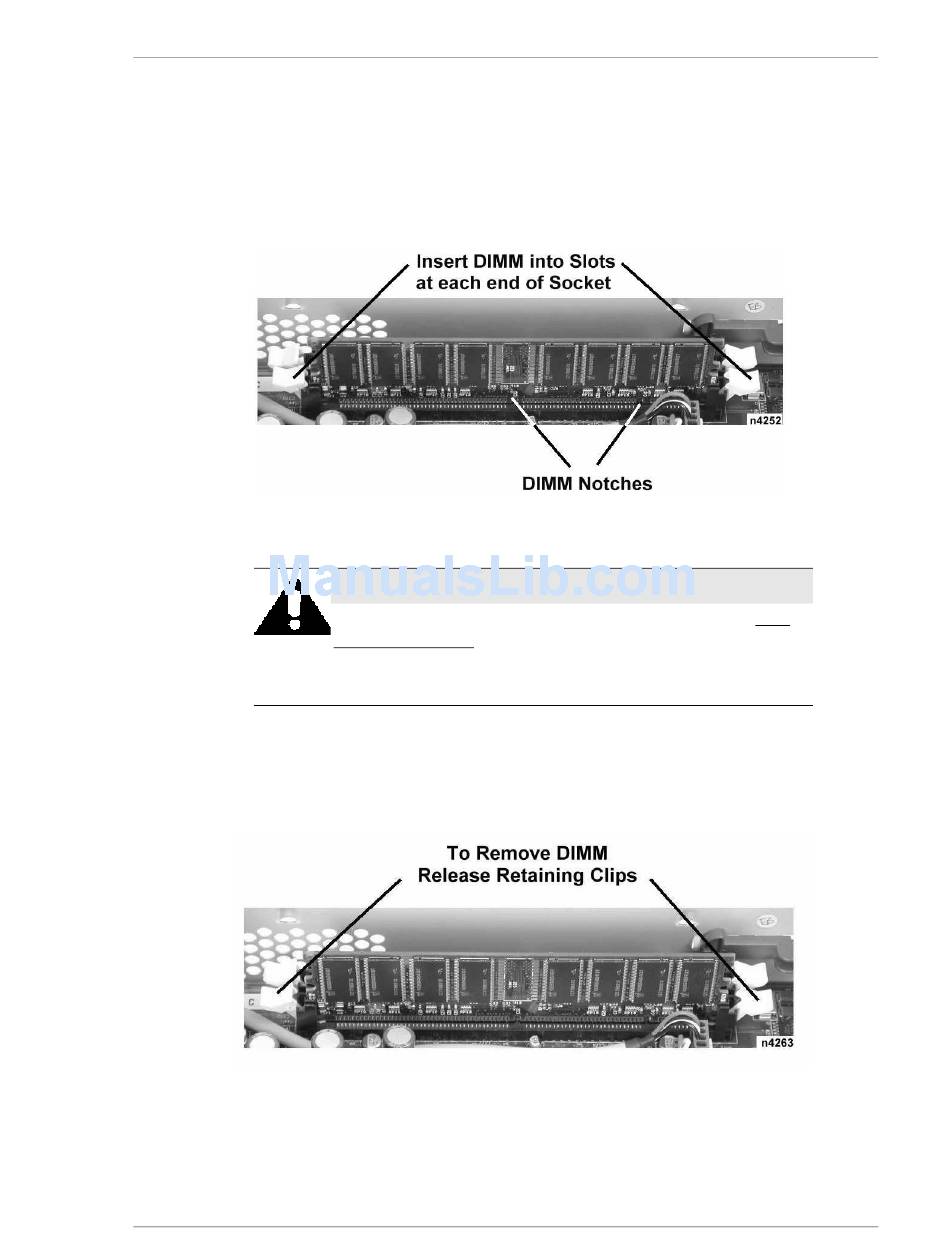

Figure 3-31: Lining up the DIMM with the Socket
Remove a DIMM
1.
Rotate each retaining clip away from the DIMM. As you remove each end, the
DIMM will lift out of the socket. Figure 3-32.
2.
To close the System Unit cover, see page 3-36.
PCWS Eclipse Setup Guide
CAUTION:
If you encounter resistance when installing the DIMM, DO
NOT FORCE IT. Damage to the socket could result. Refer to
Figure 3-31 and check the notches on the connector of the
DIMM to ensure you are installing the correct type of device.
Figure 3-32: Removing a DIMM
PCWS Eclipse Hardware Configuration
Remove/Replace DIMMs
3-23
