10.
Remove the two thumbscrews that fasten the system unit cover to the chassis by
turning them in the direction shown in the Figure below.

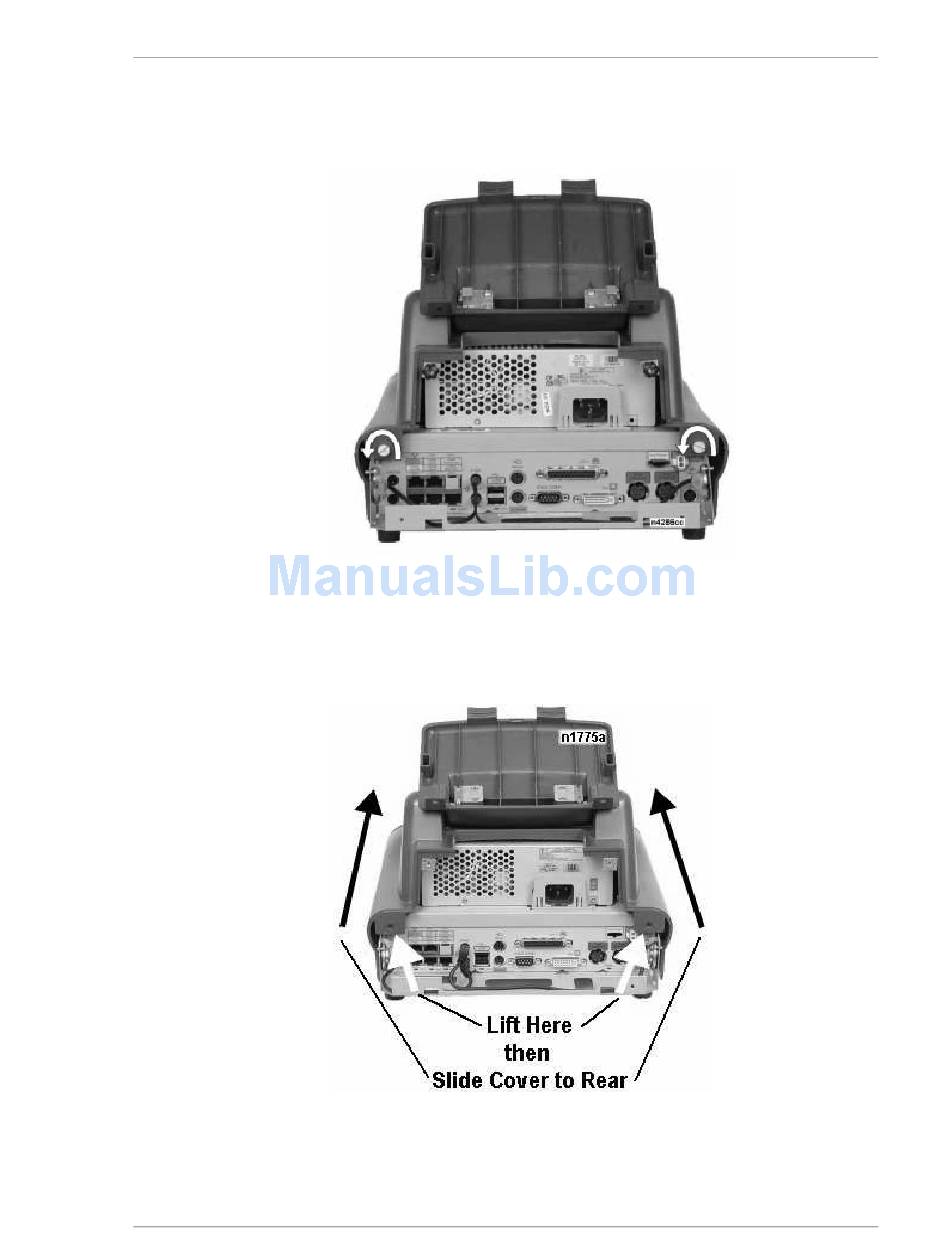

Figure 3-7: Remove the System Unit Cover Thumbscrews
11.
Remove the system unit cover. Lift the front of the cover from the chassis and
power supply, then slide it towards rear as shown in Figure 3-8
PCWS Eclipse Setup Guide
Figure 3-8: Removing the System Unit Cover
PCWS Eclipse Hardware Configuration
Disassembling the Eclipse
3-5
