11.
Attach the cable from the LCD/Touchscreen head to the Eclipse DVI connector as
shown. Turn the screws clockwise to fasten, but do NOT overtighten them. Figure
3-57.

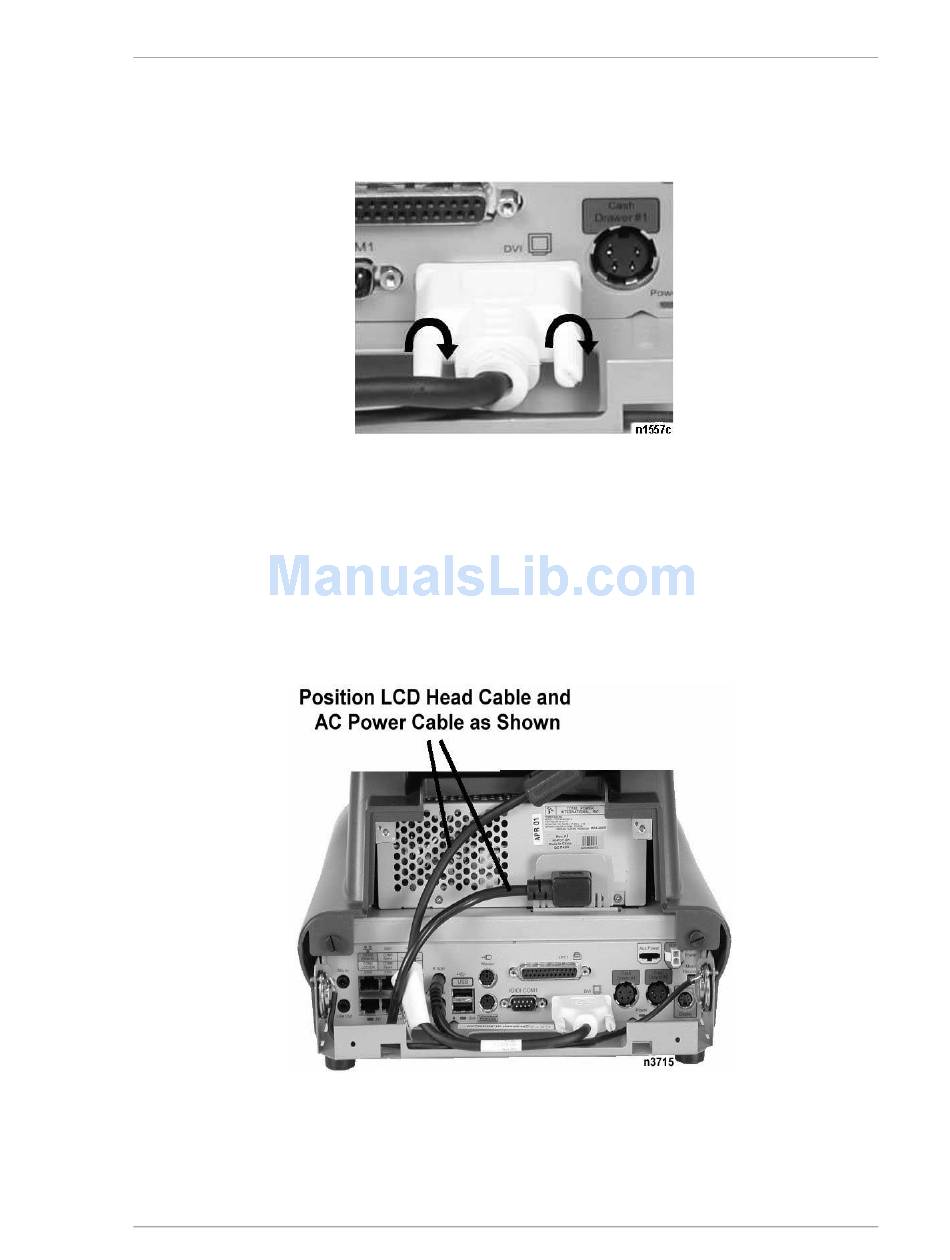

Figure 3-57: Attaching the DVI Connector to the Front Panel
12.
Check the power supply. If you see a red slide switch located near the AC
receptacle, it must be set to match the incoming AC voltage. If the switch is not
present, the power supply will automatically adapt to the incoming AC voltage.
13.
Run the AC Power cord through the access hole on the left of the chassis and
connect it to the AC receptacle. Check Figure 3-58 and position both the AC and
LCD Head cables as shown to avoid interference with the smart card tray when
you install the MCR cover.
PCWS Eclipse Setup Guide
Figure 3-58: Connecting the AC Power Cord
PCWS Eclipse Hardware Configuration
Re-assembling the Eclipse
3-41
