5.
Power supplies shipped since August 2001 include a universal input. However, if
you see a red slide switch located near the AC input receptacle, it must be set to
match the incoming AC voltage.
6.
Reconnect the hard disk power connector as shown in Figure 3-21, attach the
foam ears, then reinstall the hard disk in the bracket

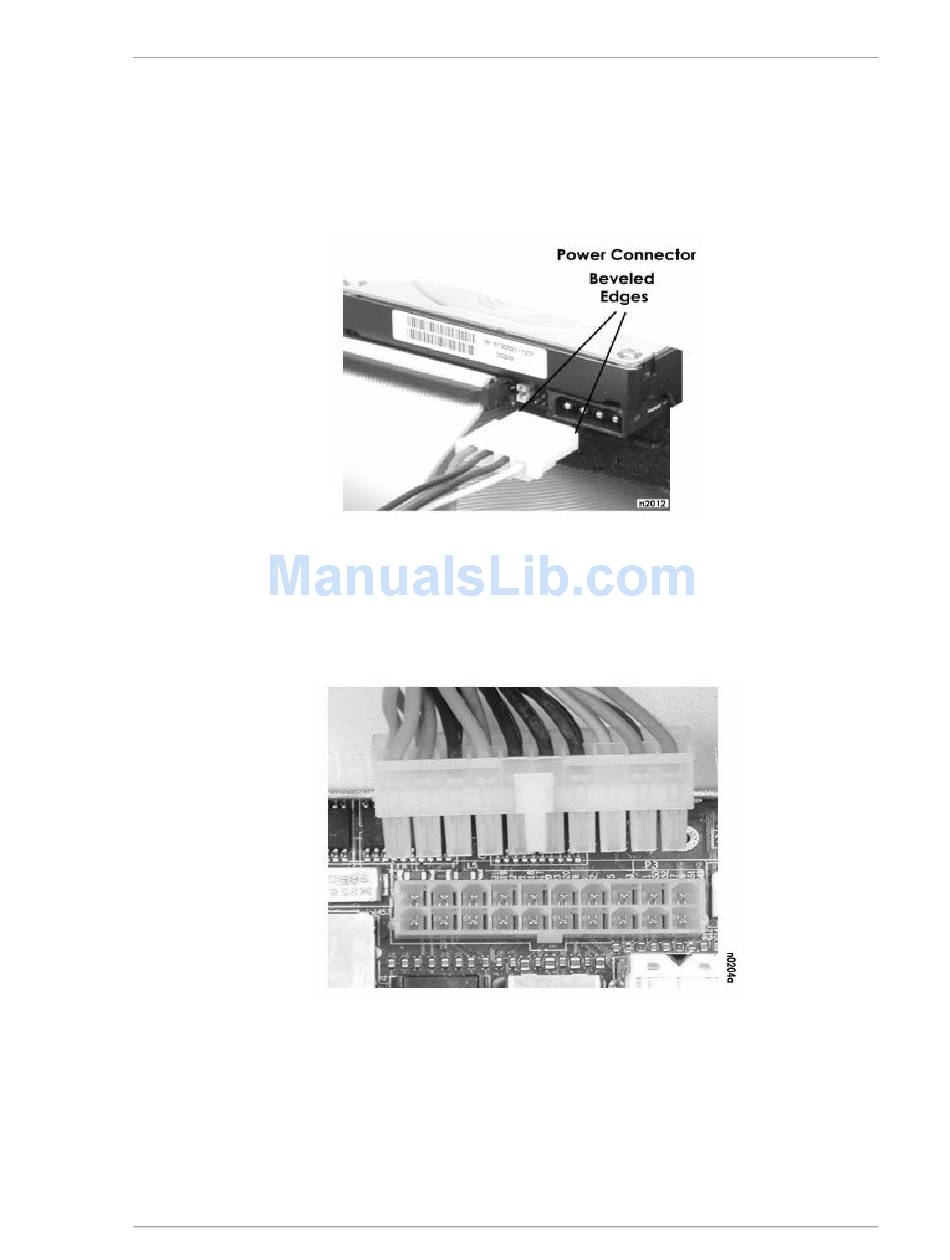

Figure 3-21: Reconnecting the Hard Disk Power Connector
7.
Attach the Power Supply to the system board power connector. Figure 3-22 shows
how the ATX style connector is oriented. Push down on the body of the connector
until the latch snaps into place.
Figure 3-22: Connecting the ATX Power Connector
8.
Push the printer power connector though the cutout from behind until it snaps into
place.
9.
To close the cover, see page 3-36.
PCWS Eclipse Setup Guide
PCWS Eclipse Hardware Configuration
Remove/Replace Power Supply
3-17
