PCWS Eclipse Hardware Configuration
Remove/Replace the System Processor
3.
Press down on the hinged end to release the clip from the processor socket, then
remove the heatsink.
4.
Pull the release handle away from the socket, then rotate it 90 degrees to a vertical
position as shown in the lower half of Figure 3-36.

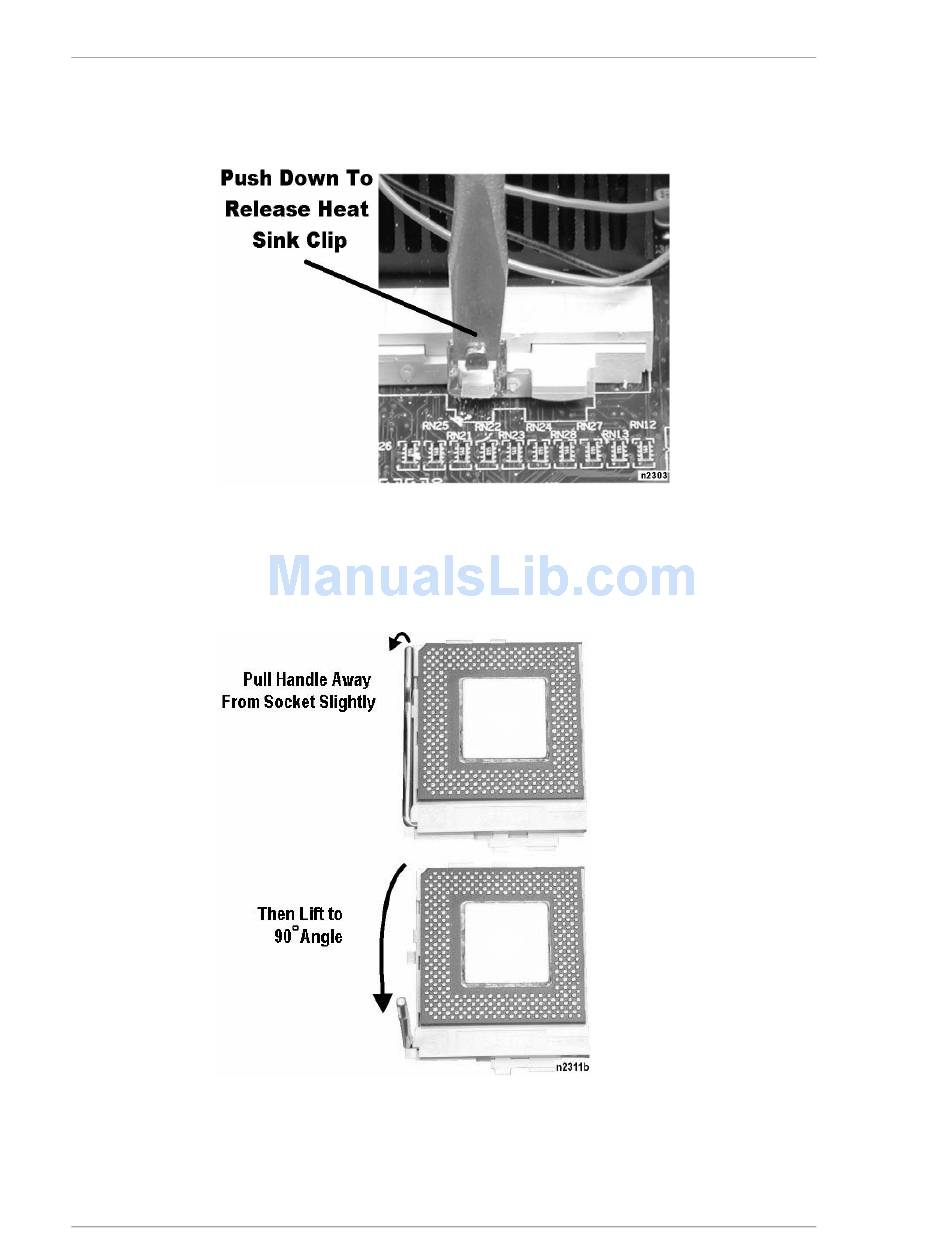

Figure 3-36: Removing the Processor from the Socket
5.
Carefully remove the processor from the socket.
3-26
Figure 3-35: Removing the Heat Sink Clip
