PCWS Eclipse Hardware Configuration
Disassembling the Eclipse
Removing the Eclipse 15" LCD/Touchscreen Head
The 15" LCD/Touchscreen Head assembly is not mounted to the pedestal with
thumbscrews. A procedure for removing the 15" LCD/Touchscreen head is provided
below. The MCR cover and DVI connector have already been removed.
12.
Refer to Figure 3-7 on page 3-5 to remove the system unit cover thumbscrews.
13.
With the 15" LCD/Touchscreen head attached to the system unit plastic cover,
refer to Figure 3-8 and remove the entire assembly.
14.
Place the 15" LCD/Touchscreen and pedestal assembly face down on a protected
work surface.
15.
To remove the 15" LCD/Touchscreen Head from the pedestal, refer to Figure 3-9
to remove the plastic cover. Remove the four screws that fasten the 15" LCD
Head to the metal backing plate.

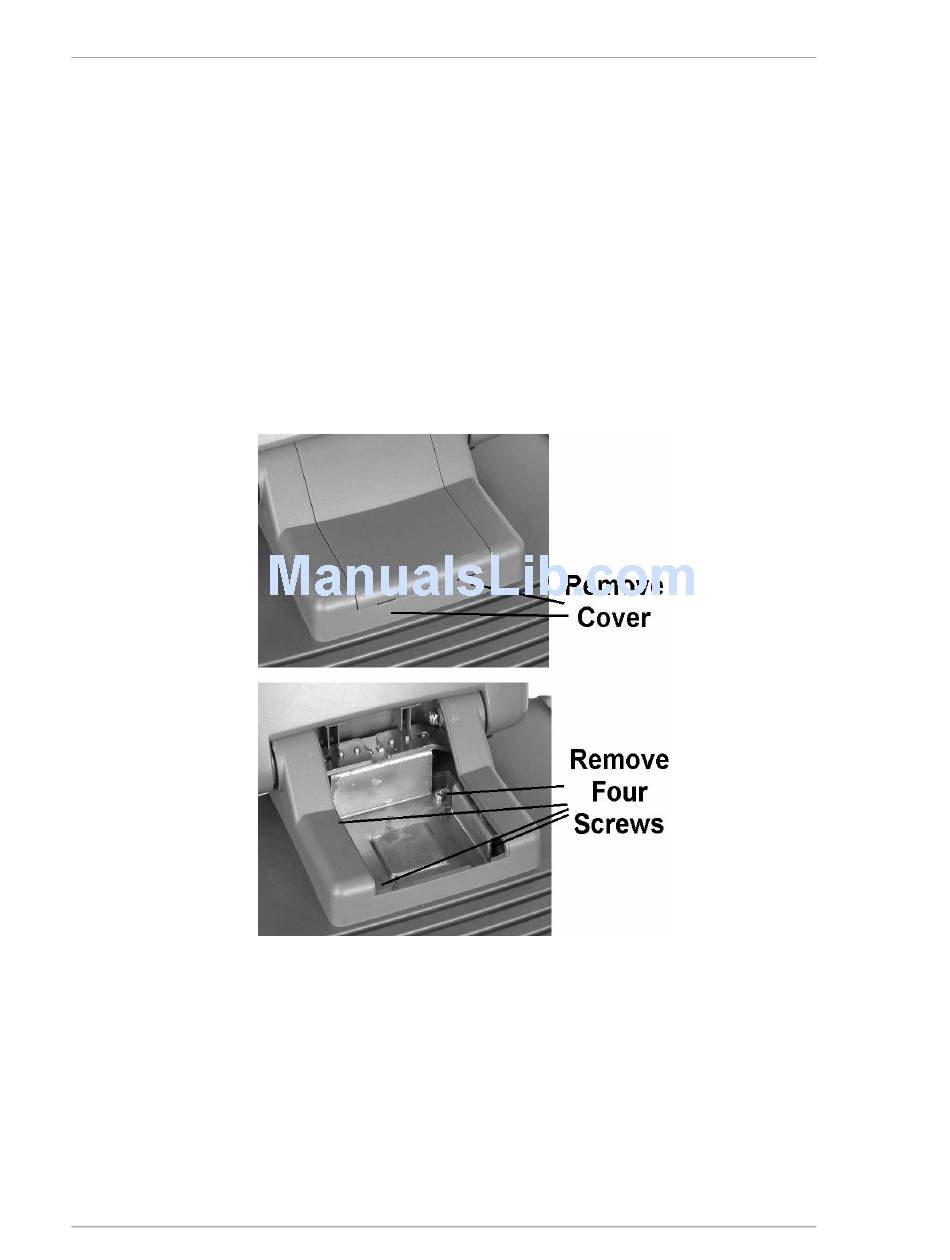

Figure 3-9: Removing the 15" LCD/Touchscreen Head from the Pedestal
3-6
PCWS Eclipse Setup Guide
