PCWS Eclipse Hardware Configuration

Remove/Replace the Customer Display

Remove/Replace the Customer Display

This procedure describes how to remove and replace an existing customer display.
1.
Refer to page 3-2 to disassemble the Eclipse Workstation if you have not done so
already.
2.

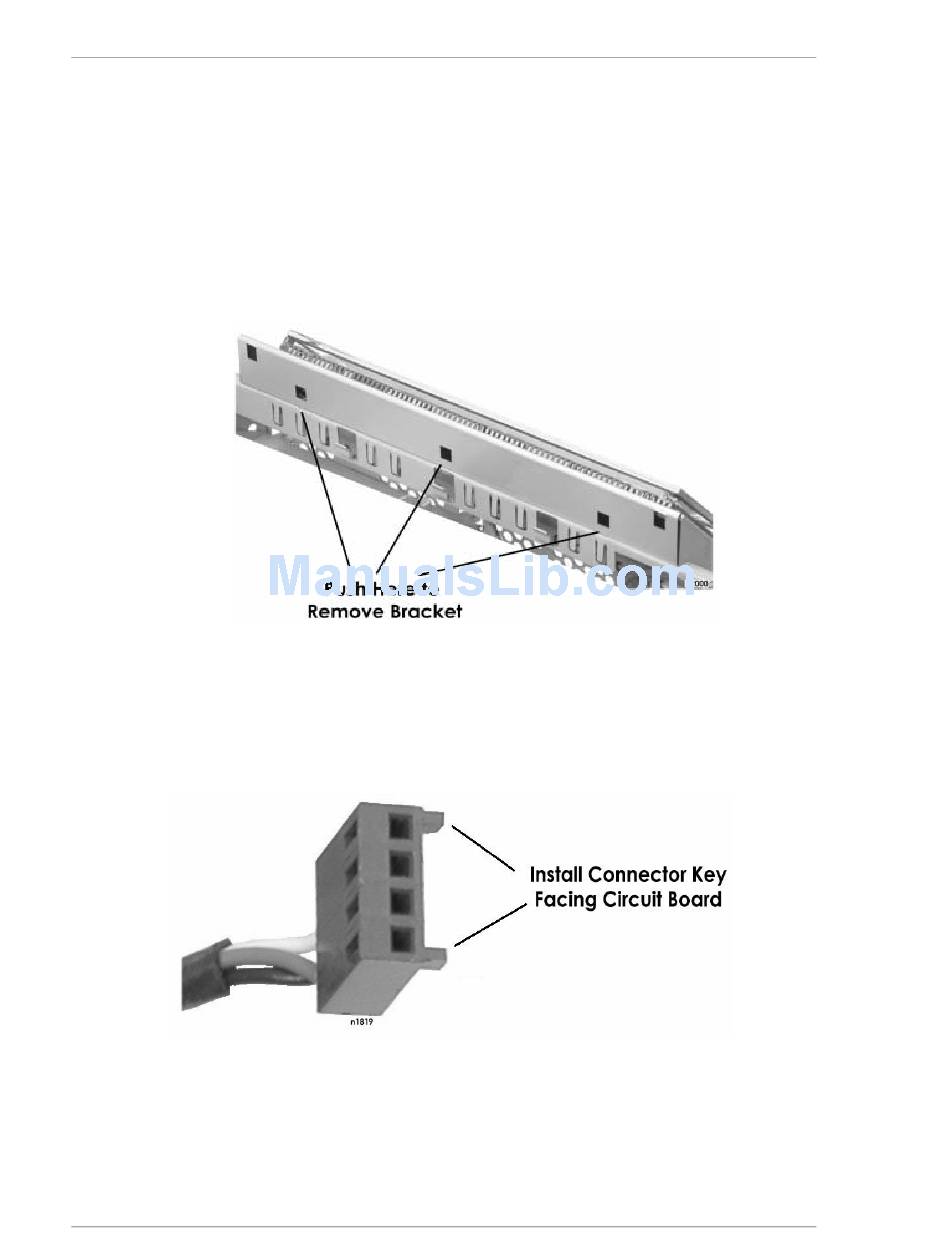

Examine Figure 3-15 and push on the rear display bracket at the three points
indicated to release it from the chassis. Rotate the bracket away from the chassis
slightly, then lift up to access the connector.
Figure 3-15: Removing the Customer Display Bracket
3.
Remove the connector attached to the customer display board.
4.
Position the replacement customer display near the chassis and attach the
connector to the customer display board. Figure 3-16.
Figure 3-16: Installing the Customer Display Cable
3-14
PCWS Eclipse Setup Guide
