RS232 Connector
A single DB9F RS232 connector is provided for connecting an external modem. It is
assigned to COM1.
USB Connectors
A pair of USB ports are provided on the Eclipse front panel, shown in Figure B-7,
below.

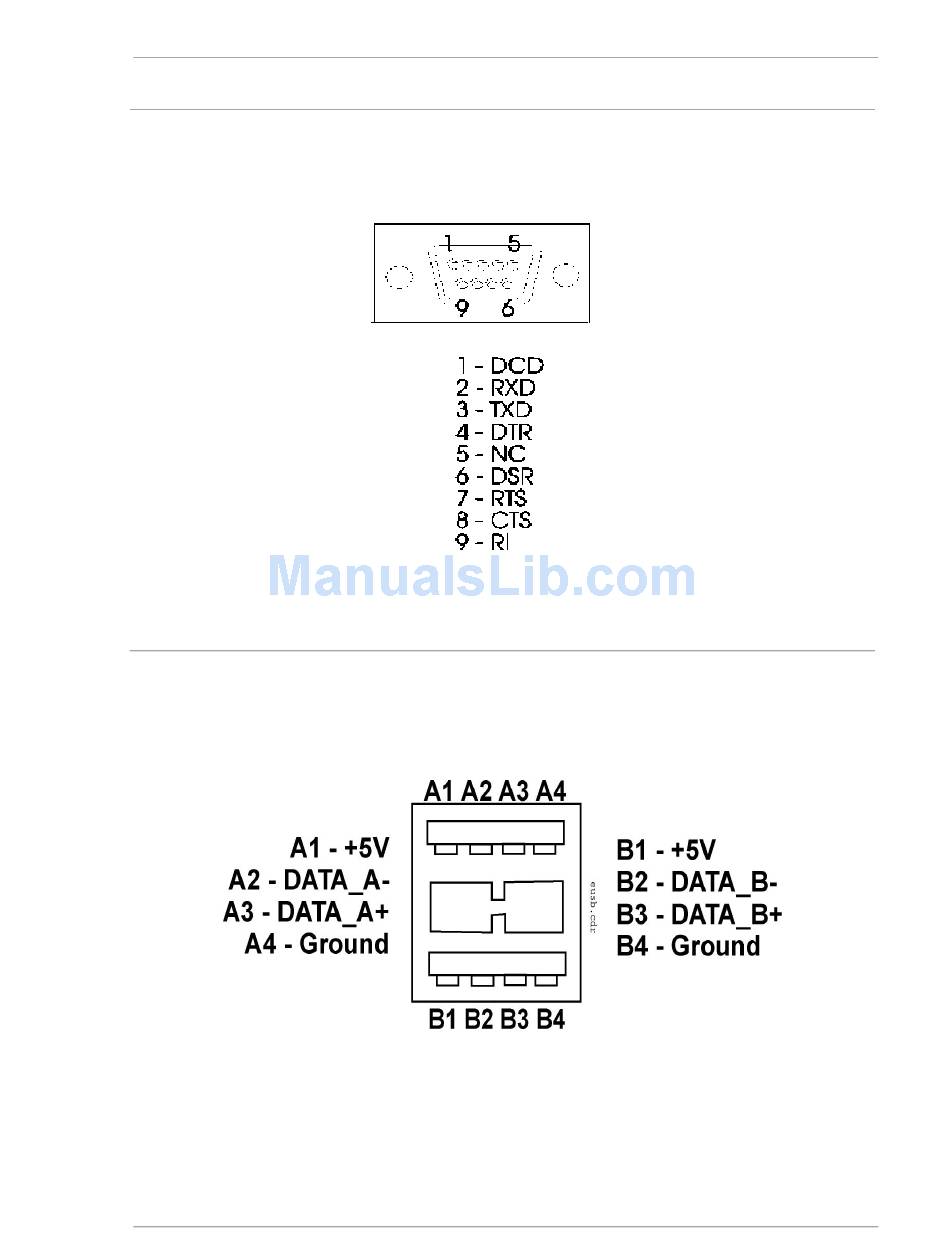

Figure B-7: Universal Serial Bus Connector Diagram
PCWS Eclipse Setup Guide
Figure B-6: DB9 RS232 Connector Diagram
Connector and Cable Diagrams
Front Panel Connectors
B-5
