PCWS Eclipse Hardware Configuration
Re-assembling the Eclipse
Installing the MCR Unit
When all cables are attached to the Eclipse Front IO Panel, the following procedure
describes how to attach the Eclipse Front Cover.
1.
Before attaching the front cover, refer to Figure 3-59 and make sure the mag card
reader cable is inserted in the strain relief as shown.
2.
Attach the modular plug from the mag card reader to the modular connector on the
lower right of the modular connector block as shown in Figure 3-60. Push the
modular plug into the connector until it snaps into place.
3-42

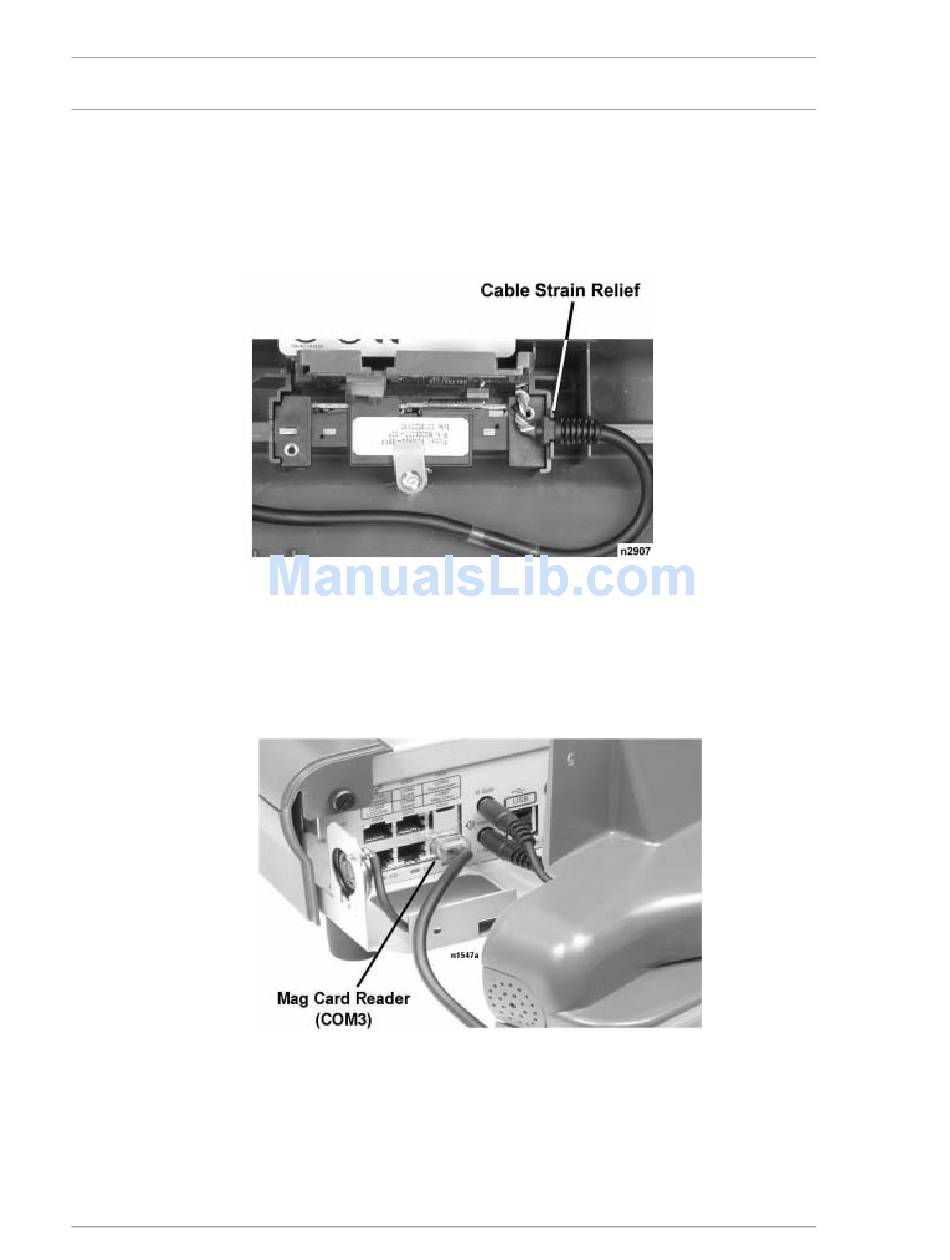

Figure 3-59: Using the Cable Strain Relief
Figure 3-60: Connecting the Mag Card Reader
PCWS Eclipse Setup Guide
