LCD/Touchscreen Interface Board -002 (DSTN LCD - MicroTouch TSC)
Figure 4-6 shows the component layout of a -002 board. This board supports a single
DSTN LCD panel specified in Figure 4-7, and requires MicroTouch TouchWare
drivers on the Eclipse System Unit. DSTN LCD panels are no longer available, but
included here for reference.

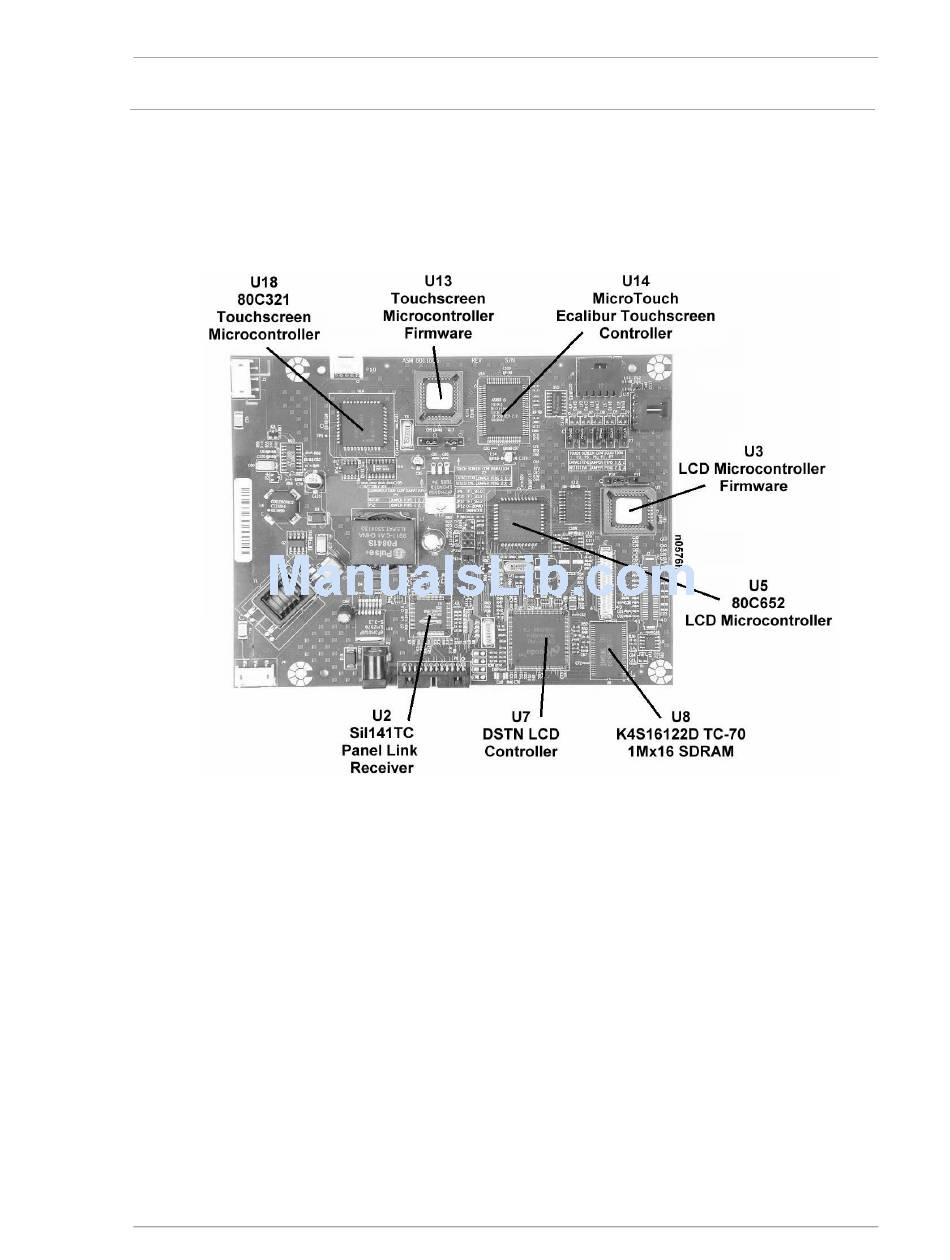

Figure 4-6: The -002 LCD/Touchscreen Interface Board (DSTN LCD Only)
To support the DSTN LCD panel, the -002 board adds U7, a Geode family DSTN
LCD Controller and frame buffer RAM U8.
PCWS Eclipse Setup Guide
Eclipse LCD/Touchscreen Head Configuration
The LCD/Touchscreen Interface Board
4-7
