Using the 15" LCD/Touchscreen Head Controls

The 15" LCD/Touchscreen head includes a set of controls located along the right side
of the display housing. They provide access to the On Screen Display (OSD) menu
and power/on off functions. By default, these controls are disabled, but can be enabled
by using the instructions below.
The Power On/Off button allows the 15" LCD/Touchscreen Head to be powered down
independently of the Eclipse system unit.
The On Screen Display menu provides access to brightness and contrast controls, and
other display related functions.
Figure 1-12, below, shows how to enable the Power On/Off button and On Screen
Display.

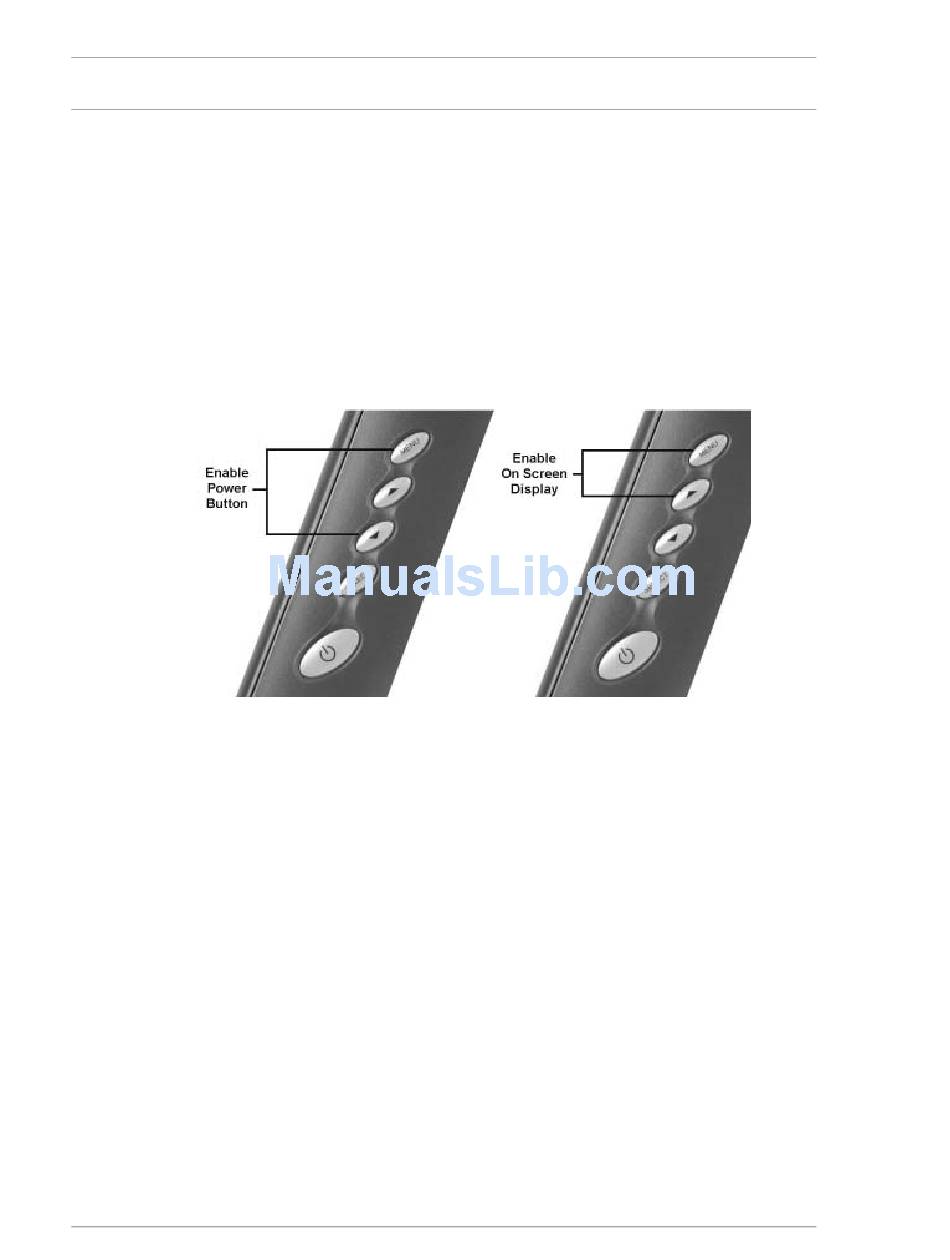

Figure 1-12: Enabling the Power Button and OSD Controls
To enable the Power On/Off button, simultaneously press and hold the MENU and
Down Arrow buttons as shown at the left of the illustration.
A window appears and displays the message "Power Unlock" to indicate the
o
Power On/Off button is enabled. If you continue to hold the MENU and
Down Arrow buttons, the message toggles between "Power Unlock" and
"Power Lock."
To enable the On Screen Display menu, simultaneously press and hold the MENU
and Down Arrow Keys.
When the OSD appears, use the Up or Down Arrow buttons to select an item
o
from the menu, then press SELECT. Use the Up or Down Arrow buttons to
adjust your selection, then press SELECT when complete.
