Eclipse LCD/Touchscreen Head Configuration
The LCD/Touchscreen Interface Board
LCD/Touchscreen Interface Board -001 - Connectors/Jumpers
Figure 4-5 below, shows the -001 board connectors and TFT LCD Jumper
settings.

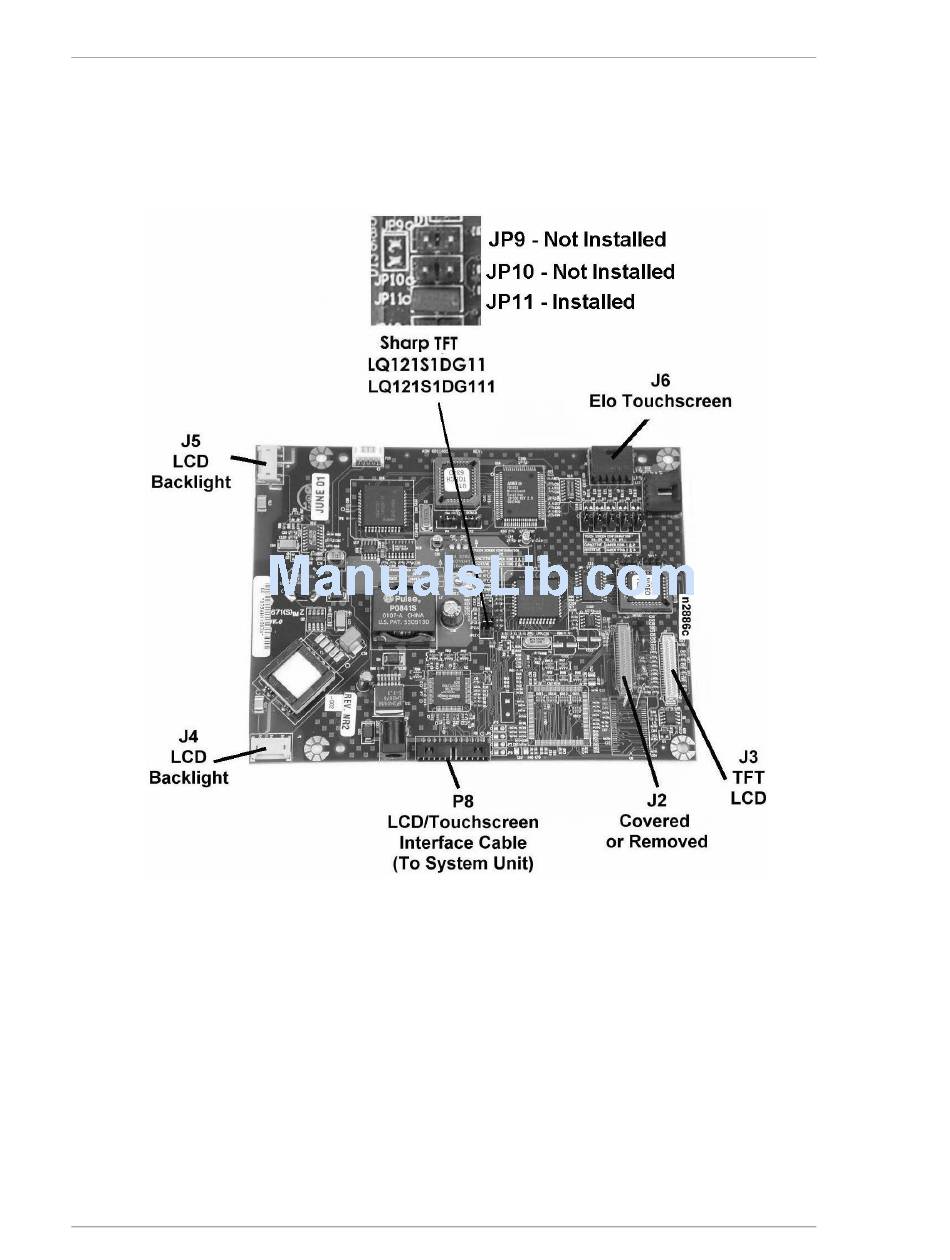

Figure 4-5: -001 LCD/Touchscreen Interface Board - Connectors and Jumpers
The -001 LCD/Touchscreen Interface Board is capable of driving the Sharp
LQ121S1DG111 and DG11 LCD panels, with a single jumper installed in JP11.
However, if this interface board is used with a Sharp LQ121S1DG41 LCD Panel,
move the jumper from JP11 to JP9.
4-6
PCWS Eclipse Setup Guide
