Eclipse LCD/Touchscreen Head Configuration

Disassembling the 12.1" LCD/Touchscreen Head

Disassembling the 12.1" LCD/Touchscreen Head
This section first describes how to disassemble the LCD head to gain access the
LCD/Touchscreen Controller board.
Following sections describe the LCD/Touchscreen Interface Board and its variations,
along with jumper settings for current LCD panels.

Removing the Rear Cover and Interface Board Shield

1. Place the LCD/Touchscreen Head face down on your work surface.
2. Refer to Figure 4-1 and with a small flat bladed screwdriver, gently pry the rear
cover open at the locations indicated.

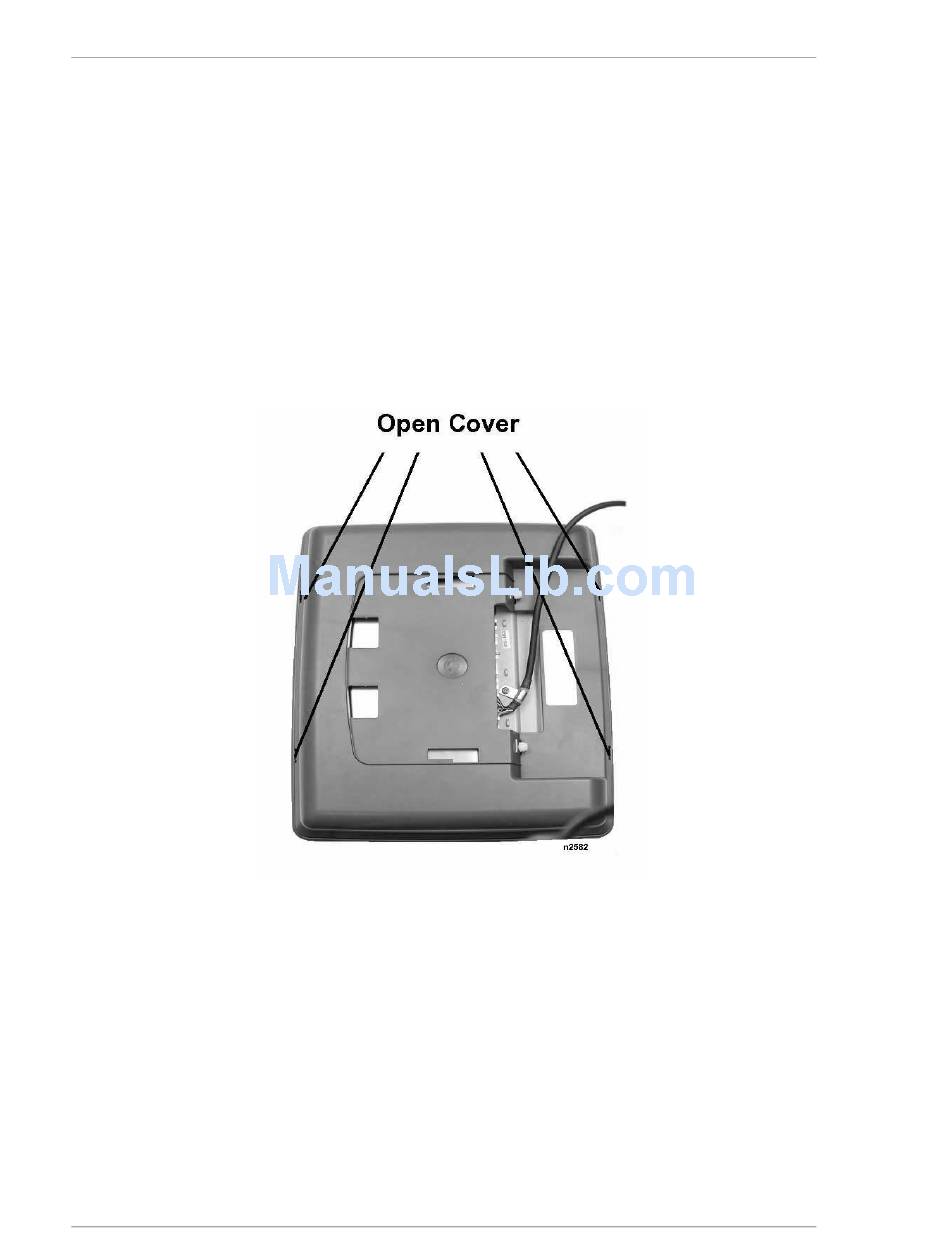

Figure 4-1: Removing the LCD/Touchscreen Head Cover
The LCD/Touchscreen Interface Board is installed under a shield which must be
removed to access the interface board.
4-2
PCWS Eclipse Setup Guide
