What Is The Eclipse Workstation?
Connecting Peripherals to the Eclipse
Connecting the Eclipse to a LAN
Figure 1-8 shows the Eclipse Ethernet connector located on the upper left of the
Modular connector block.

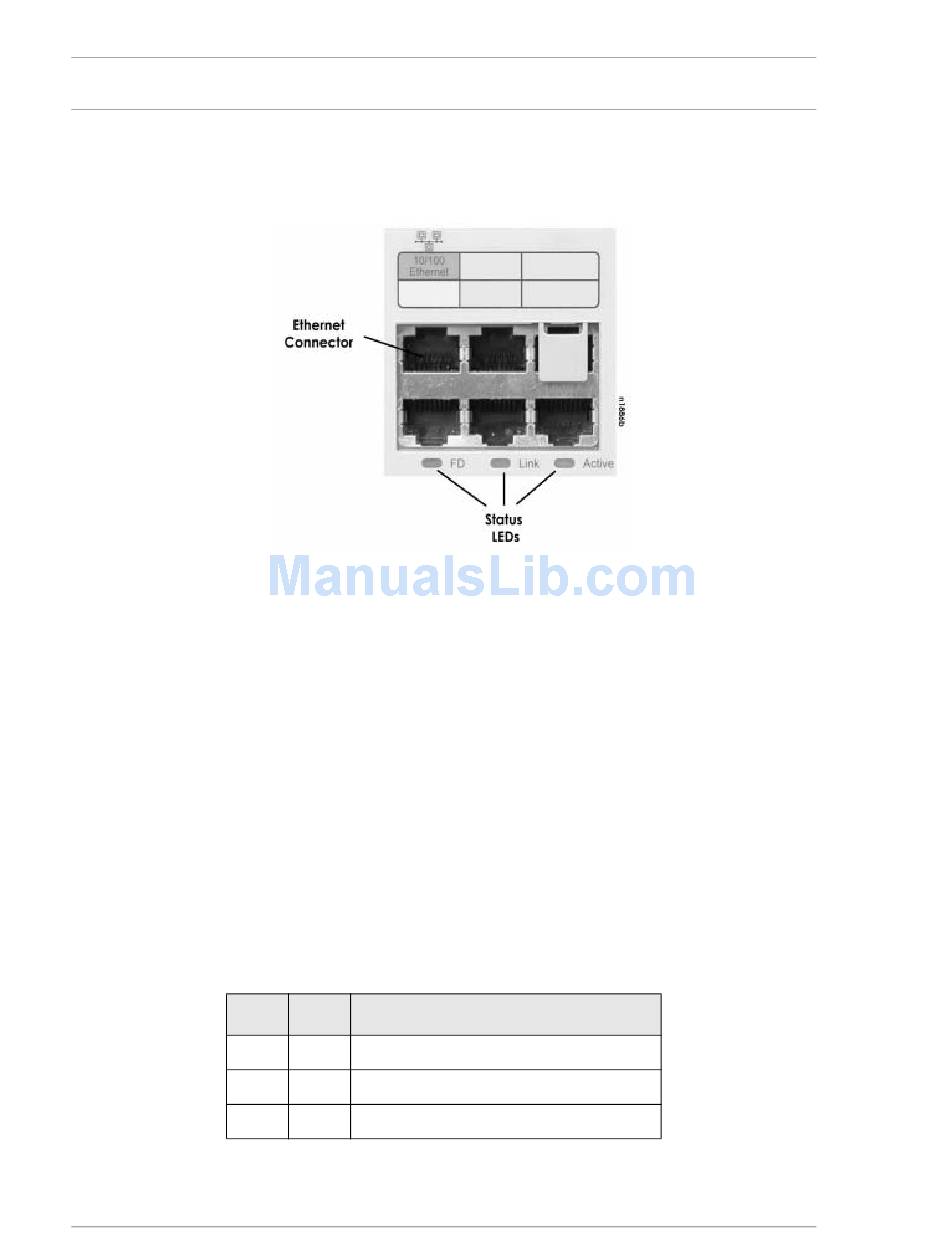

Figure 1-8: The Ethernet Connector and Status LEDs
When you attach the Eclipse to a LAN, the three status LEDs shown at the lower half
of Figure 1-8 provide the connection status. The table in Figure 1-9 summaries the
function of each LED.
Link
The Link LED, when ON, indicates that the workstation is physically connected to a
device such as a hub or patch panel.
FD (Full Duplex)
When the Link LED is ON, the FD LED indicates if the Eclipse is connected to a full
or half-duplex LAN. The operation of the Link and FD LEDs is summarized in the
table below.
Active
The Active LED indicates that information is being written to or read from the Eclipse
Workstation over the LAN.
LINK
ON
ON
OFF
1-20
FD
ON
Full Duplex Connection = 100 Mbps
OFF
Half Duplex Connection = 10 Mbps
OFF
No Connection
Figure 1-9: The Eclipse LINK and FD LEDs
Status
PCWS Eclipse Setup Guide
