3.
The Disk On Chip socket is U33, located on the rear left corner of the system
board. Note the Pin-1 orientation of the DOC and carefully insert the device in the
socket as shown in Figure 3-46.
4.
Reinstall the hard disk bracket, screw and hard disk, if required. Figure 3-47,
shows how to orient Pin-1 of the ribbon cable and the mounting points for the hard
disk bracket.
5.
To close the System Unit Cover, see page 3-36.
6.
Proceed to the next page to configure the Disk On Chip.
PCWS Eclipse Setup Guide

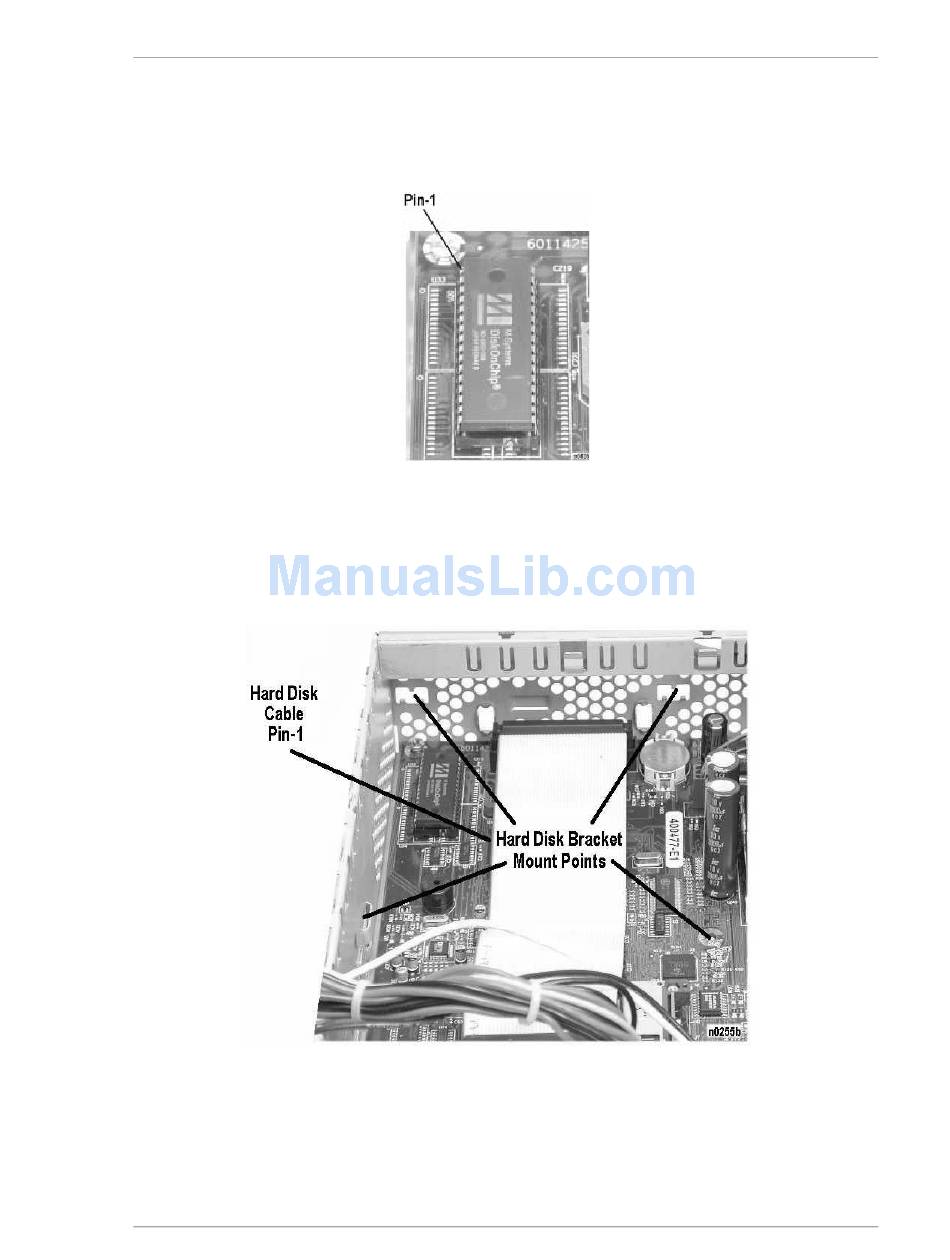

Figure 3-46: Installing the Disk On Chip Option
Figure 3-47: Installing the Hard Disk Bracket
PCWS Eclipse Hardware Configuration
Installing a Disk On Chip
3-33
