Disassembling the Eclipse

Disassembling the Eclipse

The following procedure describes how to disassemble a complete workstation in
order to access the system unit components.
1.
Remove the thumbscrews that hold the cover in place. Figure 3-1

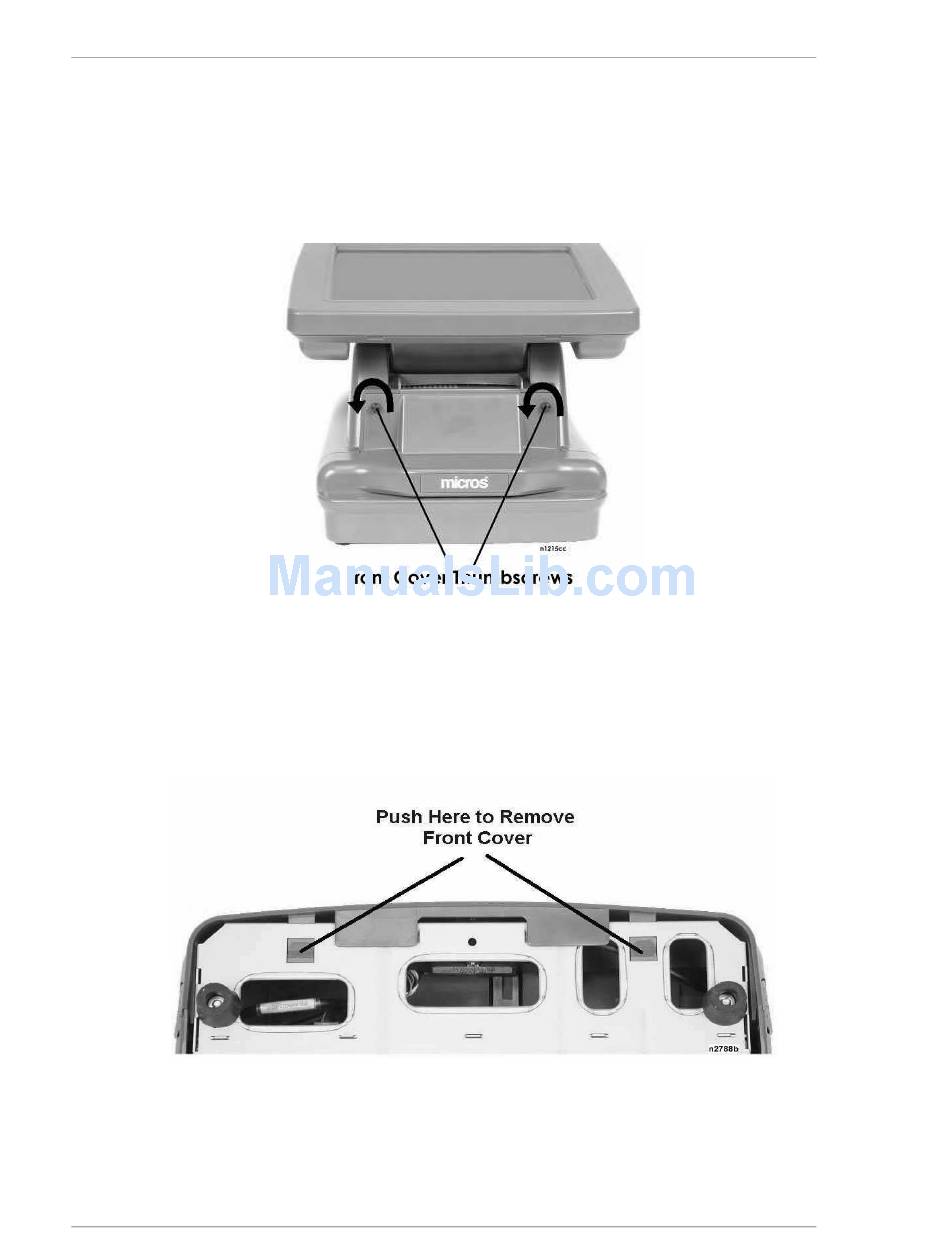

Figure 3-1: Removing the Front Cover Thumbscrews
2.
Figure 3-2 shows the bottom of the Eclipse chassis and points out the release
points for the Front Cover. However, you need not stand the unit on end. Simply
stand directly in front of the Eclipse, reach under the chassis and press these clips
to loosen the front cover.
3-2
Figure 3-2: Removing the Eclipse Front Cover
PCWS Eclipse Setup Guide
