Eclipse LCD/Touchscreen Head Configuration
The LCD/Touchscreen Interface Board
LCD Touchscreen Interface Board -003 (TFT LCD - Hampshire TSHARC TSC)
Figure 4-8 shows a component layout of the -003 Board. This board supports the TFT
LCD Panels shown in Figure 4-9, but uses a Hampshire TSHARC Touchscreen
Controller. The Hampshire touchscreen controller replaces the end-of-life
MicroTouch Excalibur touchscreen controller. This new controller is not compatible
with the MicroTouch TouchWare drivers installed in most field units.

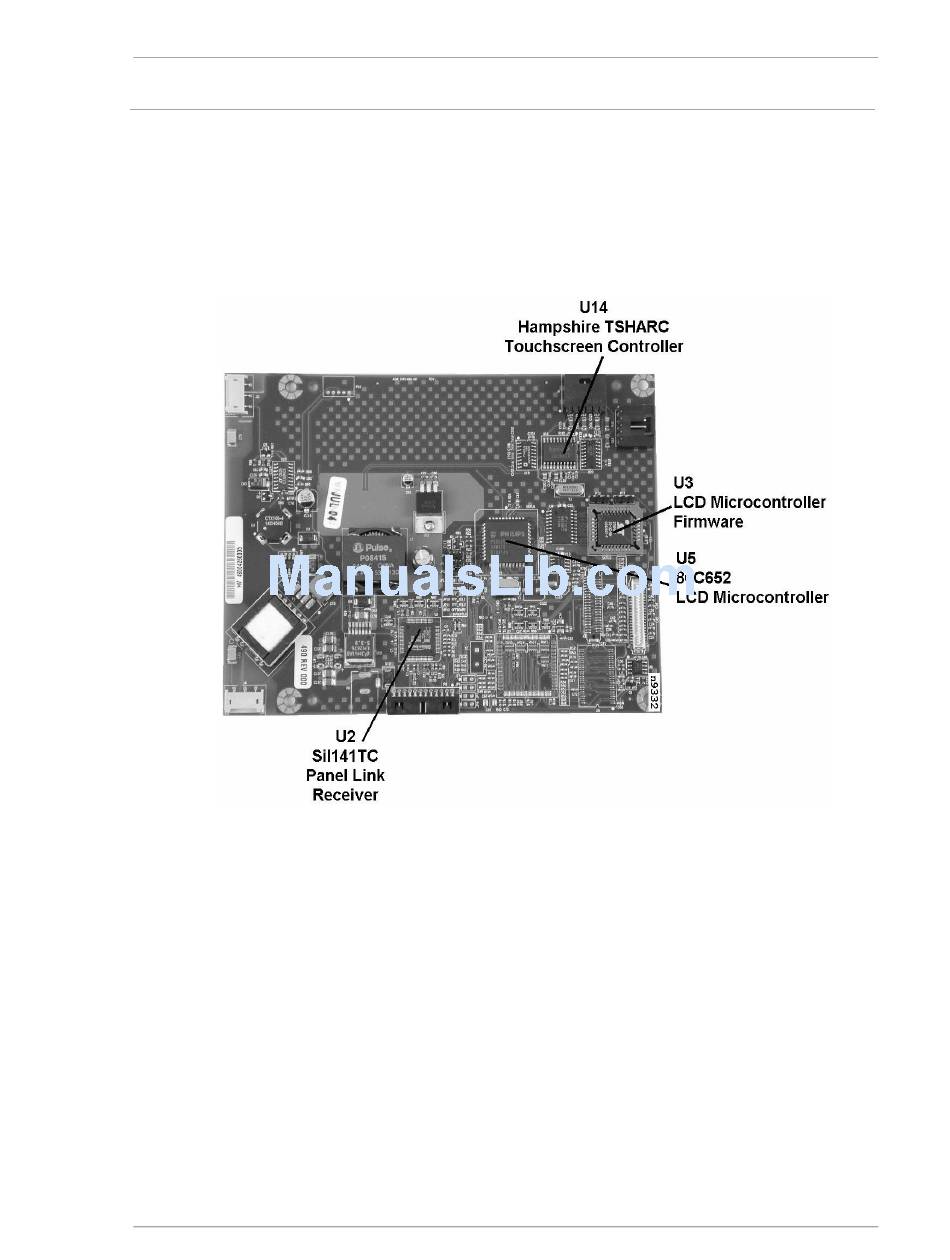

Figure 4-8: The -003 LCD/Touchscreen Interface Board (TFT LCD Only)
This board uses the same TFT LCD interface as the -001 board, but the LCD firmware
is has been modified. Due to the firmware change, the TFT LCD jumper settings are
different. See Figure 4-9.
Field Bulletin FB04-008 describes how to download and install the Hampshire
compatible drivers and run the calibration utility.
