Installing a PCMCIA Card

1.
Refer to page 3-2 and remove the system unit cover if you have not done so
already.
2.
Remove the cover plate from the PCMCIA slot located on the left side of the
system unit chassis. Figure 3-40.
3.
If you intend to install a PCMCIA card that uses an X-Jack type connector, make
sure insulating tape is installed in the area around C92, shown in Figure 3-41,
below.
PCWS Eclipse Setup Guide
STATIC SENSITIVE DEVICES:
Always follow ESD procedures when removing or installing a
PCMCIA Card.

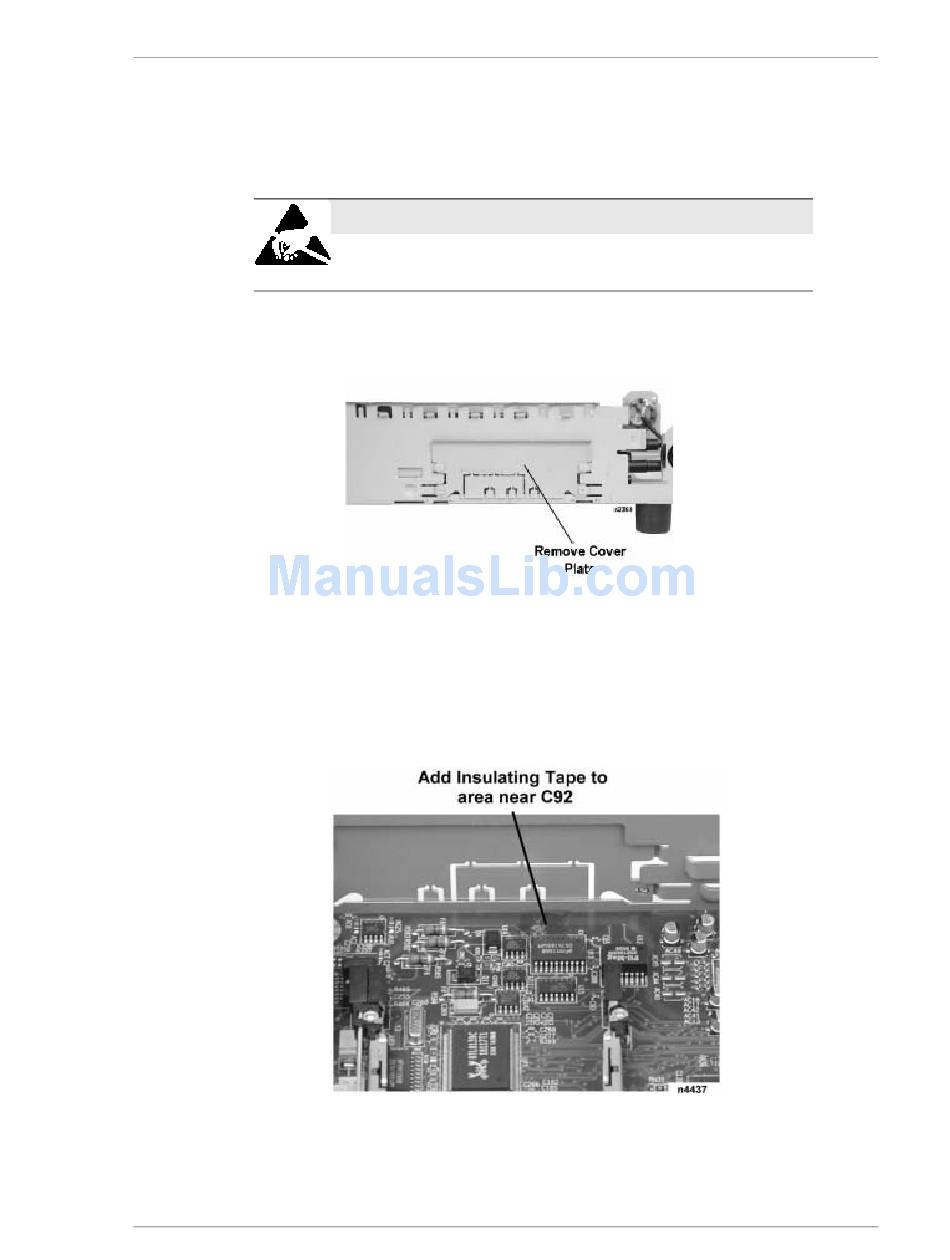

Figure 3-40: Removing the PCMCIA Cover Plate
Figure 3-41: Checking C92 for Insulation Tape
PCWS Eclipse Hardware Configuration

Installing a PCMCIA Card

3-29
