What Is The Eclipse Workstation?
The System
The 15" LCD/Touchscreen Head
The optional 15" LCD/Touchscreen Head, shown below, contains a 1024x768 TFT
LCD Panel coupled to a 5-wire resistive touchscreen.

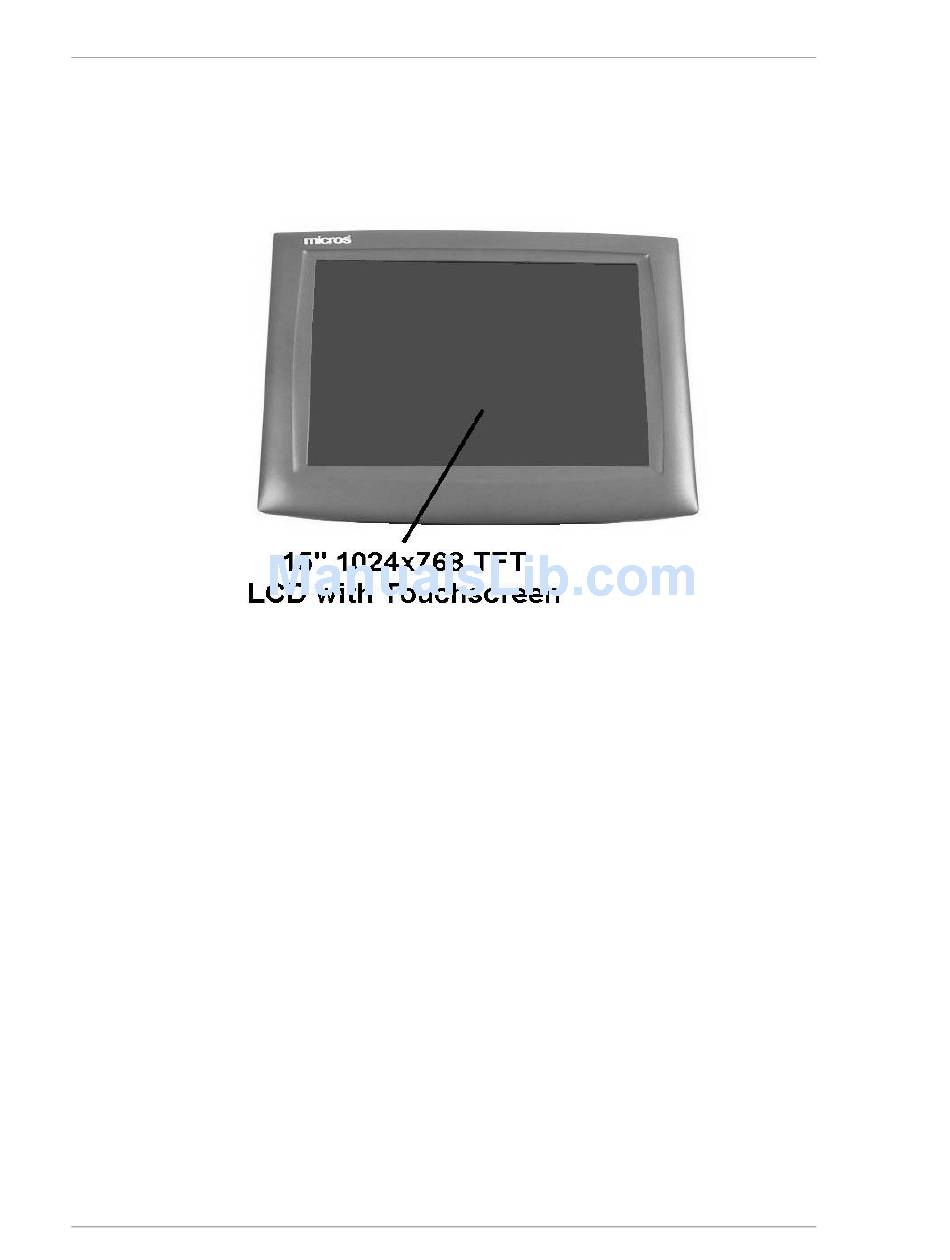

Figure 1-3: The Eclipse 15" LCD/Touchscreen Head
Due for release in November 2004, the optional 15" LCD/Touchscreen head is a
modified version of a retail ELO Touchsystems 15" LCD Monitor/Touchscreen
combination. It is fastened directly to the pedestal hinge.
The Eclipse front panel DVI connector supplies all LCD, touchscreen, backlight
control and data signals as well as +12V to the LCD/Touchscreen Head. Firmware
modifications allow this display to emulate the 12" LCD/Touchscreen at the API
level. The POS Application controls the backlight on/off and brightness in the same
manner as the 12.1" LCD/Touchscreen head.
The right side of the display housing includes several controls to manipulate the On
Screen Display (OSD) function and power on/off button. Refer to page 1-24 for more
information.
Internally, the display consists of a Video Interface Board, Touchscreen Interface
Board, Power Supply Board, and Backlight Inverter Board along with a 15" TFT LCD
Panel and 5-wire resistive touch panel.
1-4
PCWS Eclipse Setup Guide
