The I/O Panel
The I/O Panel

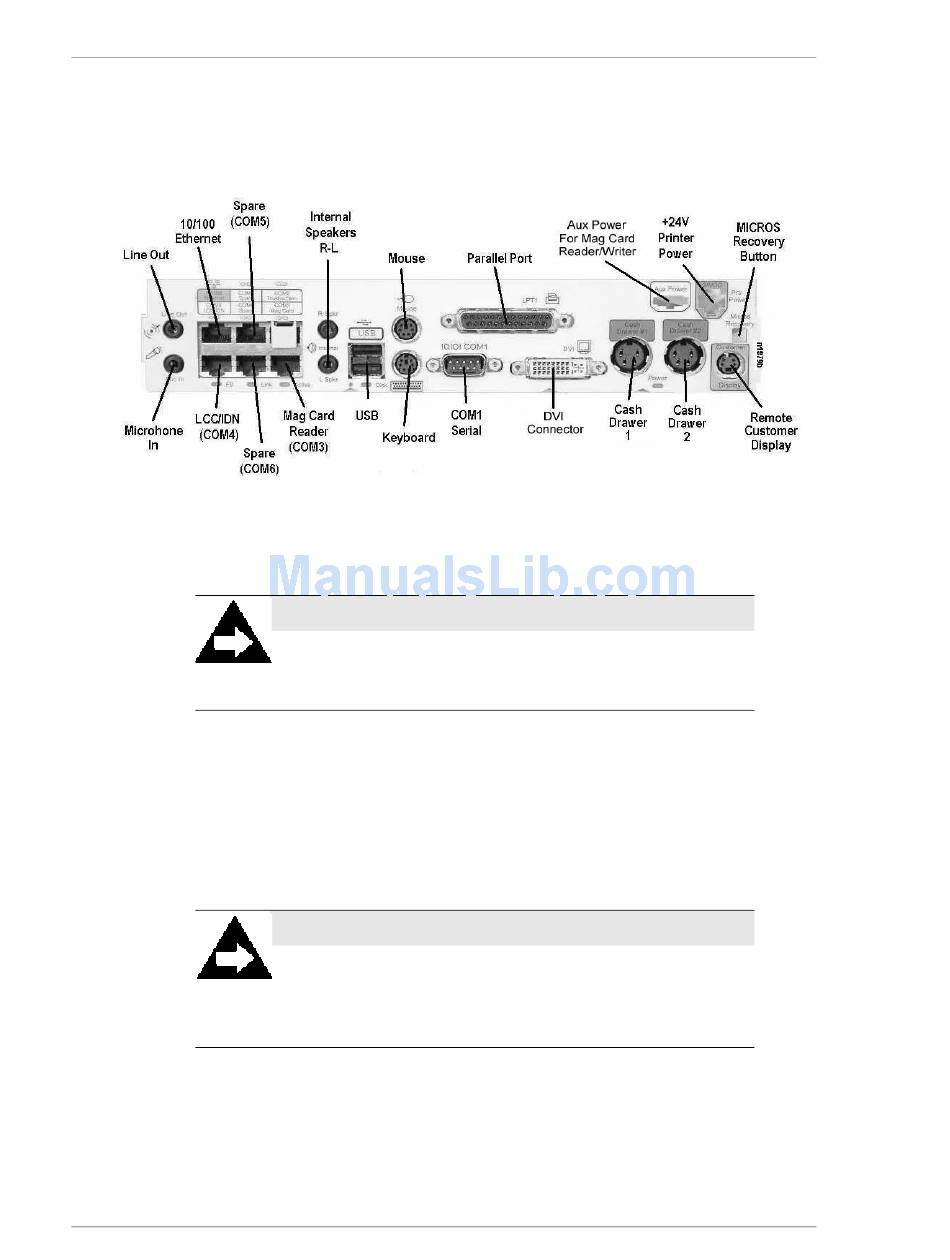

Figure 1-5, below points out each connector on the Eclipse IO Panel.
Working from left to right, descriptions for each connector follows.
P13 - Mic In - Line Out
The Microphone input jack allows you to connect a microphone to the Eclipse and
record sound clips.
The Line Out jack is capable of driving most external powered speakers.
1-14
Figure 1-5: The Eclipse I/O Panel
NOTICE:
This equipment shall only be connected to a public
telecommunications network by an external device approved
for use in the country in which the equipment is installed.
NOTE:
The first 200 units have an error in the front panel artwork
where the Microphone Input and Line Output connector
legends are reversed. The illustration above shows the correct
configuration.
PCWS Eclipse Setup Guide
