PCWS Eclipse Hardware Configuration
Remove/Replace the Hard Disk
Remove/Replace the Hard Disk
This procedure describes how to remove and replace the Eclipse hard disk. The hard
disk bracket and cable are installed at the factory.
1.
Refer to page 3-2 to disassemble the Eclipse Workstation if you have not done so
already.
2.
Lift the hard disk and remove the four-conductor power cable and
multi-conductor data cable. Figure 3-23.
3.
Remove the foam ears from the hard drive. Set them aside for the moment.
4.
On the replacement hard disk, check the configuration jumper(s) to ensure the
disk is configured as a IDE master. If you purchased the drive from MICROS it
will be configured properly.
5.
To re-install the hard disk bracket or IDE cable in the system unit, see Step 10 and
Figure 3-25.
6.
Install the power and data cables on the replacement hard disk. Figure 3-24. Note
the red stripe that indicates Pin-1 on the multi-conductor cable, and the bevels on
the power cable connector, which must be pointed towards the top of the hard
disk.
3-18
STATIC SENSITIVE DEVICES
Always follow ESD procedures when handling the hard disk.

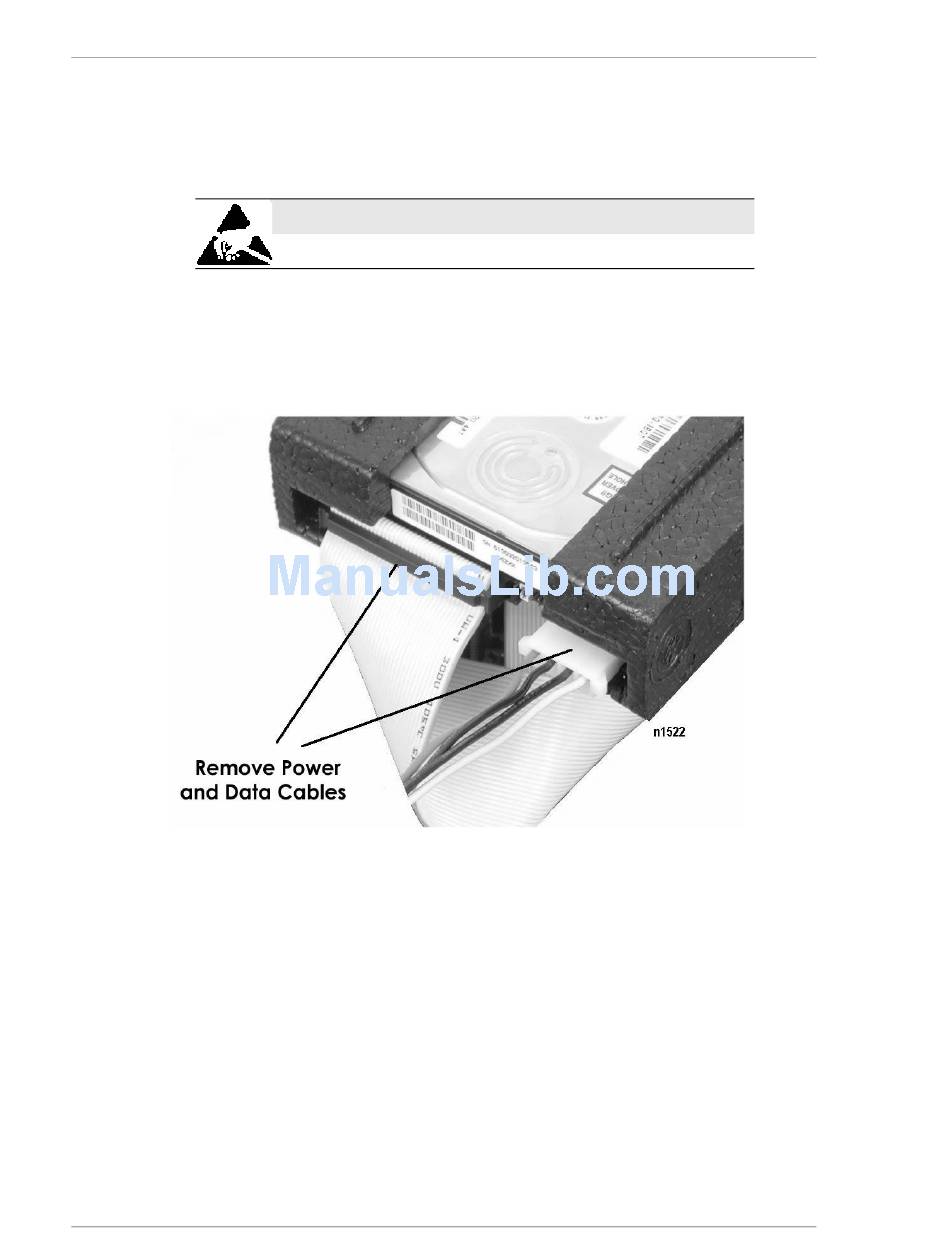

Figure 3-23: Accessing the Hard Disk Cables
PCWS Eclipse Setup Guide
