6.
Before inserting a new processor, make sure the release lever is in the full upright
position as shown in Figure 3-37.
7.
Note the orientation of Pin-1 on the Celeron or Pentium III processor as shown in
Figure 3-37. When Pin-1 is positioned as shown, and the release lever is in the full
upright position, the processor pins should drop into the socket without having to
apply force.

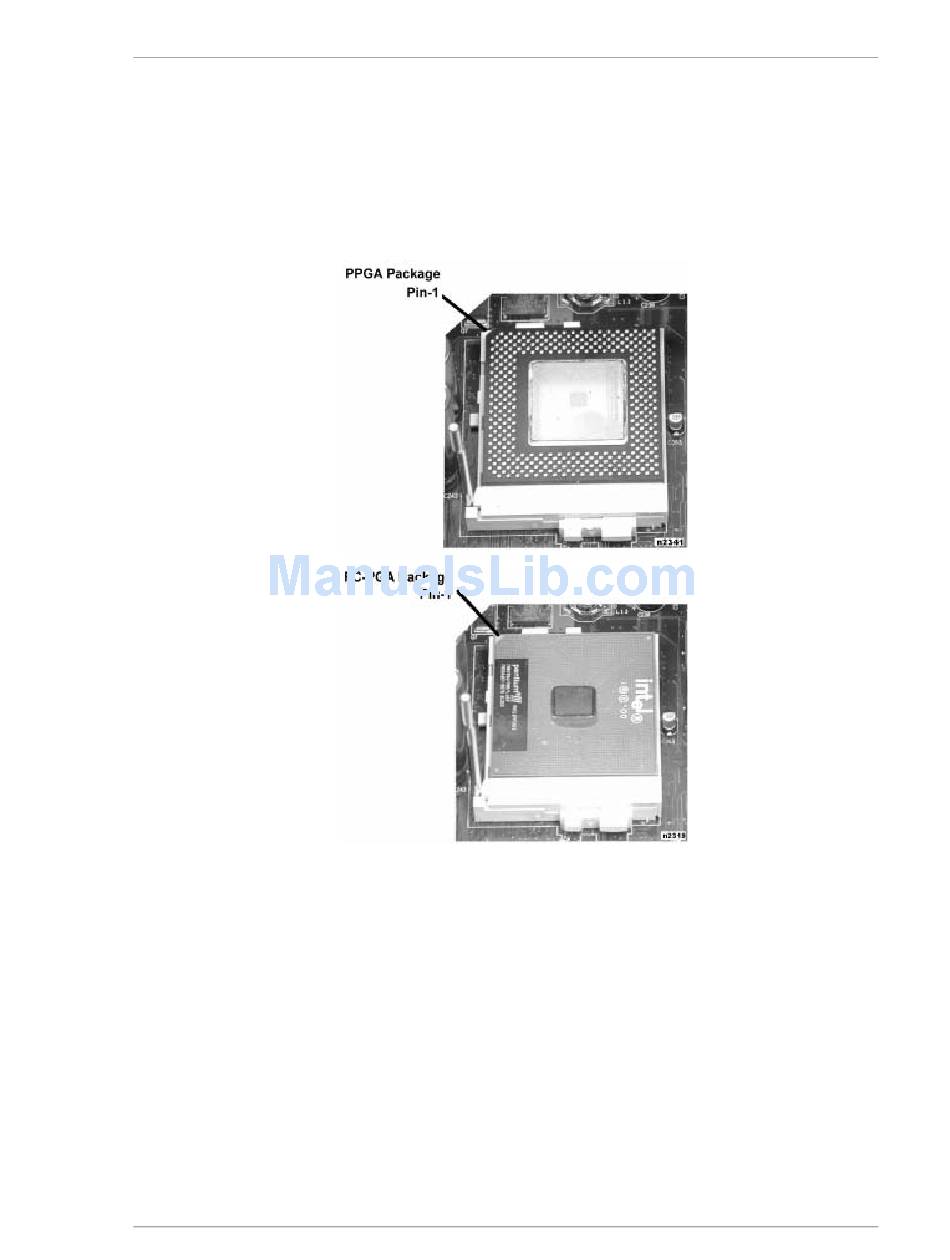

Figure 3-37: Celeron and Pentium III Processor Pin-1 Orientation
If the processor does not simply drop into the socket, remove it and check the
orientation, or look for bent pins.
8.
When the processor is seated in the socket, rotate the release lever to the closed
position.
PCWS Eclipse Setup Guide
PCWS Eclipse Hardware Configuration
Remove/Replace the System Processor
3-27
