PCWS Eclipse Hardware Configuration
Re-assembling the Eclipse
Install the 15" LCD/Touchscreen
9.
Install System Unit base plastics and LCD/Touchscreen Head.
•
Slide the base on the chassis from the rear until it appears like the upper half of
Figure 3-56.
•
Pull the base forward until it fits over the power supply as shown in lower half
Figure 3-56.

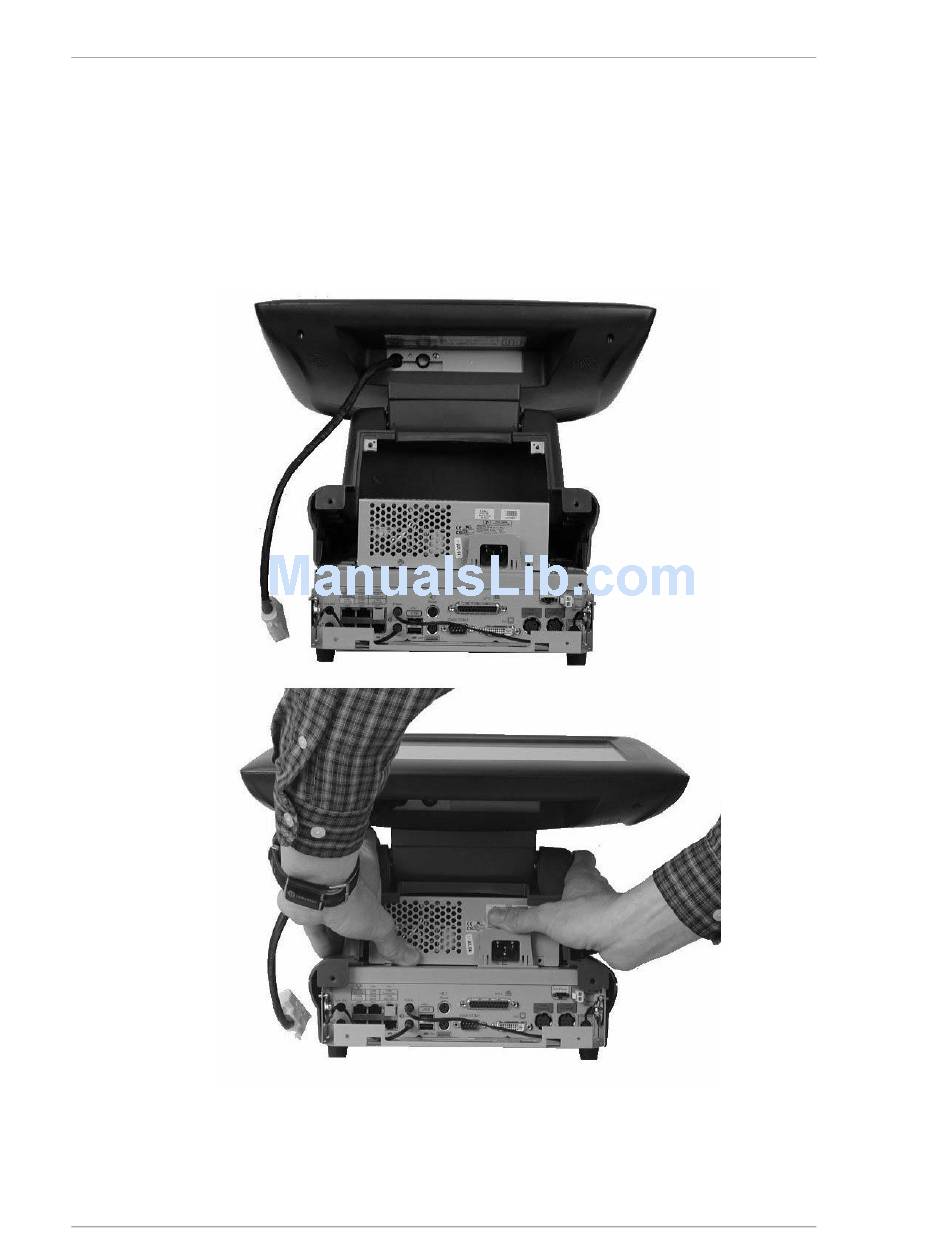

Figure 3-56: Installing the 15" LCD/Touchscreen Head
10.
Install the thumbscrews as shown in Figure 3-53.
3-40
PCWS Eclipse Setup Guide
