PCWS Eclipse Hardware Configuration
Disassembling the Eclipse
Remove the 12.1" LCD/Touchscreen Head
6.

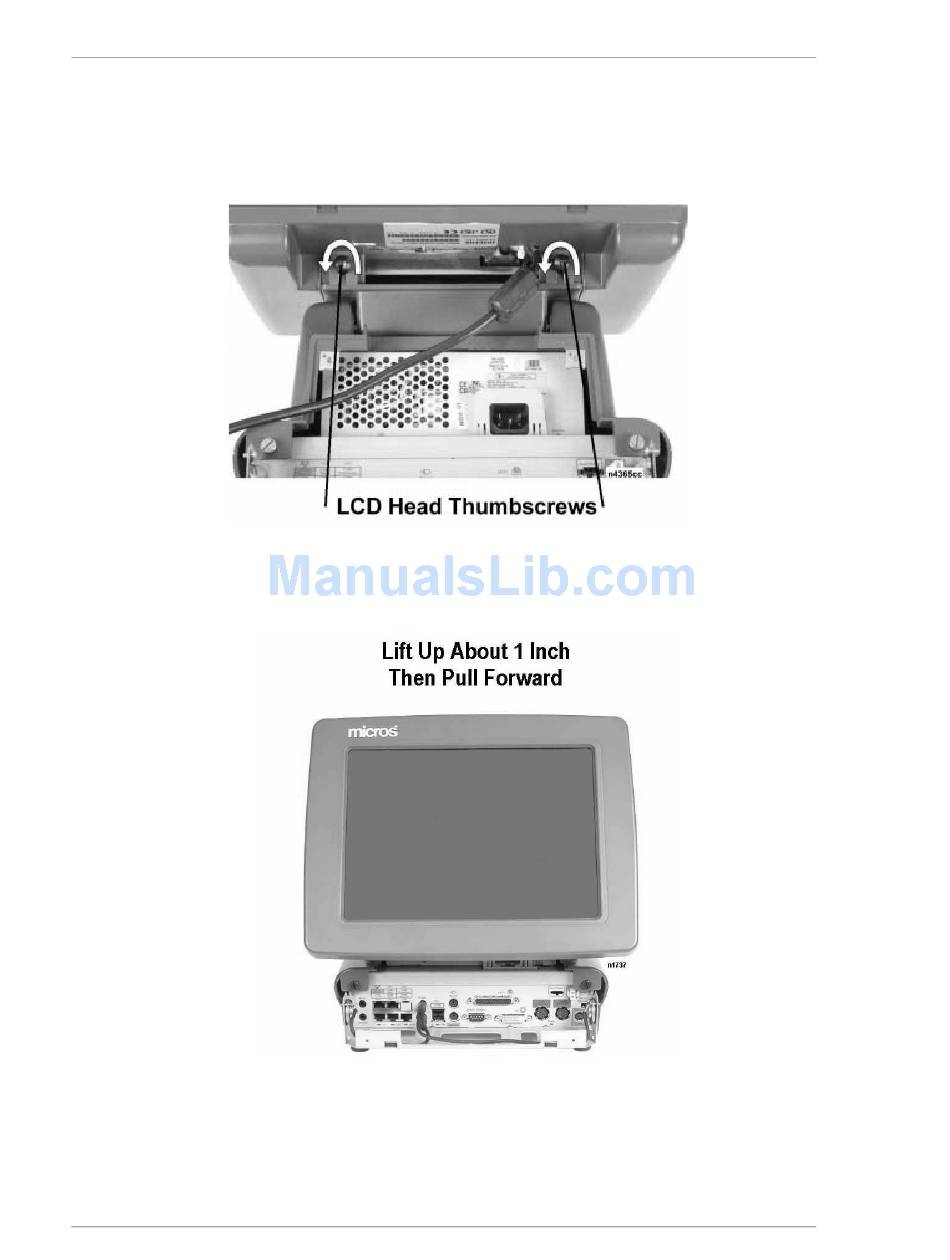

Rotate the LCD head to the position shown in Figure 3-5, and remove the
thumbscrews.
Figure 3-5: Removing the 12.1" LCD/Touchscreen Head Thumbscrews
7.
Lift the LCD head up about 1 or 2 inches then it pull forward.
Figure 3-6: Removing the 12.1" LCD/Touchscreen Head
8.
Proceed to Step x, to remove the System Unit cover.
9.
3-4
PCWS Eclipse Setup Guide
