Connector and Cable Diagrams
Hook-up Cables

Cross-over Pinning

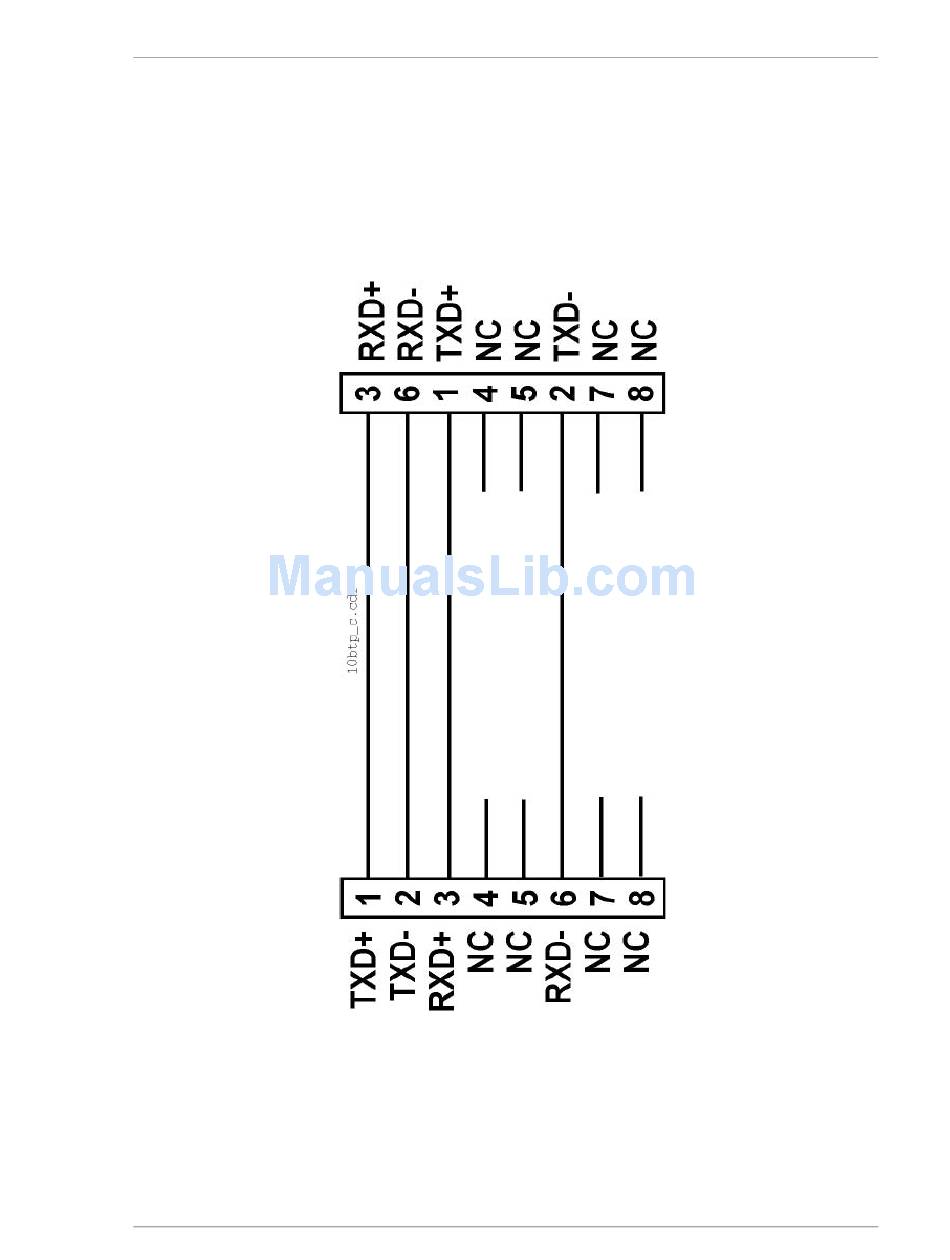

Figure B-21 shows a diagram of a typical Cat 5 hook-up cable with the
transmit/receive cross-over pinning implemented. This cable can be used when only
two devices must be connected. For example it can be used to connect two
workstations, or a server connected to a single client.
Figure B-21: Cat 5 Ethernet Hook-up Cable Diagram (cross-over)
PCWS Eclipse Setup Guide
B-15
