Eclipse LCD/Touchscreen Head Configuration
Disassembling the 12.1" LCD/Touchscreen Head
3. Refer to Figure 4-2 and remove the video, backlight, and touchscreen cables from
the board while the shield is still in place.

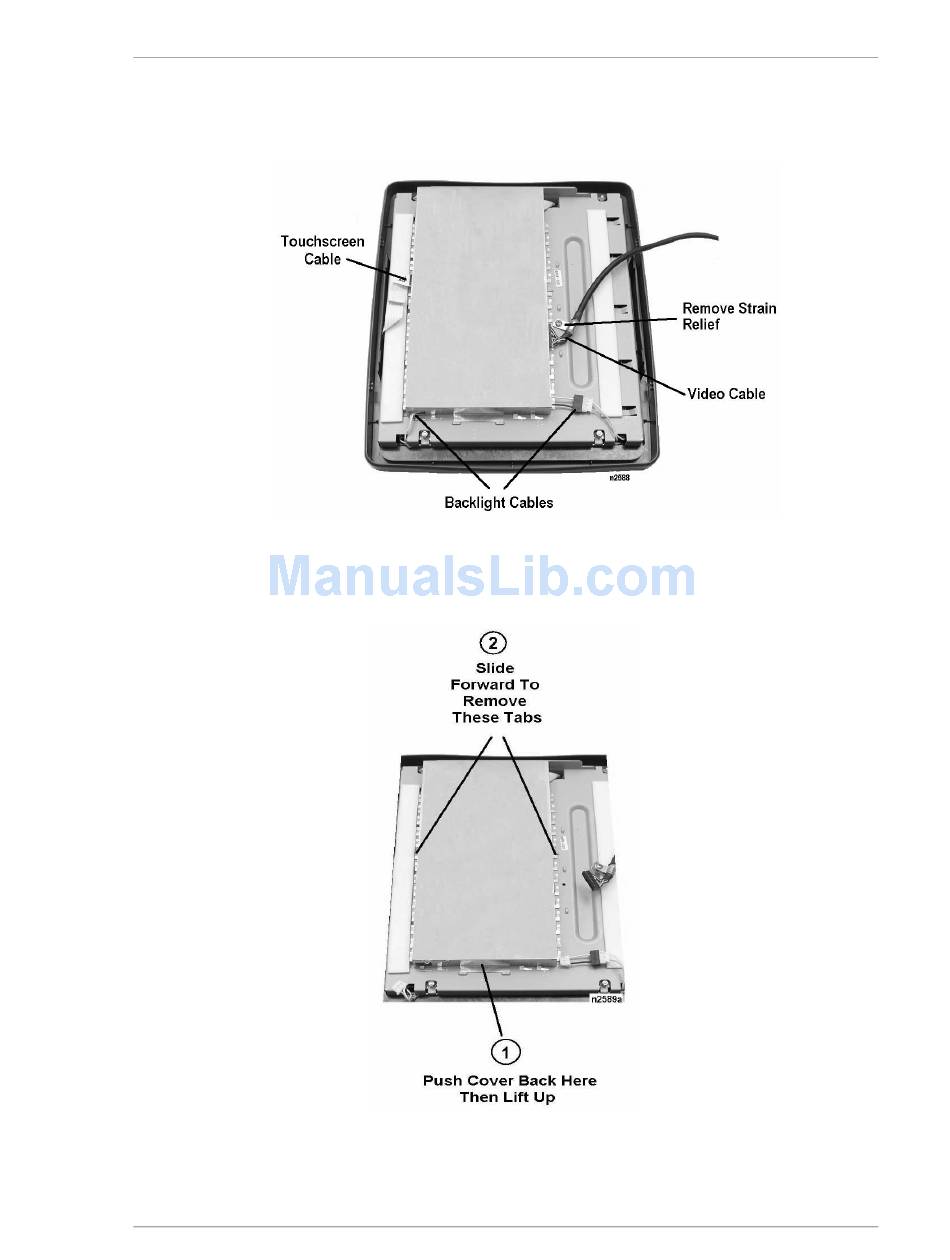

Figure 4-2: Removing Cables from the Interface Board
4. Remove the shield covering the LCD/Touchscreen Interface Board. Figure 4-3.
Figure 4-3: Removing the Interface Board Shield
PCWS Eclipse Setup Guide
4-3
