Connector and Cable Diagrams
Front Panel Connectors
Parallel Port Connector
Parallel ports (sometimes referred to as a Centronics port) can be used to connect
printers, external tape drives, and CD-ROM drives to the workstation. The port
consists of a standard DB25 female connector, with the pin-outs for centronics mode
listed below.

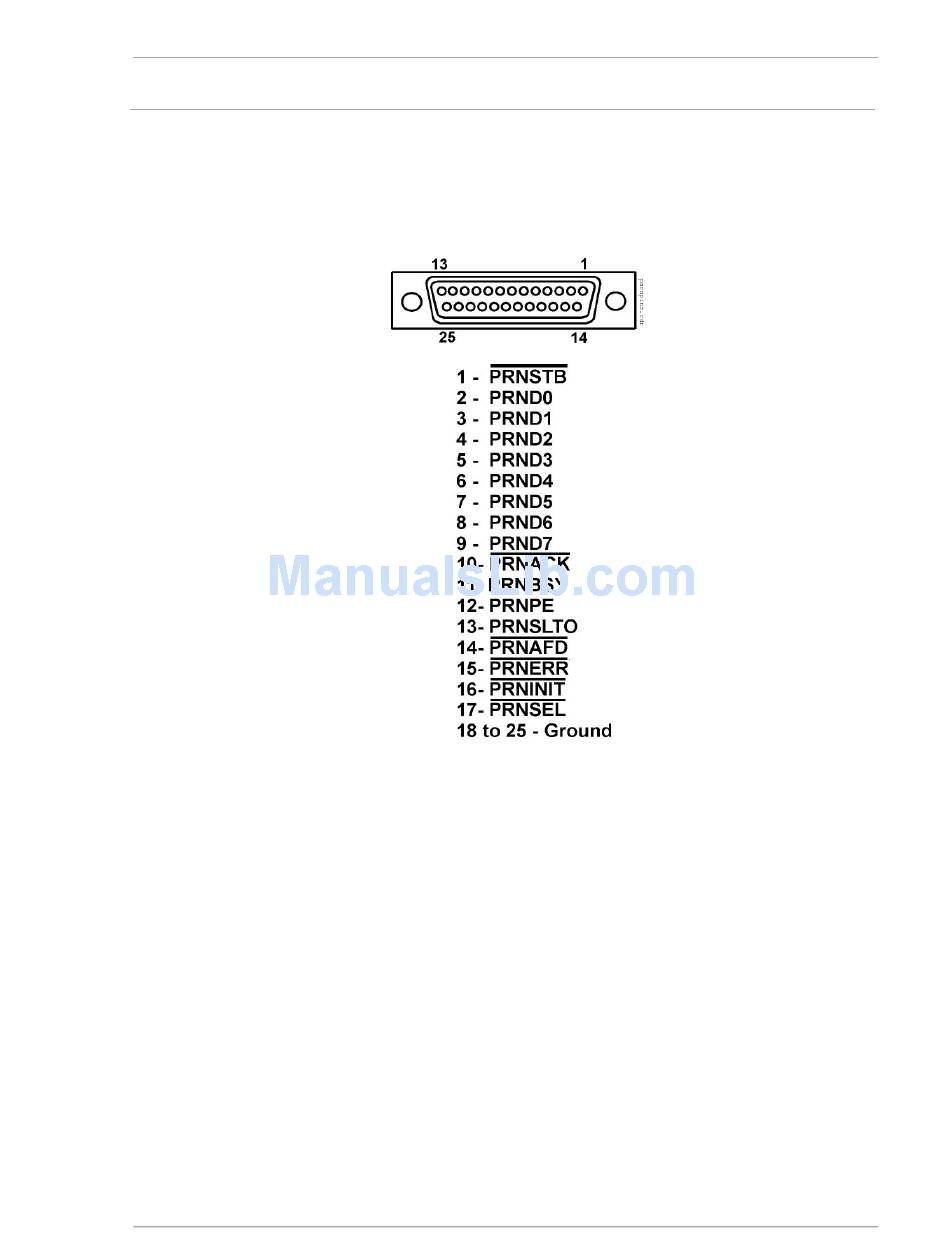

Figure B-9: Centronics Parallel Port Diagram
PCWS Eclipse Setup Guide
B-7
