Ports Menu & Forms

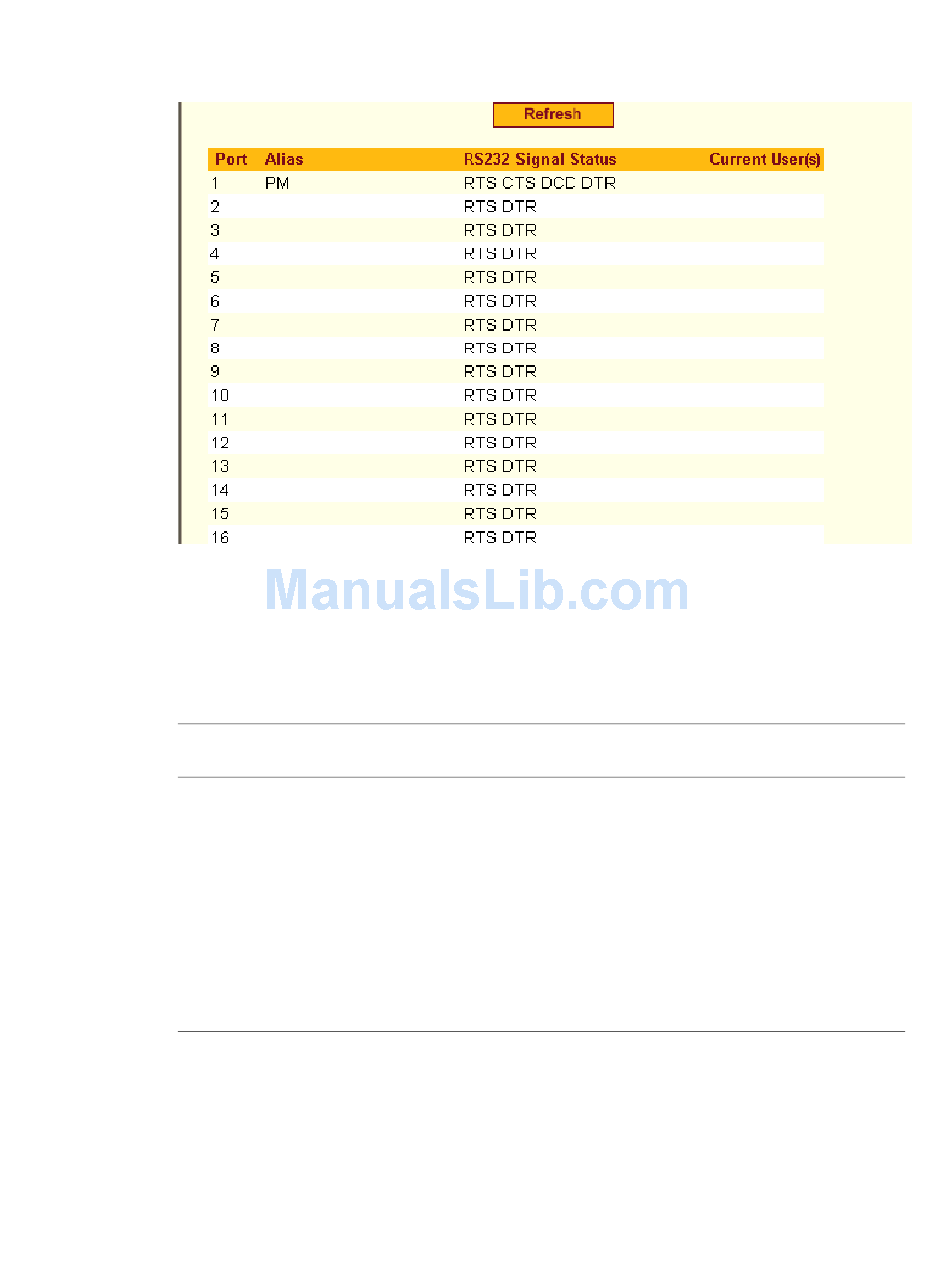

Figure 10-37: Expert > Ports > Ports Status (Read-Only)
The information in the following table is available in the Ports Status read-
only form. All users have access to this form. The information on this page
gets updated when you click the "Refresh" button.
Table 10-14: Expert > Port Status Read-Only Form
Column Name
Port
Alias
RS232 Signal Status
Current User(s)

Ports Statistics

Selecting Ports > Port Statistics in Expert mode, brings up the following read-
only form.
288
Description
The serial port number.
Displays the name (alias) for the serial port if
one is assigned by the administrator.
Serial Communication Signal Status
Displays the user(s) connected to each serial
port.
