Configuring CS in Wizard Mode
The form appears as shown in the following figure.

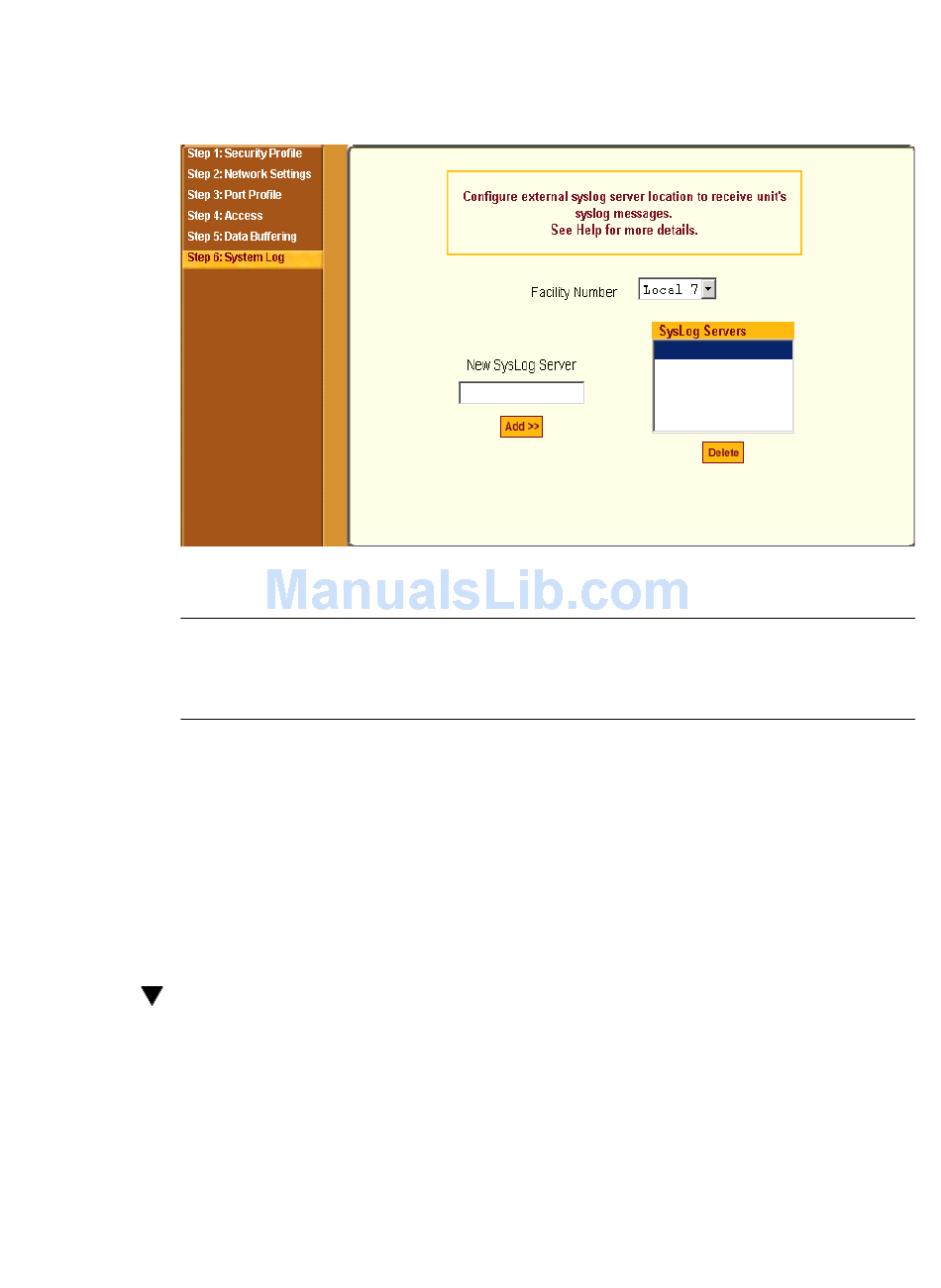

Figure 5-15:Wizard > Step 6: System Log
Note: To configure syslog with data buffering features for specific ports, switch to
the Expert Mode, Ports > Physical Ports > Modify Selected Ports > Data
Buffering.
Before setting up syslogging, make sure an pre-configured syslog server is
available on the same network as the CS. Obtain the following information
from the syslog server's administrator.
•
•

To Add a Syslog Server

This procedure assumes you have the following information:
•
•
1. Select "Step 6: System Log."
102
The IP address of the syslog server.
The facility number for messages coming from the CS.
See Chapter 1, "Syslog Servers" on how facility numbers are used.
The IP address of the syslog server
The facility number for messages coming from the CS
