Network Menu & Forms

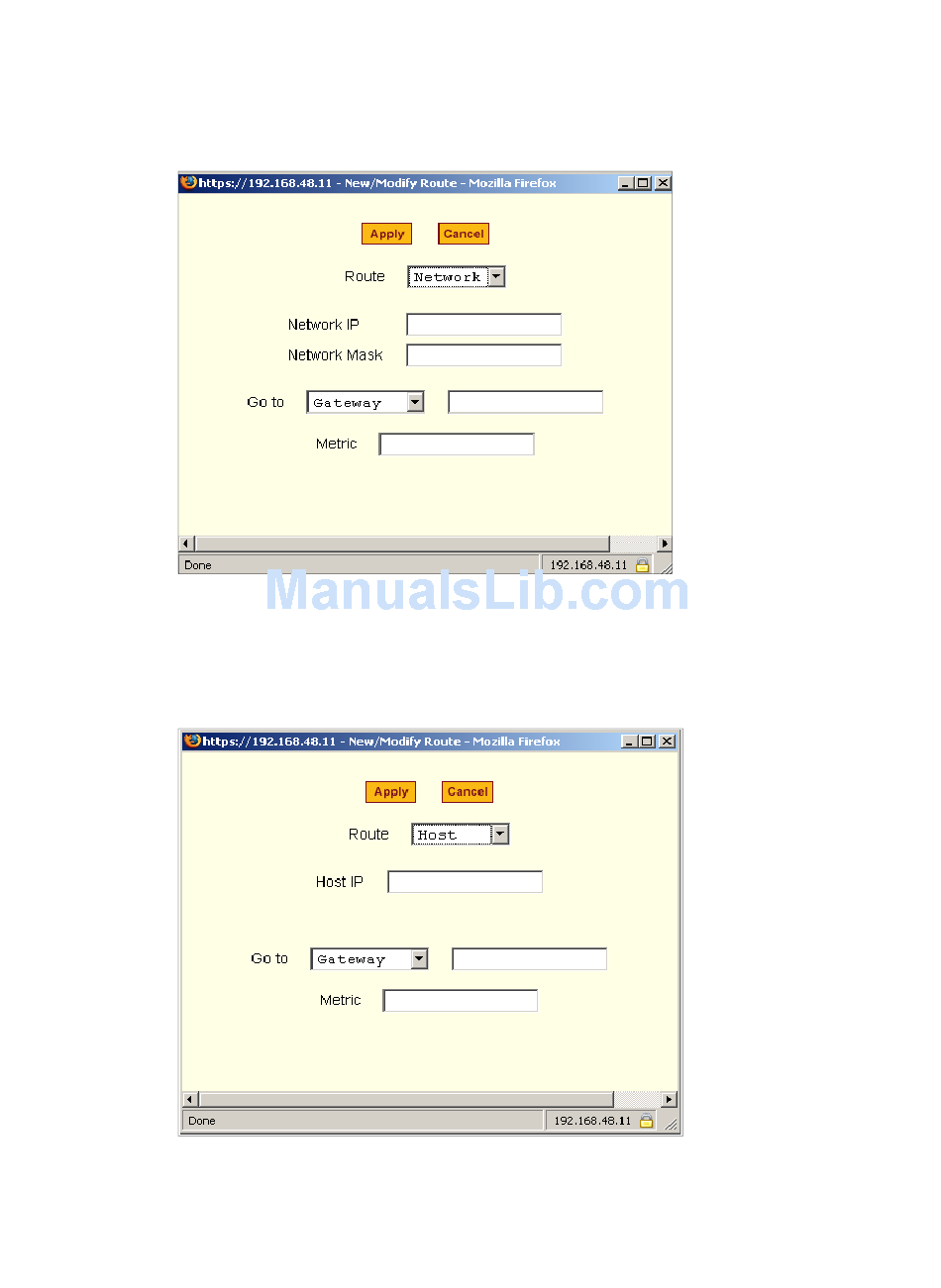

The following figure shows the fields and menus that appear when the
"Network" route type is selected from the "Route" pull-down menu.
Figure 8-41: Expert > Static Routes "Add" and "Edit" Dialog Boxes -
The following figure shows the fields and menus that appear when the "Host"
route type is selected from the "Route" pull-down menu.
204
Network Route
