To Configure Data Buffering - Black Box Advanced Console Server User Manual

Configuring CS in Wizard Mode
Note: You can perform advanced configuration in Expert mode including the option
of setting up data buffering separately for individual or groups of serial ports.

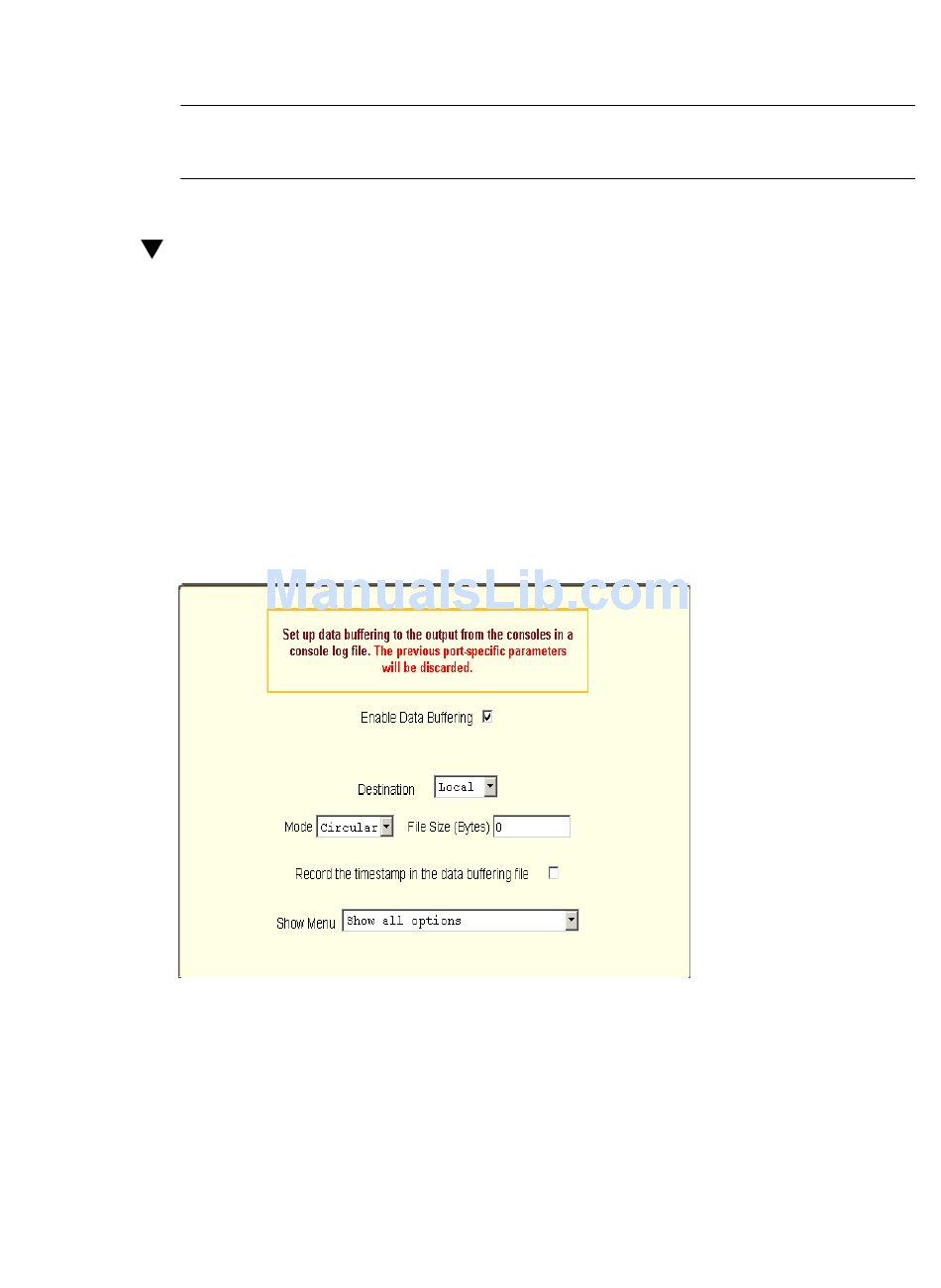

To Configure Data Buffering

1. Select "Step 4: Data Buffering"
2. Click the "Enable Data Buffering" checkbox.
3. Select a location for the data files from the "Destination" pull-down menu
4. When the destination is local, perform the following steps.
5. When the destination is remote, perform the following steps.
100
The "Destination" pull-down menu appears.
(either "Local" or "Remote").
Additional pull-down menus and fields appear, depending on which
destination is selected.
a. From the "Mode" pull-down menu, select "Circular" or "Linear" data
buffering.
b. Type a file size in bytes into the "File Size (Bytes)" field.
The file size should be greater than zero.
