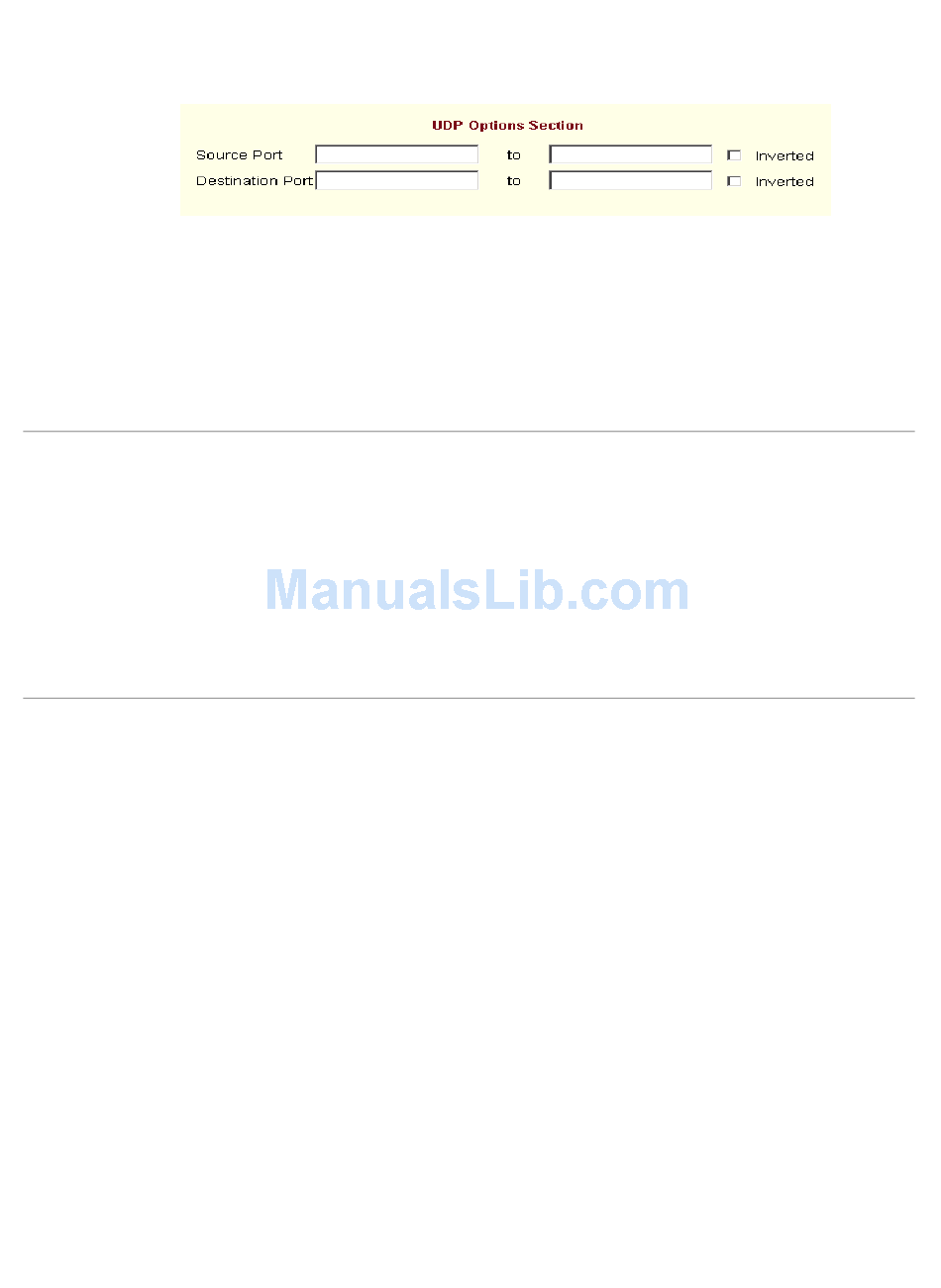

Figure 8-33:Firewall Configuration "Add Rule" and "Edit Rule" UDP
The following table defines the fields in the UDP Options Section.
Table 8-14: Expert > UDP Options Fields
Field
Source Port
- OR -
Destination Port
-AND-
to
Inverted
ICMP Protocol Fields
If ICMP is selected as a protocol, the "ICMP Type" pull-down menu appears
in the "ICMP Options Section" at the bottom of the Firewall Configuration
form. The following figure shows the options.
194
Protocol Fields
Definition
A port number for filtering in the "Source Port" or "Destination
Port" field. A range of IP address can be specified by adding a
second port number in the "to" field. TCP packets are filtered for
for the range of specified IP addresses.
By checking this box, The UDP options are "Inverted". "Inverting"
an item negates the selected rules. Rules will apply to everything
except the selected options.
