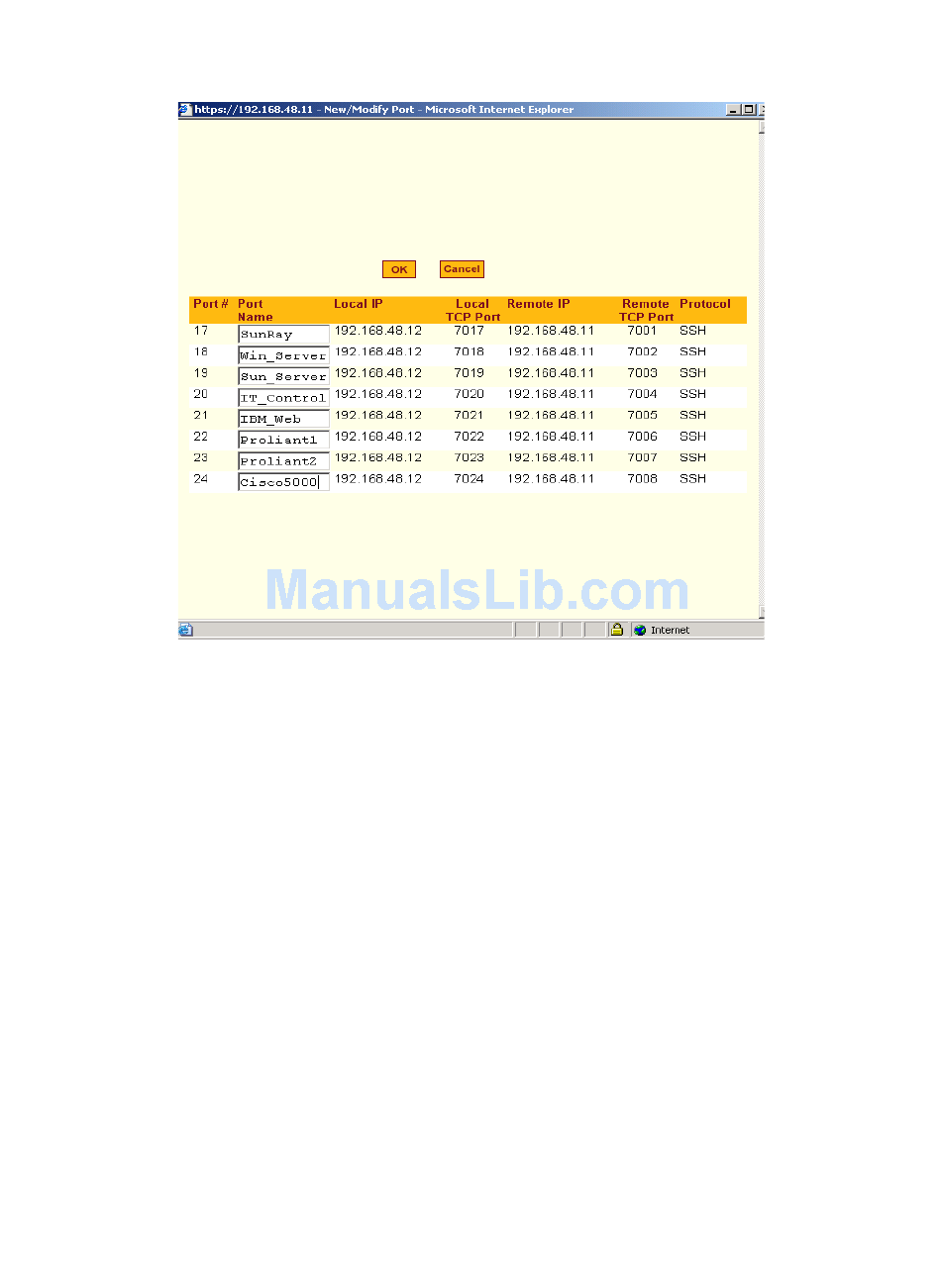

Figure 10-36: Expert > Ports > Virtual Ports > New/Modify > Port Names
Dialog box
Use this form to assign a name or alias to the slave ports in the cluster. Use a
naming convention for effective management of the CS units and the
connected devices on your network.

Ports Status

Selecting Ports > Port Status in Expert mode, brings up the following read-
only form, which displays tabular serial port status information.
BLACK BOX® CS Installation, Administration, and User's Guide 287
