Figure 10-34: Expert > Applications > Connect > Serial pull-down menu

To Cluster CS Units or Modify Cluster Configuration

Use this procedure if you want to cluster CS units and add or modify ports.
Note: CS boxes should be connected individually to an IP network. The units should
not be cascaded.
1. Go to Ports > Virtual Ports in Expert mode, and click the "Add" button to

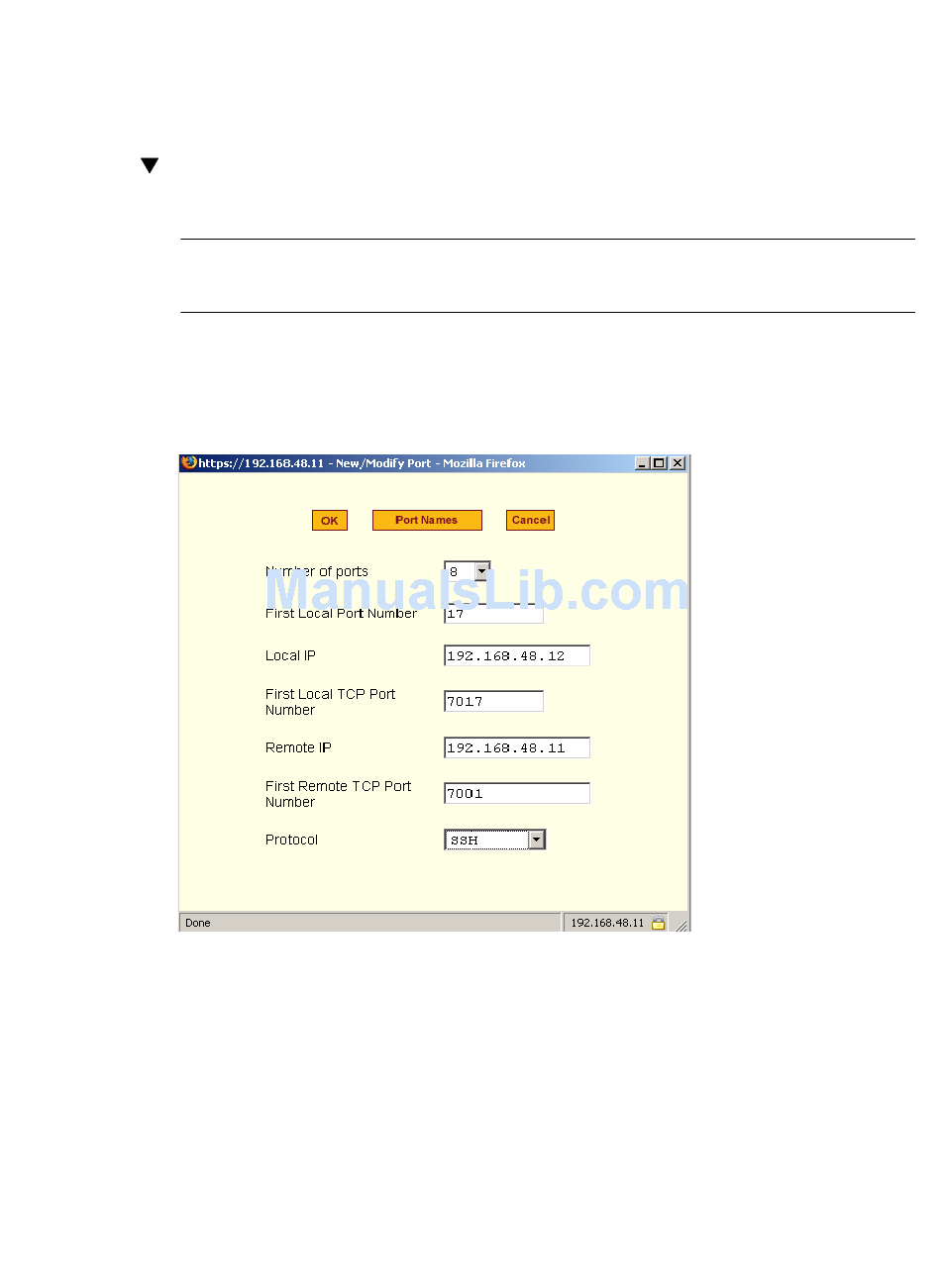

Figure 10-35: Expert > Ports > Virtual Ports > New/Modify Port Dialog Box
2. From the drop-down menu select the number of ports that you want to
3. Enter the "First Local Port Number".
BLACK BOX® CS Installation, Administration, and User's Guide
add new slave ports, or click the "Edit" button to edit a slave port.
The New/Modify Port dialog box appears.
assign as slaves.
Choices are 1, 4, 8, 16, 32 and 48.
285
