Network Menu & Forms
Protocol
You can select a protocol for filtering. The "Protocol" pull-down menu is
shown in the following figure.

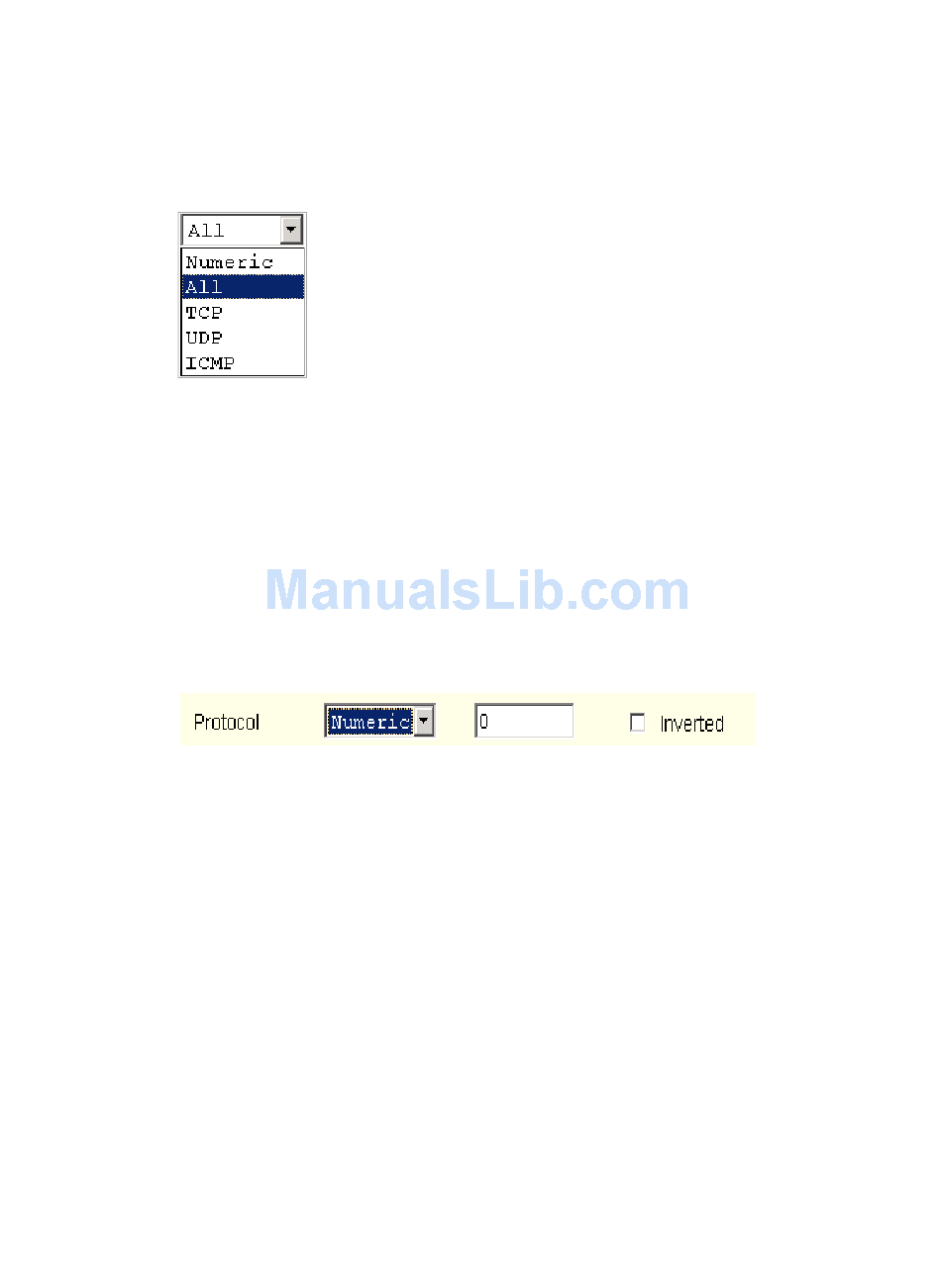

Figure 8-30:Firewall Configuration "Add Rule" and "Edit Rule" Protocol
The additional fields that appear for each protocol are explained in the
following sections.
Numeric Protocol Fields
If Numeric is selected as the protocol when specifying a rule, a text field
appears to the right of the menu for the desired number, as shown in the
following figure.
Figure 8-31:Firewall Configuration "Add Rule" and "Edit Rule" Numeric
TCP Protocol Fields
If TCP is selected as the protocol when specifying a rule, the additional fields
shown in the following figure appear on the bottom of the form.
192
Menu Options
Protocol Fields
