Figure 10-14: Expert > Ports > Physical Ports > Modem Connection; To Configure A Serial Port Connection Protocol For An External Modem - Black Box Advanced Console Server User Manual

Ports Menu & Forms
4. To configure a terminal to automatically connect to CS, do the following
5. To configure a terminal to automatically connect to a server, do the
6. If you are finished, click "Done."
7. Click "apply changes."
To Configure a Serial Port Connection Protocol for an
External Modem
This procedure assumes that the selected serial port is physically connected to
an external modem.
1. Go to Ports > Physical Ports in Expert mode, select a port or ports to
Figure 10-14: Expert > Ports > Physical Ports > Modem Connection Active
2. Click the General tab.
252
steps.
a. Select "Local Terminal" from the "Connection Protocol" pull-down
menu.
b. Define a terminal profile menu. "Terminal Profile Menu" form is at
Expert > Applications > Terminal Profile Menu.
following steps.
a. Select "Telnet", "SSHv1", "SSHv2", or "Raw Socket" from the
"Connection Protocol" pull-down menu.
b. Specify authorized users/groups and the authentication method in the
"Access" form.
c. Specify the TCP Port number, the IP address of the remote host, and
the terminal type using the "Other" form. The "Other" form is located
at Ports > Physical Ports > Modify Selected Ports > Other.
modify, click the appropriate Modify Ports button.
The General form appears.

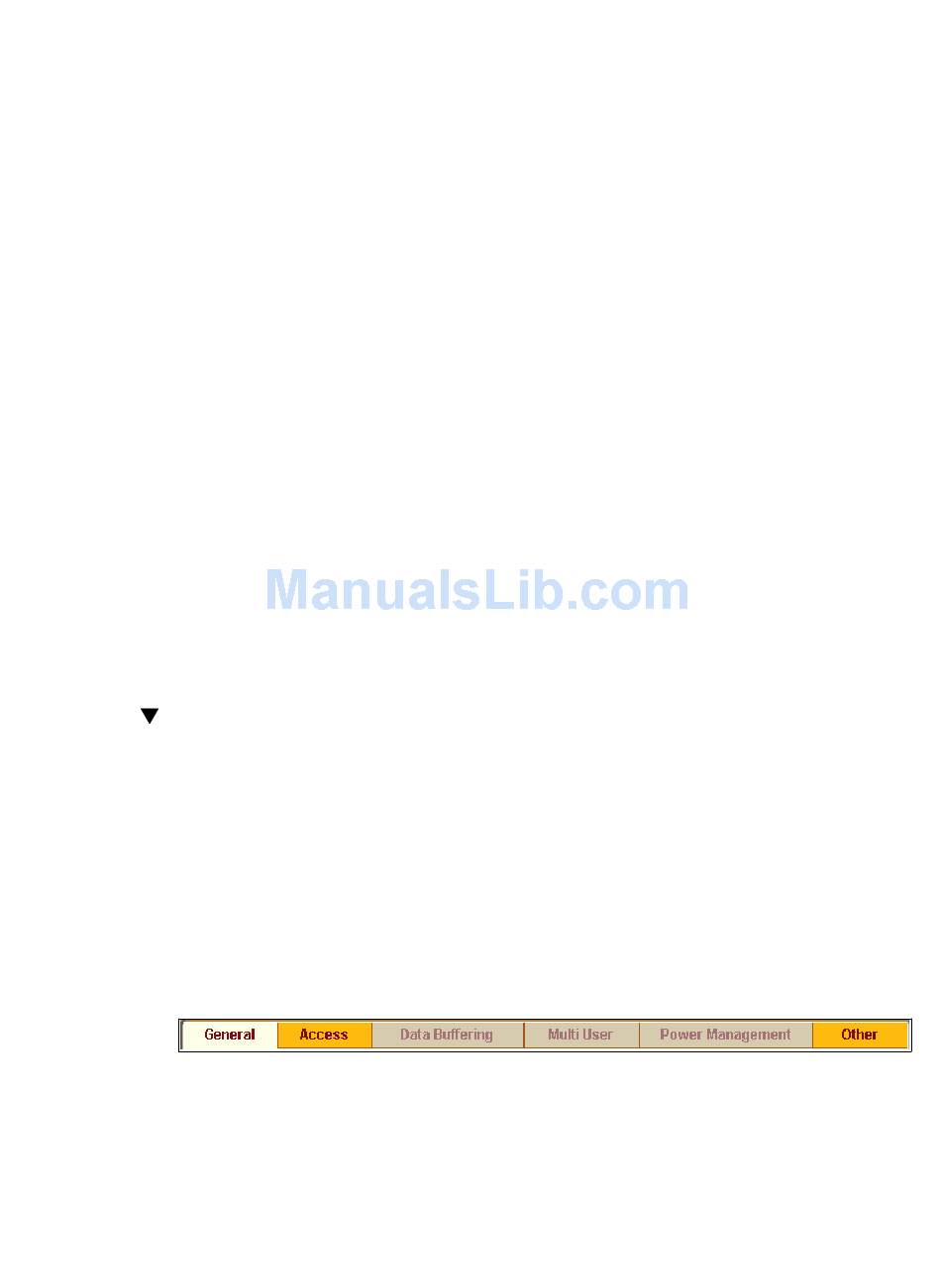

The port configuration section includes six forms in tabbed format as
shown in the following figure.
Tabs
