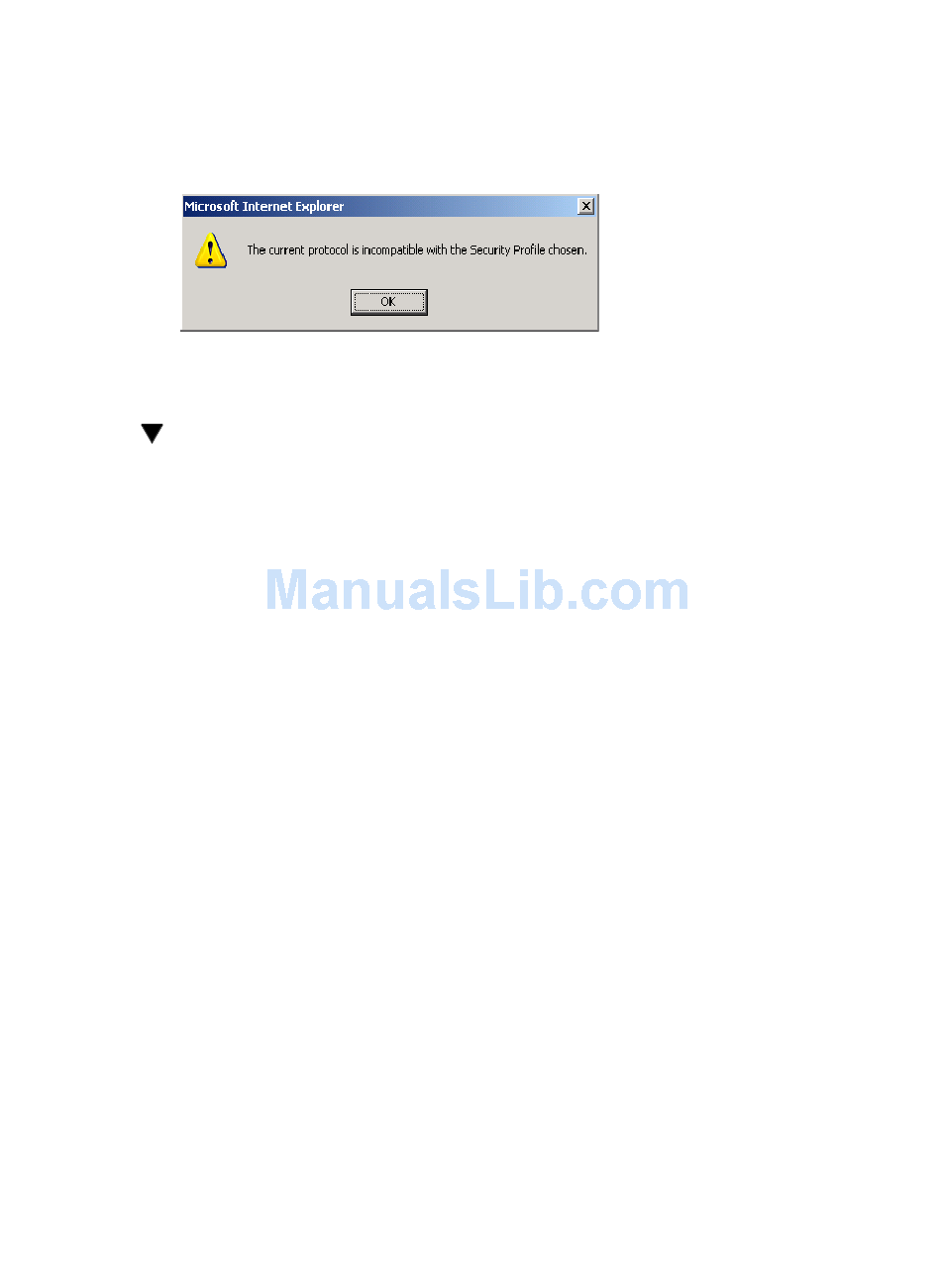

Figure 9-16:Serial Ports Protocol Incompatibility Dialog Box

To Select or Configure a Security Profile

The following procedure assumes you have installed a new CS at your site, or
you have reset the unit to factory default.
1. Enter the assigned IP address of the CS in your browser and login as an
BLACK BOX® CS Installation, Administration, and User's Guide
If the serial port connection protocol is incompatible with the selected
security profile the following dialog box appears when you try to access
Expert > Ports > Physical Ports
administrator.
The following security warning dialog box appears.
231
