Figure 10-5: Expert > Ports > Physical Ports > Console Connection Active
2. Click the General tab.

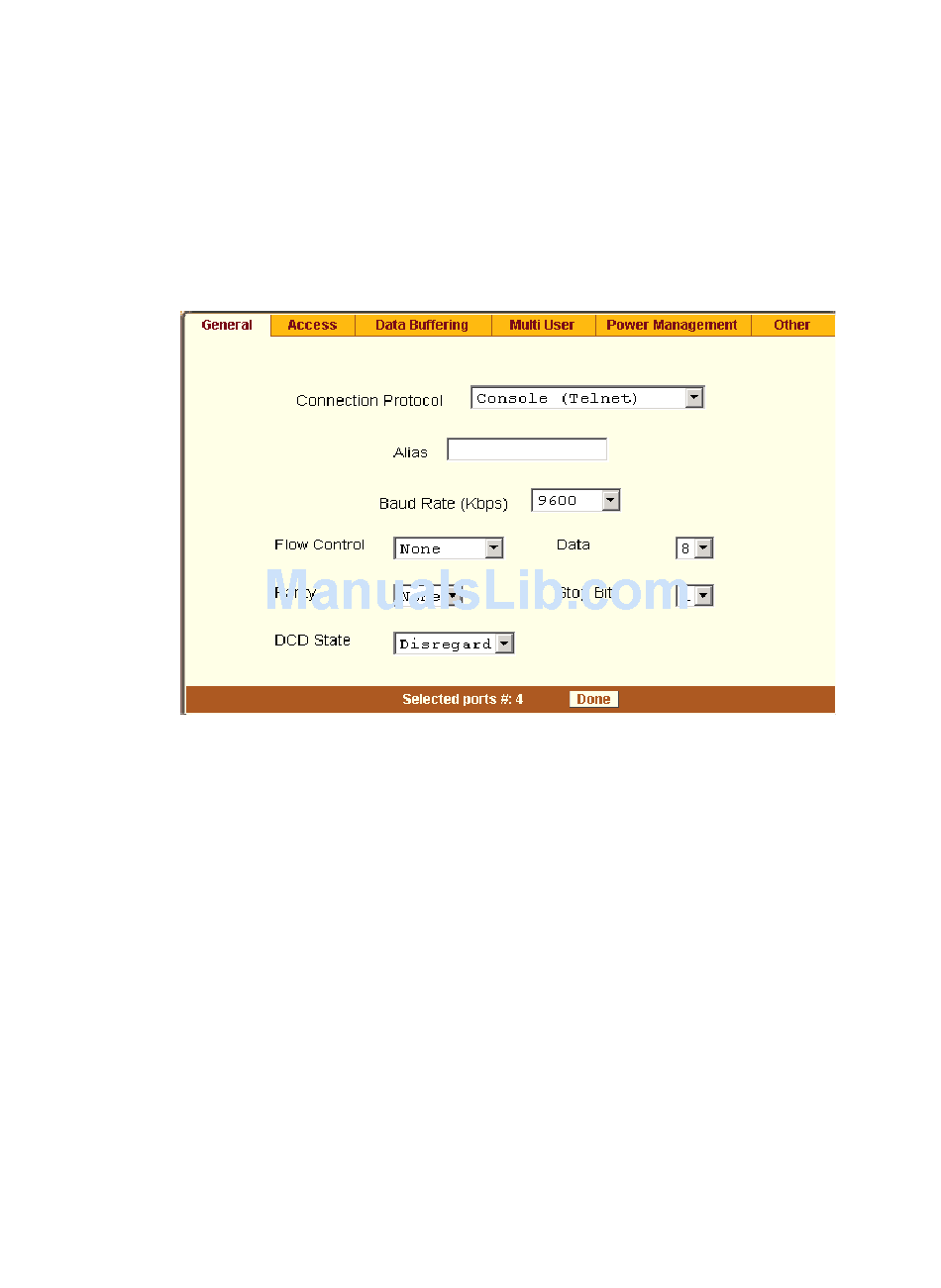

Figure 10-6: Expert > Ports > Physical Ports > Console Connection
3. To change the connection protocol, select one of the options from the
BLACK BOX® CS Installation, Administration, and User's Guide
Tabs
The General form appears with the number(s) of the selected port(s) next
to the Done button at the bottom of the form, and all the active tabs in
yellow.
"Connection Protocol" pull-down menu: Console (Telnet), Console
(SSH), Console (Telnet & SSH), or Console (Raw). The default is
Console (Telnet).
247
