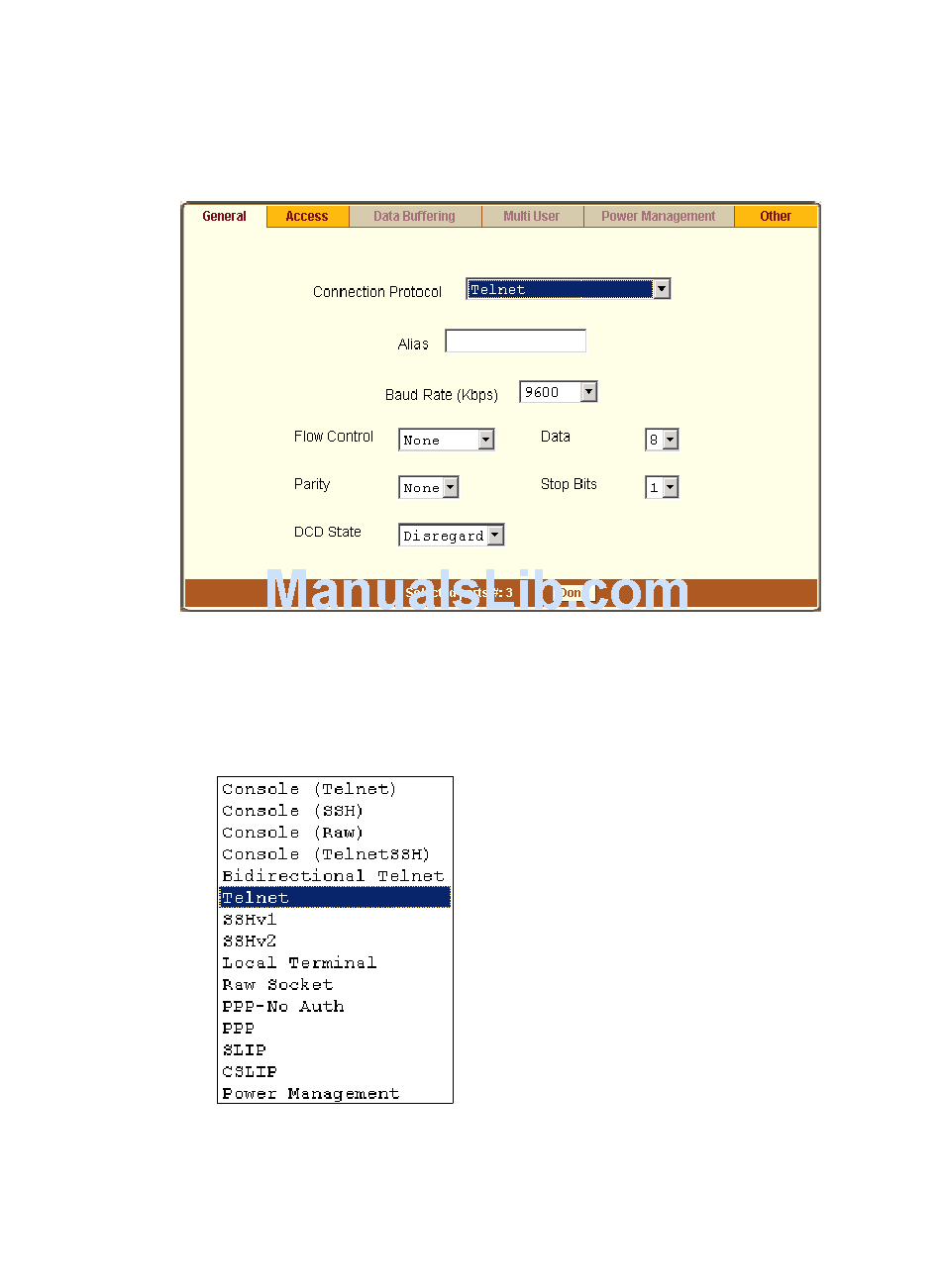

Figure 10-12: Expert > Ports > Physical Ports > Terminal Server; Figure 10-13:Connection Protocols > Terminal Server - Black Box Advanced Console Server User Manual

Figure 10-12: Expert > Ports > Physical Ports > Terminal Server Connection
3. To change the connection protocol, select a Terminal Server connection
Figure 10-13:Connection Protocols > Terminal Server
BLACK BOX® CS Installation, Administration, and User's Guide
The General form appears with the number(s) of the selected port(s) next
to the Done button at the bottom of the form, and the active tabs
highlighted in yellow.
from the "Connection Protocol" pull-down men, "Telnet", "SSHv1",
"SSHv2", "Local Terminal", or "Raw Socket".
251
