Configuring A Wireless Lan Pcmcia Card; Figure 8-13: Expert > Pcmcia Wireless Lan Card Configuration - Black Box Advanced Console Server User Manual

Network Menu & Forms
2. Click the "Enable" checkbox.
3. If desired, uncheck the "Use for data buffering" checkbox. Default is
4. Click OK.
5. Click "apply changes."

Configuring a Wireless LAN PCMCIA Card

You can use the "PCMCIA Management" form under "Network" to configure
a Wireless LAN PCMCIA card. When you select "Wireless LAN" from the
pull-down menu, the dialog box shown in the following figure appears.

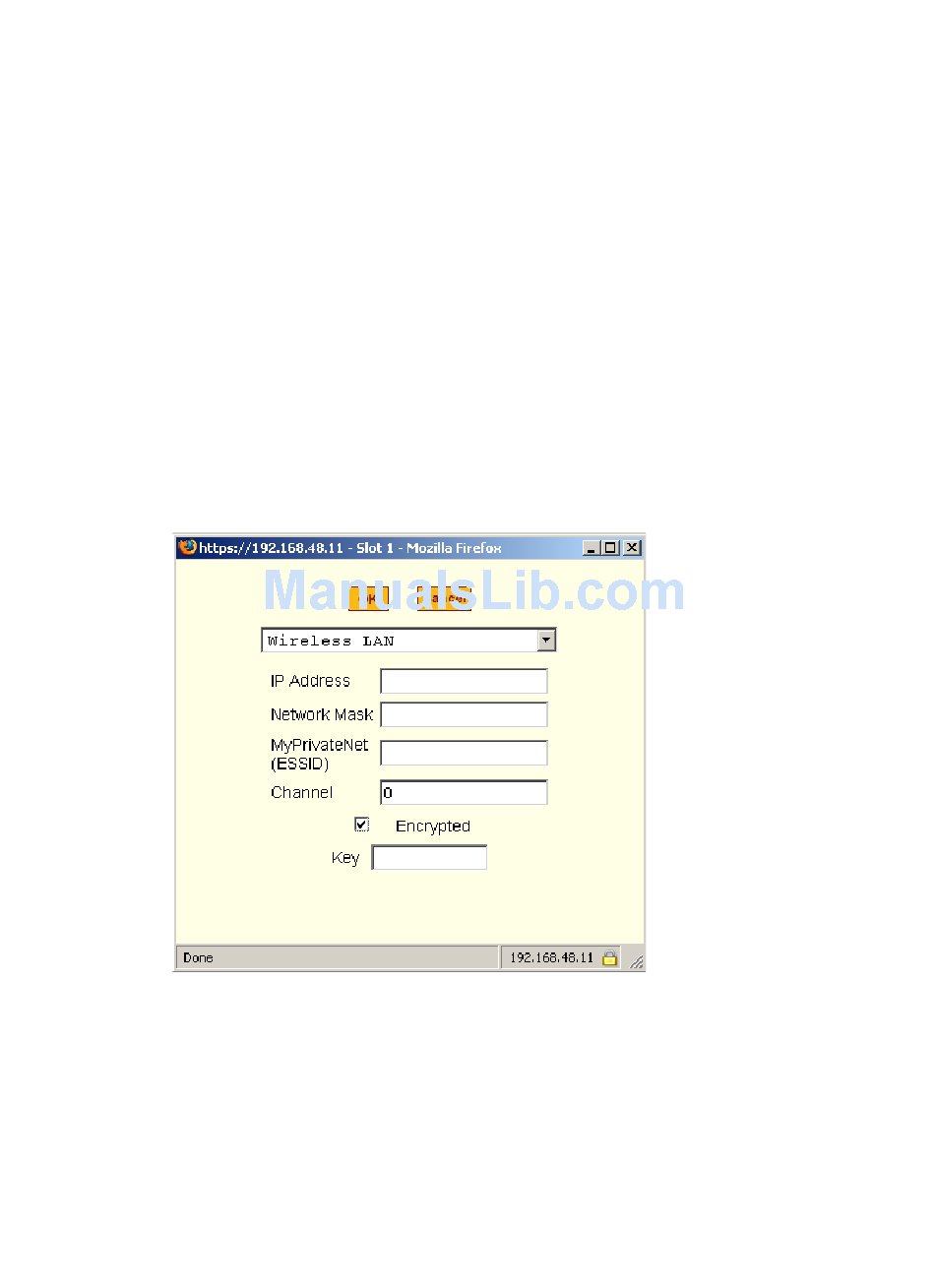

Figure 8-13: Expert > PCMCIA Wireless LAN Card Configuration Dialog
The following table provides a brief description of the fields available in the
Wireless LAN dialog box.
172
The "Enable" checkbox appears on the Slot dialog box.
The "Use for data buffering" checkbox appear on the Slot dialog box.
checked.
Box
