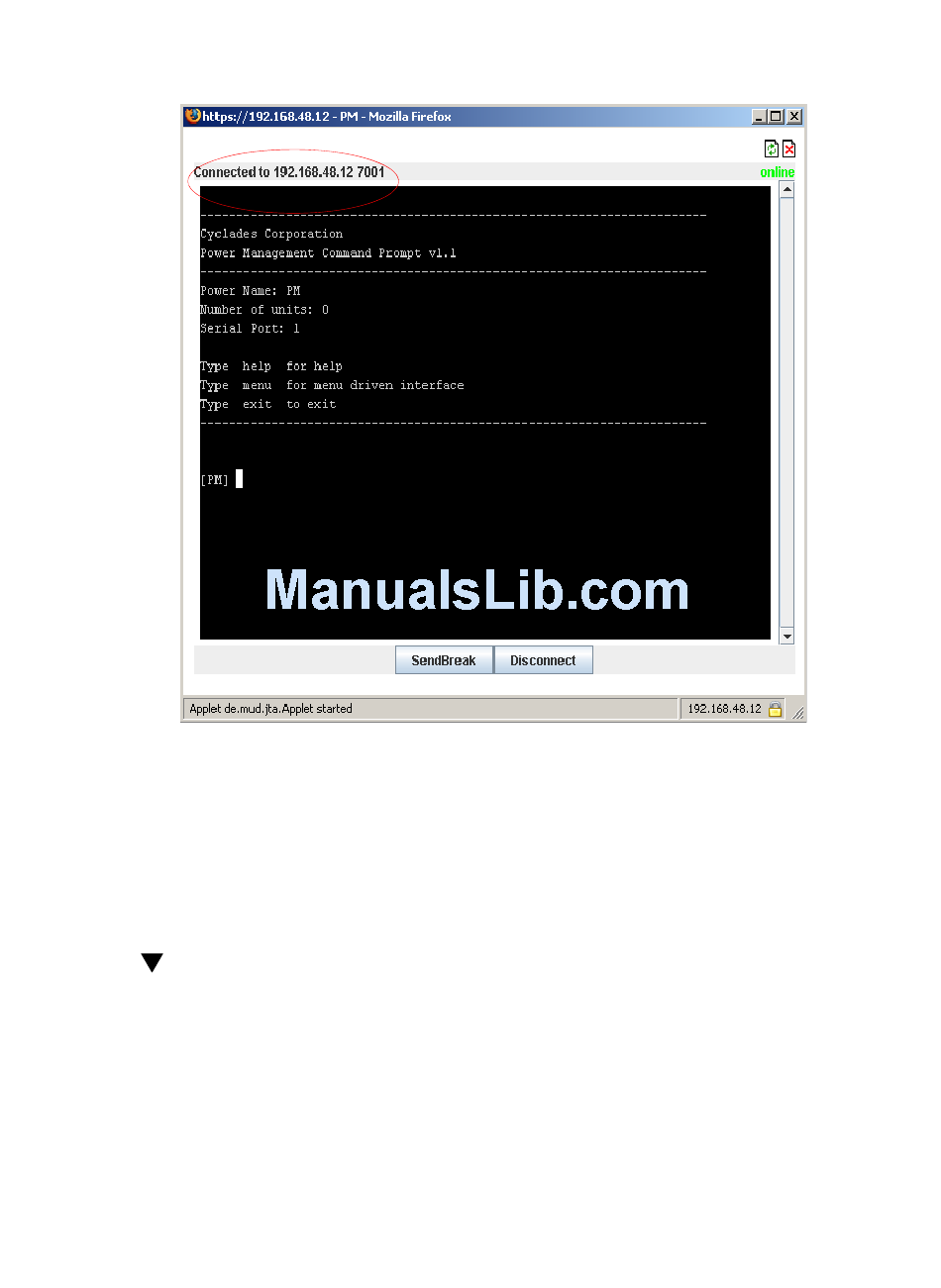

Figure 7-4: Expert > Serial Port Java Applet

To Connect to the CS

This procedure logs you into the CS as a "Regular User" in a SSH session.
1. Go to Applications > Connect in Expert mode.
2. Click the "Connect to CS" radio button.
3. Click the "Connect" button.
BLACK BOX® CS Installation, Administration, and User's Guide
Note the difference between "Connect to CS" and "Serial" connections in
the "Connected to" grey bar circled in red in the above two figures.
If authentication is in effect for the port, you need to supply a username
and password to log into the device.
Applications
119
