Table 10-13: Expert > New/Modify Port Dialog Box Fields; Figure 10-33: Expert > Ports > Virtual Ports > New/Modify Port - Black Box Advanced Console Server User Manual

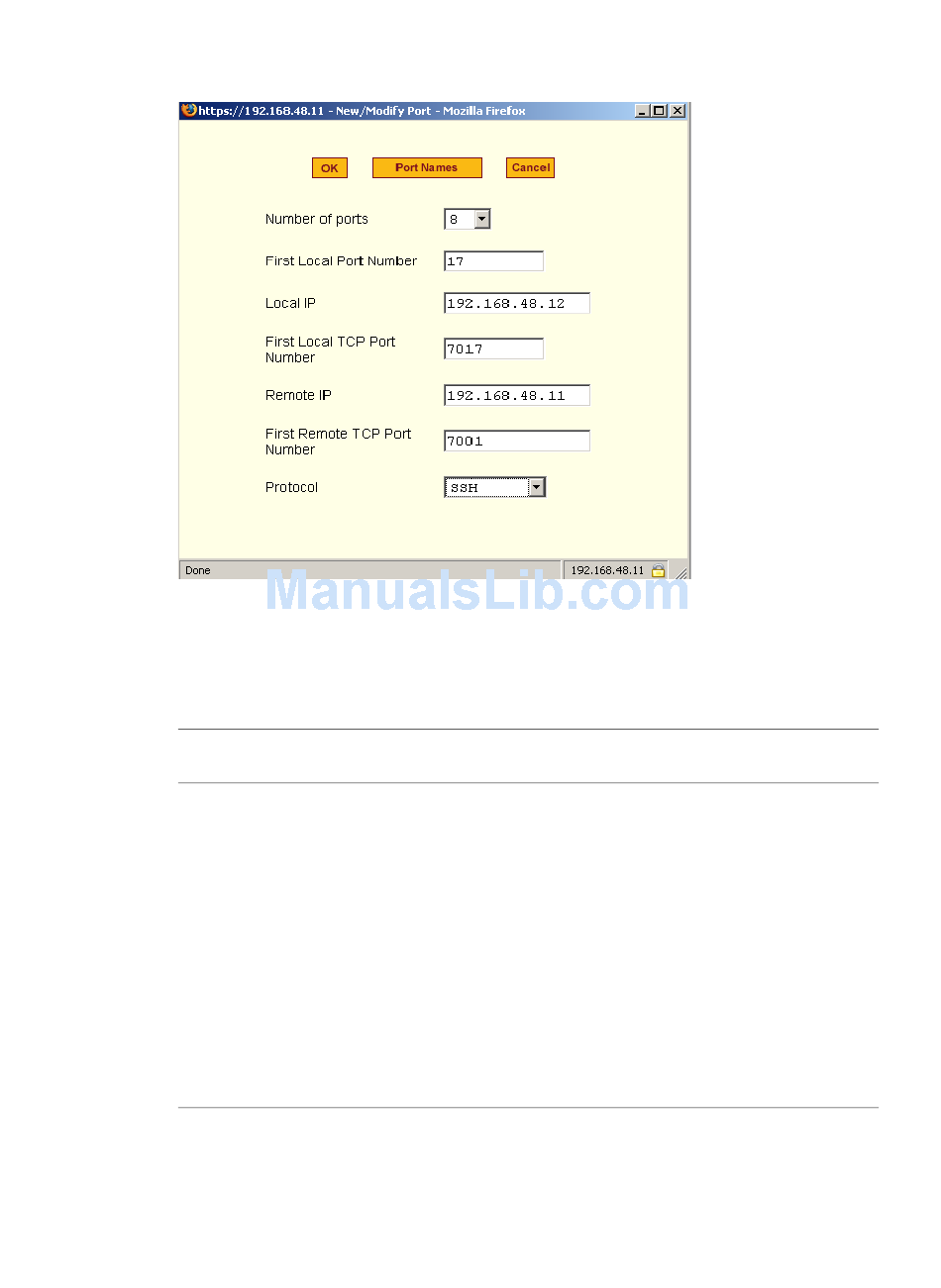

Figure 10-33: Expert > Ports > Virtual Ports > New/Modify Port Dialog Box
The following table describes the fields available in the Virtual Ports New/
Modify Port dialog box.
Table 10-13: Expert > New/Modify Port Dialog Box Fields
Field Name
Number of Ports
First Local Port Number
Local IP
BLACK BOX® CS Installation, Administration, and User's Guide
Definition
Number of ports on each slave unit.
Choices are 1, 4, 8, 16, 32 and 48.
The first unallocated port number for
the slave. For example, if the master
unit has 16 ports, ports 1-16 are
allocated. The "First Local Port
Number" is then 17.
The IP address for the master CS or it can
be the global IP address of the cluster in
the network.
283
