Cisco Traffic Analyzer

Cisco Traffic Analyzer is a version of network top (ntop) software that is modified to support Fibre
Channel and SCSI.
This chapter contains the following sections:
•
•
•
•

Understanding SPAN

The SPAN feature is specific to switches in the Cisco MDS 9000 Family. It monitors network traffic
though a Fibre Channel interface. Traffic through any Fibre Channel interface can be replicated to a
special port called the SPAN destination port (SD port). Any Fibre Channel port in a switch can be
configured as an SD port. Once an interface is in SD port mode, it cannot be used for normal data traffic.
You can attach a Fibre Channel analyzer to the SD port to monitor SPAN traffic.
SD ports do not receive frames, they transmit a copy of the SPAN source traffic. The SPAN feature is
nonintrusive and does not affect switching of network traffic for any SPAN source ports (see

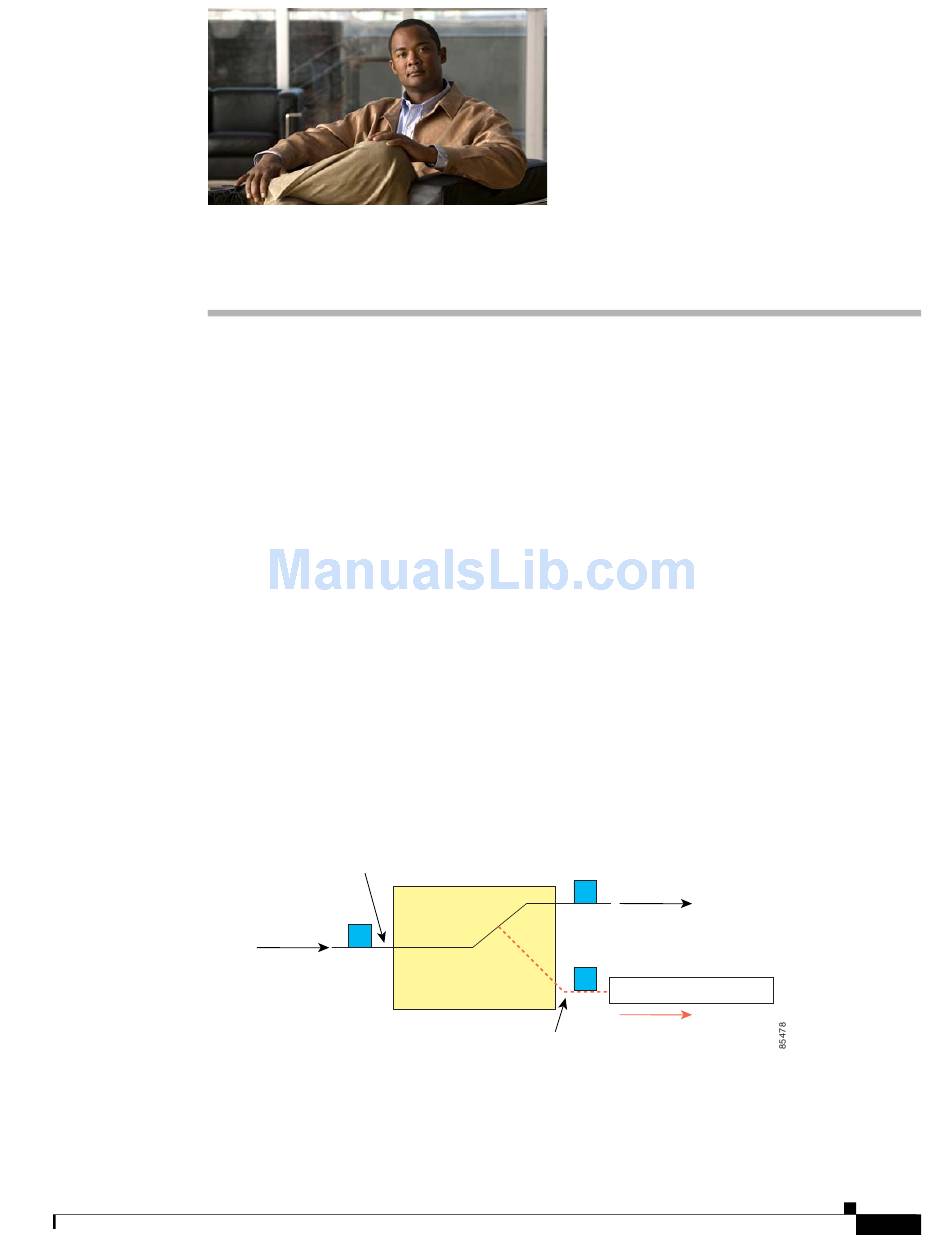

Figure 9-1
Fibre Channel traffic
For information on configuring SPAN, refer to the Cisco MDS 9000 Family CLI Configuration Guide.
OL-17256-03, Cisco MDS NX-OS Release 4.x
Understanding SPAN, page 9-1
Using Cisco Traffic Analyzer with Performance Manager, page 9-2
Installing Cisco Traffic Analyzer, page 9-3
Accessing Traffic Analyzer from Fabric Manager Web Server, page 9-5
SPAN Transmission
SPAN source port
fc3/1
Cisco MDS 9000 switch
C H A P T E R
Fibre Channel traffic
fc1/2
Fibre Channel analyzer
fc9/1
SD port
Cisco MDS 9000 Family Fabric Manager Configuration Guide
9
Figure 9-1).
