Chapter 5 Fabric Manager Client
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m

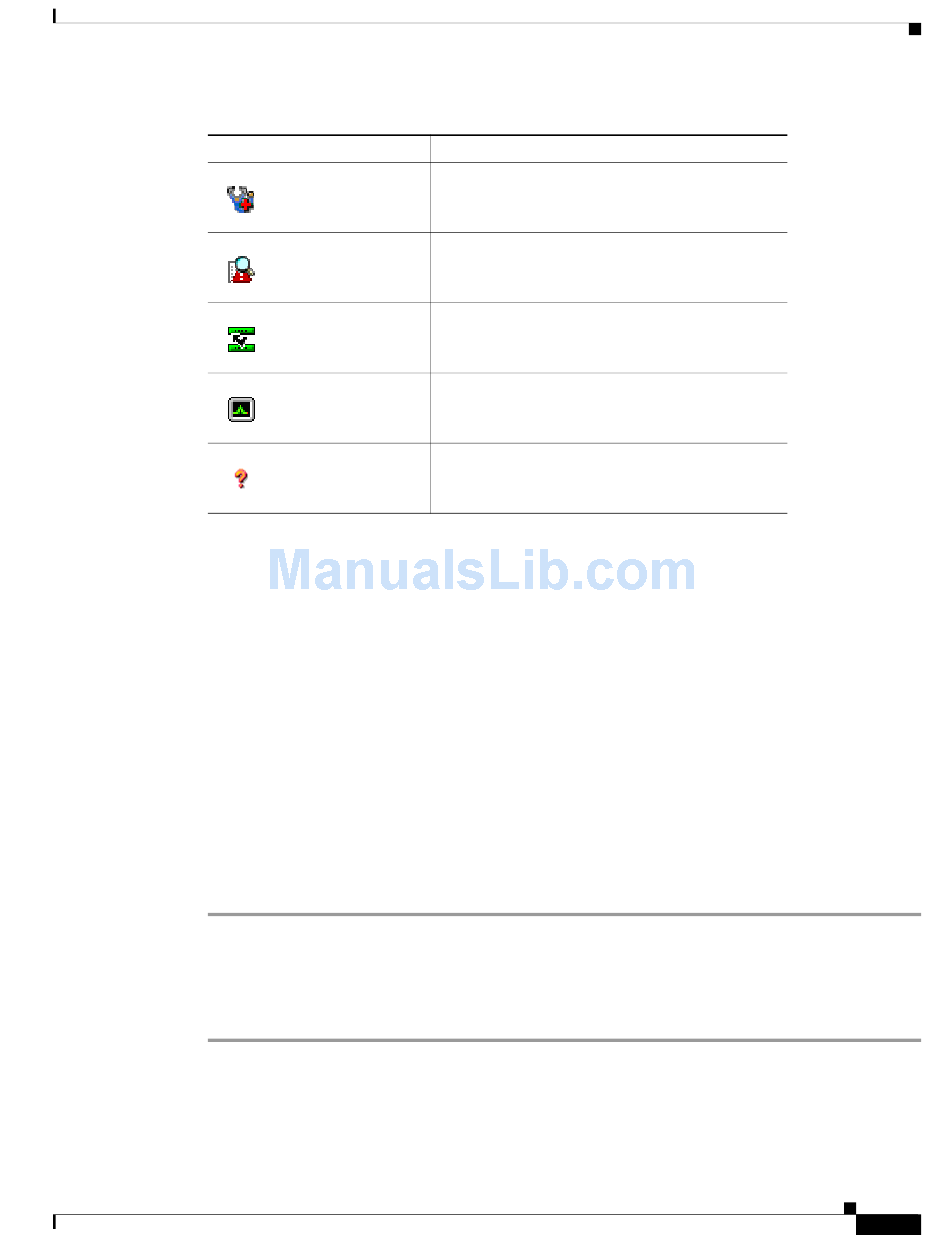

Table 5-3
Icon

Logical Domains Pane

Use the Logical Domains pane to manage attributes for fabrics, VSANs, and zones, and to access
user-defined groups. Under the fabric node, VSANs are ordered by a VSAN ID. The segmented VSANs
are placed under the fabric node. The label next to the segmented VSAN indicates the number of
segments. You can expand a segmented VSAN and the segments under that VSAN. Right-click one of
the folders in the tree and click a menu item from the pop-up menu. You see the appropriate configuration
dialog box.
The default name for the fabric is the name, IP address, or WWN for the principal switch in VSAN 1. If
VSAN 1 is segmented, the default name is chosen from a principal switch with the smallest WWN. The
fabric names you see are as follows:
•
•
•
To change the fabric name using Fabric Manager, follow these steps:
Choose Server > Admin.
Step 1
You see the Control Panel dialog box.
Double-click the fabric name and enter the new name of the fabric.
Step 2
Click Apply to change the name.
Step 3
OL-17256-03, Cisco MDS NX-OS Release 4.x
Fabric Manager Client Main Toolbar (continued)
Fabric <sysName>
Fabric <ipAddress>
Fabric <sWWN>
Fabric Manager Client Quick Tour: Admin Perspective
Description
Performs switch health analysis.
Performs fabric configuration analysis.
Performs end-to-end connectivity analysis.
Monitors ISL performance. Brings up real-time
ISL performance information for all interfaces in
the fabric, in the Information pane.
Shows online help.
Cisco MDS 9000 Family Fabric Manager Configuration Guide
5-19
