Teknion Navigate height-adjustable bench Manual page 47

height-adjustable bench
Section: FRAMES AND WORKSURFACES
Description: SINGLE SIDED HA FRAME
ATTACH STRETCHER

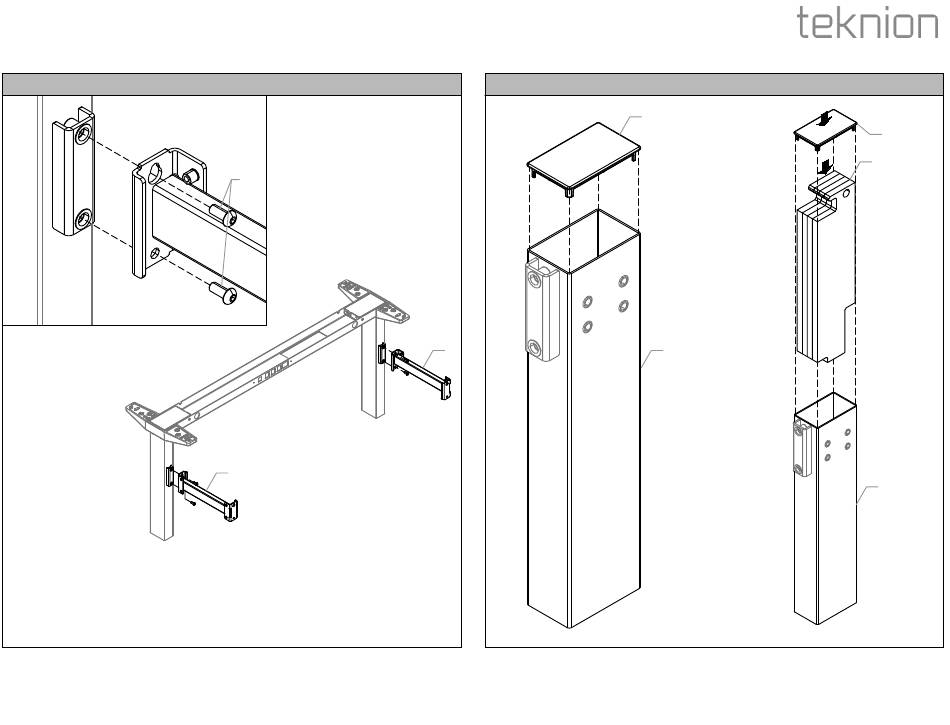

STEP 5: Attach Stretchers to the Frame as shown above and and Secure using the screws
provided.
Installation Guides
A22c
A4
REMOVE LEG COVER & ADD COUNTER WEIGHTS
A4
STEP 6: Remove covers from Rear Legs. Place Counter weights inside Rear Legs for
Counterbalance.
NOTE: For frames with extended electric (9C&9E) that are 30" in depth and 76" or greater in
width, use 4 Tall 1/2"(A13) and 1 Tall 1/8"(A14) Counter Weights per Rear Leg.
Date:
HABN_124
A11
A5
Sep 2023
Page No: 7 of 14
A11
A12
A5
