Teknion Navigate height-adjustable bench Manual page 238

height-adjustable bench
Section: ELECTRICS
Description:
NAVIGATE BASE FEED INSTALLATION
A - Base Feed - End Condition (HNBEBF_E) x1
OR
B - Base Feed - Mid Condition (HNBEBF_M) x1
OR
C - Split Base Feed W/ Bracket - (HNBEBFS_End) x1

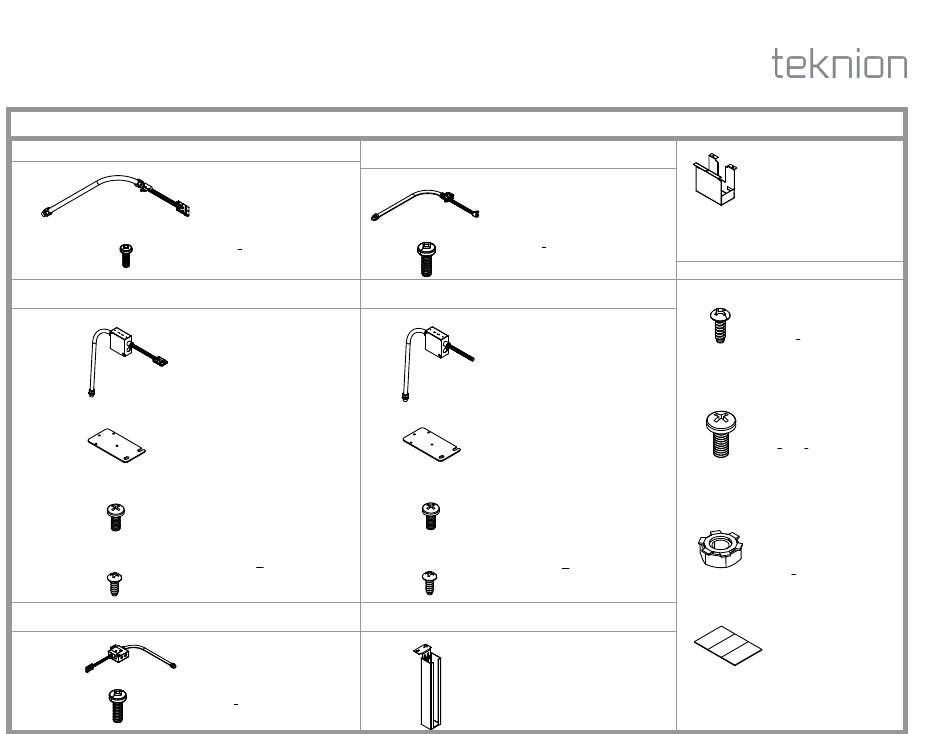

Part and Product Identification
A1 - Base Feed w/ Bracket
(HNBEBF-END) x1
1
A2 - #8x RND ROB Screw (FS8
2
x 1-2 -RRB) x4
B1 - Base Feed - Mid Condition
(HNBEBF-MID) x 1
B2 - Universal Base Feed Mounting
Plate (MPA16-E081) x1
B3 - Machine Screw Pan Head
Cross (FS1-4-20x5-8RPM) x2
7
B4 - #10-16 x Pan Head Screw
16
(FS10-16x7-16QRB) x2
C1 - Base Feed w/ Bracket
(HNBEBFS-END) x1
1
C2 - #8x RND ROB Screw (FS8
2
x 1-2 -RRB) x2
Installation Guides
OR
D - Chicago Base Feed - End Condition (HNBEBFCH_E) x1
D1 - Chicago Base Feed w/
Bracket (HNBEBF-END) x1
1
D2 - #8x
2
x 1-2 -RRB) x2
OR
E - Chicago Base Feed (HNBEBFCH_M) x1
E1 - Chicago Base Feed - Mid
Condition (HNBEBFCH-MID) x1
E2 - Universal Base Feed
Mounting Plate (MPA16-E081) x1
E3 - Machine Screw Pan Head
Cross (FS1-4-20x5-8RPM) x4
E4 - #10-16 x
(FS10-16x7-16QRB) x2
OR
F - Base Feed Cover - (HNBEBC) x1
F1 - Base Feed Cover Assembly -
(MPN09-E135) x 1
RND ROB Screw (FS8
F3 - Hardware Kit for Base Cover (X01-4284) x1
7
Pan Head Screw
16
Date: May 2022 Page No: 2 of 10
HABN_321c Rev. No: 02
F2 - Cover - Base Feed Box
(MPA15-E779) x 1
1
F3A - #8x Tek Screw
2
(FS8 x 1-2 -RRB) x5
1 5
F3B - -20x " Machine Screw,
4 8
Quad Truss (E01-0098) x 2
1
F3C- HN_ -20_ST_ZN_KEP*RR
4
(E03-0059) x 2
F3D - Cork Cushion Pad
(PFCORK-PS125) x 2
